Precision Hydraulic Controllers & Valves Showcase
The Evolution of Custom Hydraulic Control Systems
As global industrial automation scales and municipal water infrastructure faces mounting pressures from urbanization and climate variability, the demand for high-reliability, custom-engineered hydraulic controllers and dynamic fluid regulation units has entered a new epoch.
Empirical Reliability & Precision Manufacturing
Based in Tianjin, KR Valve (Tianjin) Co., Ltd. operates across more than 30 modern production workshops. Our facility integrates precision investment casting, multi-axis CNC machining, and automated epoxy powder coating lines. As a dedicated OEM/ODM manufacturer, we bridge the critical gap between standardized catalog supply and hyper-customized hydraulic control solutions tailored to exact pressure ratings (PN10, PN16, PN25, Class 150/300) and aggressive media profiles.
Total Quality Assurance (TQA) Protocol
Every hydraulic controller, slow-closing check valve, and butterfly actuator produced under our roof undergoes a rigorous 100% pre-shipment inspection suite. This includes shell pressure hydrostatic testing to 1.5x nominal pressure, seat seal leak tests to 1.1x nominal pressure, and dynamic pilot response analysis to guarantee zero failure rates in mission-critical applications.
Global Commercial & Industrial Status of Hydraulic Controllers
The international market for industrial valves and hydraulic control systems is experiencing a structural shift toward intelligent, low-maintenance, and eco-efficient flow architectures.
North America & Western Europe
Driven by strict water conservation mandates and aging municipal pipeline infrastructure, engineering buyers prioritize custom hydraulic controllers equipped with pressure reducing pilot systems (e.g., DN50-DN300 adjustable PRVs) and zero-leakage elastomeric/PTFE seats compliant with AWWA and DIN standards.
Asia-Pacific Rapid Industrialization
Rapid urban growth across Southeast Asia and the Middle East demands high-volume, highly durable sluice gate valves, resilient seat gate valves, and dual-disc check valves (BS5153 standard) capable of withstanding heavy sediment loads and high operating pressures.
Severe Service & Chemical Processing
Chemical processing and seawater desalination plants require extreme chemical resistance. OEMs demand PTFE-lined WCB ball valves and SS316/CF8M flanged controllers designed to resist aggressive acids, chlorinated brine, and severe cavitative wear.
Technical Architecture of Custom Hydraulic Controllers
A comprehensive technical breakdown of how specialized hydraulic control valves achieve dynamic flow equilibrium and surge dampening across varying fluid states.
1. Diaphragm vs. Piston Dual-Chamber Design
Hydraulic controllers rely on differential line pressure to drive internal movement without requiring external electric or pneumatic power. In our 200X Adjustable Pressure Reducing Valves and 100X Remote Control Float Valves:
- Diaphragm Actuation (DN50-DN350): Employs high-strength nylon-reinforced EPDM diaphragms providing high sensitivity to micro-pressure differentials (<0.02 MPa sensitivity).
- Piston Actuation (DN400-DN2000): Features precision-machined GGG40 ductile iron pistons with bronze guides, preventing internal tilting under severe hydraulic thrust forces exceeding 50 Bar.
2. Slow-Closing Anti-Slam Mechanism

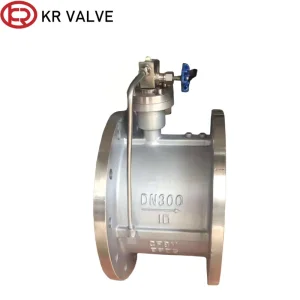

In high-lift pump discharge stations, sudden pump shutdowns induce reverse hydraulic shockwaves. Our specialized OEM SS hydraulic pressure check valves (butterfly slow-closing type) incorporate a micro-adjustable hydraulic damper:
- Fast Closure Phase (First 80% stroke): Eliminates 90% of backflow velocity within 0.5 to 1.5 seconds.
- Slow Closing Phase (Final 20% stroke): Controlled by needle valve oil/water displacement, taking 3 to 20 seconds (field adjustable) to bleed off peak pressure spikes smoothly.
Industry Development Trends in Fluid Control
Key technological trends shaping the manufacturing and deployment of custom hydraulic controllers through 2030.
IoT-Enabled Smart Pilot Integration
Traditional mechanical pilot valves are increasingly augmented with low-power solenoid controls, pressure transducers, and microprocessors. This hybrid approach enables telemetry feedback, remote setpoint adjustment, and automated pressure management in real time.
Advanced Anti-Cavitation Trim
High differential pressure ratios in hydraulic control valves generate intense cavitation that can destroy standard valve seats within months. Next-gen controllers utilize multi-stage slot cages and ceramic/SS316L surfacing to dissipate pressure energy gradually.
Sustainable Low-Torque Actuation

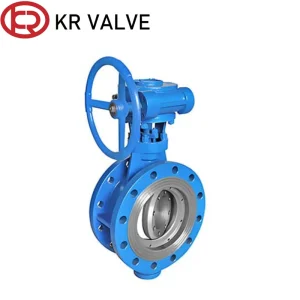

Triple eccentric flanged butterfly valves with metallic hard seals reduce friction during seating and unseating. This design lowers actuator torque requirements by up to 35%, cutting energy consumption and extending seal service life.
Localized Application Scenarios for Hydraulic Controllers
Practical engineering integration across municipal, industrial, chemical, and agricultural flow networks.
Scenario A: Municipal Water Supply Pressure Zoning

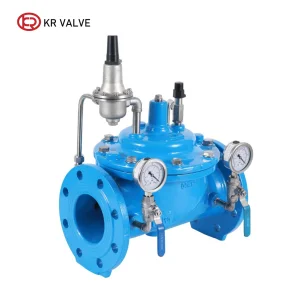

In mountainous or high-rise urban zones, static water pressure at lower elevations often exceeds safe piping limits (0.8+ MPa). Installing KR 200X Adjustable Pressure Reducing Valves automatically clamps downstream pressure to a static 0.3 MPa, regardless of fluctuating upstream flow rates or inlet pressures.
- Primary Valve: 200X Hydraulic Control Valve (DN100 - DN600)
- Primary Material: Ductile Iron GGG40 + NSF-61 Non-Toxic Epoxy Coating
- Benefit: Eliminates pipe burst risks and reduces background leakage by up to 30%.
Scenario B: Corrosive Wastewater & Chemical Slurry Lines
Industrial effluent processing demands absolute resistance against aggressive acids, solvents, and suspended abrasive solids. We engineer customized PTFE Lined WCB Ball Valves and Wafer Knife Gate Valves featuring 316SS polished discs and replaceable EPDM/PTFE seats.
- Primary Valves: PTFE Lined Ball Valve & Ductile Iron PN16 Knife Gate Valve
- Customization Options: Pneumatic double-acting actuation with limit switches
- Benefit: 100% bubble-tight shut-off under severe corrosive conditions.
Technical Comparison of Core Valve Controller Types
Selection criteria for system designers, EPC project directors, and valve procurement managers.
| Controller / Valve Category | Standard Sizes | Pressure Class | Primary Body Material | Sealing Technology | Optimal Application Scenario |
|---|---|---|---|---|---|
| Hydraulic PRV (200X Series) | DN50 - DN800 | PN10 / PN16 / PN25 | Ductile Iron GGG40 / WCB | NBR / EPDM Diaphragm + Stainless Trim | Pressure zone reduction in water distribution |
| Slow-Closing Hydraulic Check | DN80 - DN1200 | PN16 / PN25 / Class 150 | Ductile Iron / Stainless Steel | Bronze / SS304 Surfacing + Hydraulic Cylinder | High-lift pump station surge & water hammer control |
| PTFE Lined Flanged Ball Valve | DN50 - DN300 | PN10 / PN16 / Class 150 | WCB Cast Steel / CF8 | Full Molded PTFE / F46 Lining | Highly corrosive chemical transmission pipelines |
| Triple Eccentric Butterfly Valve | DN100 - DN2000 | PN16 - PN40 / Class 300 | WCB / CF8M Stainless | Multi-layer Hard Metal Seal (SS316 + Graphite) | High-temperature steam, gas & thermal water lines |
| Dual Disc Check Valve (BS5153) | DN40 - DN700 | PN10 / PN16 | Cast Iron GG25 / GGG40 | CF8 Stainless Disc + EPDM Seat | Compact non-return installation in pump manifolds |
| Wafer Knife Gate Valve | DN50 - DN600 | PN10 / PN16 | Ductile Iron / WCB | Replaceable Metal or EPDM Seat | Mining slurry, paper pulp & municipal sewage lines |
Technology Roadmap & Future Outlook
Strategic milestones guiding KR Valve’s engineering roadmap for next-generation smart hydraulic controllers.
Self-Powered Pilots
Integrating inline micro-hydro turbine generators within pilot circuits to power local sensors without external wiring.
Composite Coatings
Adoption of nanostructured fluorocarbon and ceramic-matrix armoring for zero cavitation erosion over 15-year lifespans.
AI Cavitation Analytics
Deploying acoustic emission AI sensors directly on controller bodies to predict cavitation onset and auto-adjust pilot trim.
Autonomous Networks
Fully autonomous mesh-connected hydraulic valve networks that self-balance municipal pressure topologies globally.
Macro Industry Solutions & OEM Customization
How KR Valve executes tailored valve solutions for EPC contractors and global brand partners.
1. Specification Engineering
Our application engineering team analyzes flow rates, pressure differentials, fluid properties, and installation geometry to deliver fully compliant CAD, 3D STEP models, and detailed specification submittals within 24 hours.
2. Precision Casting & Metallurgy
We work with high-grade materials including Ductile Iron GGG40/GGG50, WCB Cast Steel, Stainless Steel CF8/CF8M, and Hastelloy. Chemical composition is verified via spectrometer testing for every heat batch.
3. Consolidated Global Supply Chain
Avoid managing multiple vendors for gate valves, strainers, and hydraulic control valves. We consolidate your complete valve package under one roof, providing unified quality control and export documentation.
Hydraulic Controllers & Valve FAQ
In-depth answers to common questions from fluid control engineers, EPC specifiers, and procurement managers.
What defines a custom hydraulic controller, and how does it differ from a standard valve actuator?
How does the 200X Adjustable Pressure Reducing Valve maintain constant downstream pressure?
When should I specify a double eccentric butterfly valve over a concentric model?
What are the key advantages of slow-closing hydraulic check valves in pump protection?
What material selections are best suited for highly corrosive chemical applications?
Can KR Valve manufacture custom non-standard valves based on engineered project drawings?
What quality testing standards are performed prior to export dispatch?
What is the typical lead time for custom hydraulic controller manufacturing orders?
Additional Industrial Valve & Controller Products
Ready to Engineer Custom Hydraulic Controllers for Your Pipeline Network?
Consult directly with our fluid control specialists to receive technical datasheets, CAD models, flange submittals, and factory-direct pricing for your procurement projects.
