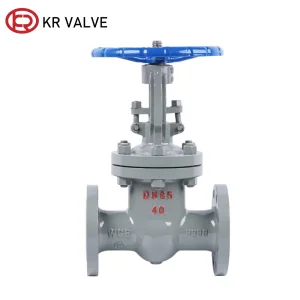

Wholesale High-Temperature WCB Metal Seated Gate Valve ANSI 150LB from China Suppliers & Factory - DN50-DN1000 Manufacturers, Factories
View Technical SpecsArchitectural Dynamics of U-Type Butterfly Valve Manufacturing
Evaluating structural integrity, seat vulcanization mechanics, and hydro-dynamic efficiency in high-pressure fluid conveyance systems.
In modern industrial fluid transport, selecting the appropriate valve architecture dictates the systemic operational expenditure (OpEx), maintenance frequency, and line safety margin. The U-type butterfly valve (frequently designated as a U-section or short-series double flanged butterfly valve) represents a paramount engineering synthesis. Positioned strategically between lightweight wafer configurations and heavy-body double-flanged variants, the U-type valve integrates full flange drilling patterns aligned with EN 1092-2, ASME B16.5, and BS 4504 while maintaining a compact face-to-face dimension per EN 558-1 Series 20 (or ISO 5752 Series 20).
Mechanical Stress Redistribution
Unlike standard wafer valves that depend on long through-bolts susceptible to thermal relaxation, U-type body geometries accept independent flange bolting on both upstream and downstream sides. This isolates the elastomer seat from axial pipe stress and thermal expansion torque distortion.
Dead-End Isolation Capability
With integrated tapped or clearance bolt holes surrounding the outer perimeter, a U-type supplier manufactures bodies capable of full dead-end service rating. Downstream piping can be safely dismantled under operating pressure without line pressure loss.
Optimized Hydro-Flow Coefficient ($C_v$)
Engineered disc profiles feature streamlined hydrofoil contours. By minimizing disc thickness while maintaining structural yield limits under PN16/PN25 delta-P conditions, turbulence zones and cavitation indices are dramatically suppressed.
Polymer Elastomer Dynamics & Vulcanization Mechanics
The operational longevity of a U-section resilient seated valve depends fundamentally upon polymer chemistry and seat retention architecture. Modern high-capacity factories utilize two distinct seat mounting topologies:
- Bonded/Vulcanized Elastomeric Seats: High-temperature rubber injection molding directly fuses EPDM, NBR, or FKM onto the internal body bore. This eliminates seat movement, lowers operating torque by 15-20%, and prevents moisture infiltration between elastomer and body casting—averting internal crevice corrosion.
- Dovetail Retained Replaceable Liners: Engineered for severe chemical or hygienic processing where field maintenance is preferred. High-density PTFE liners molded over EPDM backings provide universal chemical inertness coupled with resilient memory retention.
| Valve Architecture Type | Face-to-Face Standard | Dead-End Rating | Weight Efficiency | Pipe Stress Resistance |
|---|---|---|---|---|
| U-Type Flange (Short Series) | EN 558-1 Series 20 / ISO 5752 | Full Rated Pressure | High (30% lighter than Double Flange) | Superior (Isolated Bolting) |
| Wafer Type | EN 558-1 Series 20 | Not Recommended | Maximum (Lightest) | Moderate (Through-bolt dependency) |
| Lug Type | EN 558-1 Series 20 | Full Rated Pressure | Medium | High (Individual Tapped Lugs) |
| Double Flanged (Long Series) | EN 558-1 Series 13 / 14 | Full Rated Pressure | Heavy (Maximum Cast Weight) | Maximum (Heavy Body Cavity) |
U-Type Valve Technology Roadmap & Future Outlook
Transitioning from passive flow control components to intelligent, sensor-integrated diagnostic nodes within smart grid networks.
1. IoT Digital Twin Integration
Integration of piezoelectric micro-sensors within the seat ring and stem seal packing. Real-time telemetry broadcasts seat compression wear, stem torque spikes, ambient thermal variance, and cycle counts directly to SCADA frameworks via HART, Modbus, or IO-Link protocols.
2. Advanced Polymer Tribology
Development of nano-composite fluoropolymers and peroxide-cured EPDM infused with self-lubricating graphite nanoparticles. This advance increases operational cycle life beyond 100,000 continuous full-stroke operations without elastomer breakdown or seal tearing.
3. Carbon-Neutral Manufacturing
Adoption of electric induction melting furnaces, 100% sand reclamation systems, and zero-VOC waterborne epoxy resin protective coatings (RAL 5005 / RAL 5017 compliant), matching stringent European ESG manufacturing mandates.
Macro Industrial Solutions across Vital Sectors
Tailored trim configurations engineered to combat severe erosion, cavitation, corrosive media, and high-frequency actuation.
Municipal Water Distribution & Desalination Plants
Water transport lines demand zero-head-loss isolation and WRAS/NSF-61 certified non-toxic sealing. For seawater reverse osmosis (SWRO) systems, U-type manufacturers furnish Duplex SS (2205) or Super Duplex (2507) discs paired with high-grade EPDM seats, resisting pitting corrosion driven by high chloride concentrations.
Chemical Processing & Corrosive Fluid Transport
Handling aggressive reagents (hydrochloric acid, caustic soda, organic solvents) requires fully encapsulated split-body U-type designs. High-thickness PFA/PTFE linings isolate the metal body casting entirely from fluid contact, ensuring bubble-tight shutoff under harsh chemical exposure.
HVAC, District Cooling & Energy Networks
In high-rise commercial structures and urban district cooling loops, modulating U-type valves equipped with motorized gearboxes or smart pneumatic positioners maintain exact flow balance. Compact short-series dimensions save plant room footprint while handling differential pressures up to 16 Bar.
Slurry Management & Industrial Effluent Control
Abrasive slurry media quickly degrades standard gate or globe valves. U-type concentric butterfly valves equipped with polished SS316 discs, Stellite anti-abrasion edge overlays, and heavy-duty EPDM/NBR liners self-clean during rotation, dislodging suspended solids upon closure.
China Industry 4.0: Supply Chain Resilience & Manufacturing Precision
Combining automated resin sand casting, CNC multi-axis machining, and automated pressure testing to deliver zero-defect industrial valves.
The global reputation of Chinese valve manufacturing has evolved from volume production to high-precision, vertically integrated engineering excellence. As a dedicated U-type supplier & factory, modern Chinese production facilities operate under strict ISO 9001:2015, ISO 14001, and ISO 45001 quality systems. This modernization ensures complete traceability from raw iron ingot to final hydro-test certification.
Automated Foundry & Metallurgical Control
Automated Disamatic moulding lines ensure uniform wall thickness and zero internal porosity in Ductile Iron (QT450-10 / GGG40) and Cast Steel (WCB) castings. Direct-reading optical emission spectrometers verify chemical composition prior to every pour.
5-Axis CNC Shaft & Seat Machining
Key dimensions, including shaft bores, disc sealing edges, and top flange mounting pads (ISO 5211 standard), are machined in a single setup using multi-axis CNC machining centers to maintain concentricity tolerances within ±0.01mm.
100% Digital Hydrostatic Testing
Every single valve undergoes shell testing (1.5x PN) and seat leakage testing (1.1x PN) per ISO 5208 / API 598 standards. Automated pressure sensors log hold times and zero-pressure drop verification digitally.
Localization Support, Regulatory Certifications & Global Engineering
Harmonizing international design codes to streamline project approval, submittal reviews, and cross-border installation compliance.
Compliance Certifications
Factory production lines hold active certifications for major international markets: CE-PED (Pressure Equipment Directive 2014/68/EU), WRAS for UK potable water systems, DVGW for European gas and water, ATEX Directive 2014/34/EU for explosive environments, and API 609 for heavy energy networks.
Customized Engineering (OEM/ODM)
Recognizing that engineering projects require specific dimensions, our engineering office provides tailored face-to-face dimensions, non-standard flange bolt drilling (JIS 10K, KS B 2333, AS 4087), specialized body painting colors (RAL system), and private branding/laser engraving services.
On-Site Field Support & Logistics
To support EPC contractors, factory-trained engineers offer remote digital installation supervision, torque calculation charts, custom gasket alignment guides, and rapid dispatch of complete replacement seal kits and stem assemblies from regional distribution hubs.
Global Enterprise Procurement Matrix & Buyer Intent Analysis
Optimizing Total Cost of Ownership (TCO), Request for Quotation (RFQ) clarity, and international logistics risk management.
For international procurement directors, supply chain managers, and chief engineers, evaluating a U-type supplier & factory requires analyzing parameters beyond unit FOB price. Evaluating Total Cost of Ownership (TCO) demands assessing long-term durability, structural safety, lead-time reliability, and vendor responsiveness.
| Procurement Parameter | Engineering Requirement | Risk Mitigation Strategy | Factory Optimization Advantage |
|---|---|---|---|
| Material Authentication | En 10204 3.1 Material Test Certificate | Spectrographic verification of chemistry | Traceable heat numbers cast on body |
| Dimensional Precision | Flange drilling per ASME B16.5 / EN 1092-2 | 100% CMM inspection of top flange & face | Eliminates site misalignment delays |
| Actuation Compatibility | ISO 5211 Direct Mounting Top Flange | Standardized square stem & keyway layout | Supports universal electric/pneumatic fit |
| Freight Protection | VCI anti-corrosion wrap & wooden cases | Seaworthy packaging per ISPM 15 | Prevents rust & seal degradation in transit |
Technical & Procurement FAQ
Direct technical answers addressing key questions asked by valve design engineers and international buyers.
Comprehensive Valve & Flow Control Range
Explore our full line of gate, check, ball, and control valves manufactured for international municipal and industrial systems.
Custom 4 Inch Dual Plate Wafer Lug Check Valve - China Suppliers & Factory for High-Quality Flow Control Components Supplier, Manufacturer
View Technical Specs
Wholesale China Suppliers Factory One Way Valve, Ductile/Cast Iron Body CF8 Disc, Wafer Type, DN40-DN700, PN6/PN25 Suppliers, Manufacturers
View Technical Specs
Wholesale China Rising Stem Gate Valve - Ductile Iron Body with EPDM Seat | Suppliers & Factory Options Available Suppliers, Factory
View Technical Specs
OEM China WCB Split Body Full PTFE Lined Concentric Butterfly Valve Suppliers - High Quality Factory Direct Factories, Factory
View Technical Specs

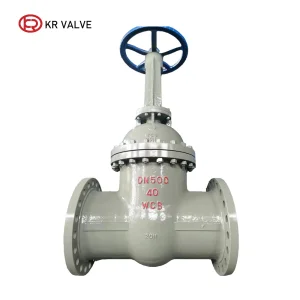

Custom Big size gate sluice valve WCB material PN64 DN500 Manufacturers, Factory
