Industrial Flow Control Authority

OEM Triple Offset Valve Butterfly Supplier & Factories

Next-Generation Zero-Leakage Metal-Seated Butterfly Valves Engineered for Extreme Cryogenic, High-Temperature, and Severe Industrial Applications Worldwide.

Primary Product Series

High-Performance OEM & Heavy-Duty Valves

Explore our certified flow control series engineered to DIN, ANSI, and BS standards for severe industrial pipelines.

Custom Ductile iron ball type non return valve

Custom Ductile iron ball type non return valve DIN standard Suppliers, Manufacturer

View Technical Details

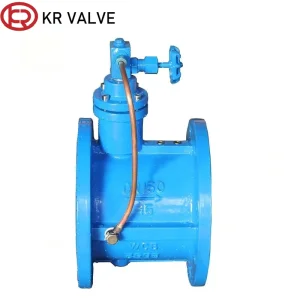

Wholesale WCB micro resistance slow closing backflow preventer

Wholesale WCB micro resistance slow closing backflow preventer valve Manufacturer, Factories

View Technical Details

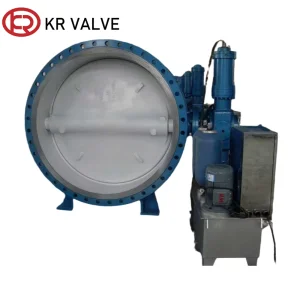

Heavy Hammer Hydraulic Butterfly Valve

Wholesale Heavy Hammer Hydraulic Butterfly Valve Eccentric Type - China Suppliers & Factory, D342X Series

View Technical Details

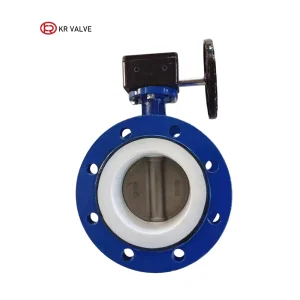

Concentric Flange Butterfly Valve RPTFE

OEM China Suppliers Factory Concentric Flange Butterfly Valve with RPTFE Seal for Corrosive Substances

View Technical Details

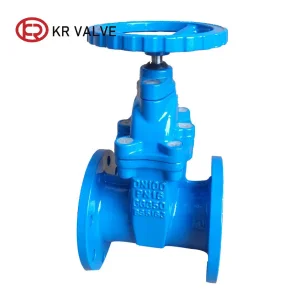

BS5163 Resilient Seated Gate Valve

Custom China BS5163 Resilient Seated Gate Valve with Brass Stem Nut - OEM/ODM Solutions

View Technical Details

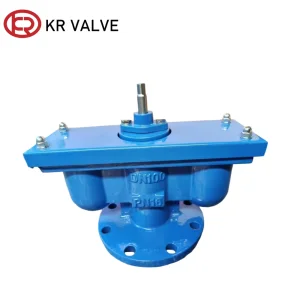

Double Port Air Evacuation Valve

Custom Double Port Air Evacuation Valve - Automatic Release Air | China Suppliers and Factory

View Technical Details

Wholesale Double port air evacuation valve

Wholesale Double port air evacuation valve automatic release air Manufacturer, Factory

View Technical Details

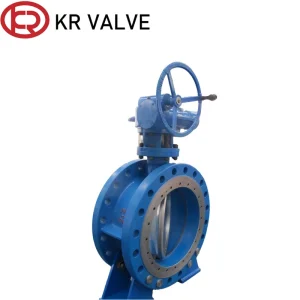

Big size WCB triple offset butterfly valve

Custom Big size WCB triple offset high performance flange butterfly valve Supplier, Manufacturer

View Technical Details
Technical Monograph

Kinematic Precision & Triple Offset Geometry Mechanics

An in-depth analysis of zero-friction seating dynamics, torque-seated tightness, and metallurgical resilience in Triple Offset Butterfly Valves (TOBV).

The Engineering Evolution: From Elastomeric Seals to Triple Offset Kinematics

In modern industrial process engineering, standard concentric and double eccentric butterfly valves often hit performance ceilings under high-pressure differential ($\Delta P$), thermal shock, or corrosive severe service. Standard soft-seated valves suffer rapid degradation above 200°C, while traditional double-offset metal seats rely on mechanical interference that induces heavy seat wear, high operating torque, and eventual seat galling. The Triple Offset Butterfly Valve (TOBV) solves this fundamental tribological flaw through pure geometric transformation.

1st Offset: Shaft Eccentricity

The shaft center is offset behind the plane of the valve seat sealing surface. This position enables a continuous, uninterrupted 360-degree sealing boundary across the entire circumference without sacrificing structural disc integrity.

2nd Offset: Centerline Displacement

The stem axis is displaced laterally from the pipe and valve bore centerline. This displacement allows the disc to stroke clear of the seat within degrees of rotation, completely eliminating seat rubbing and friction during 90% of travel.

3rd Offset: Inclined Conical Axis

The cone axis of the seat surface is inclined relative to the pipe centerline. This geometry changes the contact vector from rotational rubbing to a direct "cam-action" wedging. Contact occurs only at the final point of closure—achieving 100% friction-free stroke.

API 598
Zero-Leakage Sealing Standard
-196°C to 815°C
Extreme Temperature Envelope
Class 150-1500
Pressure Class Capability
ISO 15848-1
Fugitive Emissions Class AH
Performance Matrix

Comparison: Triple Offset vs Traditional Valve Architecture

Evaluating mechanical efficiency, life-cycle expenditure, footprint, and sealing performance across critical plant environments.

Performance Parameter Triple Offset Butterfly Valve (TOBV) Double Offset Butterfly Valve Conventional Gate Valve Heavy-Duty Globe Valve
Sealing Mechanism Torque-Seated Cam Action Position-Seated / Soft Interference Wedge Friction Contact Stem Plug Compression
Seat Friction Zero Friction (Contact at closure) Moderate (Rubbing during 15° stroke) Severe (High friction across stroke) Minimal (Throttling wear)
Tightness Standard ISO 5208 Rate A / API 598 (Zero) ANSI Class IV / VI (Soft) API 598 (Metal-to-Metal) ANSI Class IV / V
Weight & Envelope Ultra-Compact (Wafer/Lug/Flange) Compact Heavy / Massive Headroom Extremely Heavy / Bulk Body
Fugitive Emissions ISO 15848-1 Class AH Certified Standard Packing Class B High stem wear risk High stem wear risk
Cryogenic Capabilities Excellent (-196°C with Ext. Stem) Limited by elastomeric seal Thermal binding risk Good but heavy thermal mass
Macro Economic Drivers

Global Commercial Landscape & Industry Trends

The strategic migration towards decarbonization, LNG infrastructure growth, and modern process automation is reshaping global demand for OEM Triple Offset Butterfly Valves.

Energy Transition & LNG Expansion

Global liquefaction terminals, LNG carriers, and regasification plants rely heavily on fire-safe, cryogenic-certified TOBVs. As nations transition from coal to natural gas and green hydrogen, zero-leakage isolation under thermal cycling is imperative.

Fugitive Emission & ESG Compliance

Environmental regulations (such as EPA Method 21 and EU Methane Regulations) require industrial processors to eliminate volatile organic compound (VOC) emissions. Advanced live-loaded packing designs in OEM TOBVs deliver certified Class AH leakage rates.

Digitalization & Smart Actuation Integration

Modern OEM supply chains are incorporating IoT-enabled smart positioners, predictive friction analytics, and partial stroke testing (PST) modules directly onto TOBV top-works for real-time health monitoring in safety instrumented systems (SIS).

Field Application Engineering

Localized Heavy-Industry Application Scenarios

Specific field configurations where custom OEM Triple Offset Butterfly Valves deliver superior operational longevity.

Offshore FPSO & Marine Systems

Duty: High-salinity seawater lift, firewater mains, and crude oil isolation.
Solution: Super Duplex (2507) body and disc with Stellite hard-faced metal seats to combat chloride pitting, erosion-corrosion, and structural marine vibrations.

Refining Hydrocrackers & Catalytic Reforming

Duty: High-temperature hydro-processing up to 650°C under hydrogen embrittlement threat.
Solution: Cast Stainless Steel (CF8M/CF3M) with Inconel 718 laminated seal rings, engineered with thermal expansion clearance gaps to prevent valve stem binding.

District Heating & High-Pressure Steam

Duty: Municipal superheated steam headers and geothermal energy loops.
Solution: Carbon Steel (WCB) body with solid metal-to-metal seating, providing bi-directional bubble-tight shutoff under severe thermal shock cycles.

Future Roadmap

OEM Manufacturing Technology Roadmap

Next-generation metallurgical research, additive manufacturing, and precision testing shaping the future of industrial valve engineering.

Additive Laser Cladding

Direct Energy Deposition (DED) laser cladding allows ultra-precise deposition of Stellite #6 and Hastelloy materials on valve body seats, enhancing erosion resistance while reducing material mass.

Cryogenic Testing Facilities

In-house liquid nitrogen immersion test pits evaluating zero-leakage integrity down to -196°C according to BS 6364 and MESC SPE 77/200, guaranteeing field readiness for LNG terminals.

Computational Fluid Dynamics (CFD)

Advanced FEA and CFD flow modeling optimize disc profile geometries, lowering overall flow resistance ($Cv$ dynamic gain) and reducing cavitation intensity during throttling control duties.

Technical Knowledge Hub

Frequently Asked Questions by Valve Engineers

Expert answers addressing design selection, material compatibility, and OEM custom engineering requirements.

What makes a Triple Offset Butterfly Valve (TOBV) bi-directionally bubble-tight?
Unlike single or double eccentric valves that rely on interference seating, a TOBV utilizes its inclined conical 3rd offset geometry to create a torque-seated mechanical seal. When closed, mechanical torque applied by the actuator forces the dynamic laminated metal seal ring uniformly against the body seat around the entire 360° perimeter. This metal-to-metal wedge fit stops flow in both preferred and reverse flow directions without seat deformation.
How do laminated seats compare to solid metal seats in TOBV construction?
Laminated Seats: Composed of alternating layers of high-grade stainless steel (e.g., SS316L) and flexible graphite or PTFE. The graphite layers provide resilience and thermal elasticity, absorbing minor pipeline misalignments to achieve API 598 zero-leakage.
Solid Metal Seats: Consist of a solid alloy ring (e.g., Inconel or Stellite-faced SS). Used primarily in severe high-temperature abrasive slurries where flexible laminates might suffer physical erosion or chemical wash-out.
What parameters are required when placing an OEM Triple Offset Valve manufacturing order?
To ensure full compliance with engineering procurement standards, please provide:
  1. Nominal Pipe Size (NPS / DN) and Pressure Rating (Class / PN).
  2. Flow Medium, Operating & Maximum Temperatures, and Differential Pressure ($\Delta P$).
  3. Body & Trim Metallurgy (e.g., WCB, CF8M, Duplex, Monel, Hastelloy).
  4. End Connections (Wafer, Lug, Double Flanged, Butt-Weld).
  5. Certification & Testing Requirements (API 607 Fire-Safe, ISO 15848-1 Fugitive Emissions, NACE MR0175).
Why are extended bonnets required on TOBVs for cryogenic service?
In cryogenic service (e.g., LNG at -196°C), an extended bonnet creates a gas column buffer between the cold cryogenic process fluid in the valve pipeline body and the valve stem packing box. This standoff distance preserves stem packing temperature above freezing points, preventing gland seal icing, packing hardening, and hazardous fugitive stem leaks.
Can Triple Offset Butterfly Valves be utilized for flow throttling and control?
Yes. While TOBVs excel at tight shutoff isolation, their friction-free opening characteristics provide control curves similar to equal-percentage characteristics from 20° to 75° of disc rotation. Combined with smart electro-pneumatic positioners, TOBVs offer reliable throttling capabilities for high-volume pipelines.
Factory Catalogue Showcase

Complete Flow Control Solutions & Factory Direct Supply

Discover our full portfolio of industrial check, gate, concentric, and high-performance eccentric butterfly valves.

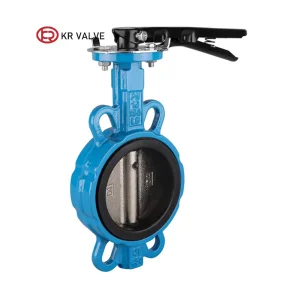

Wafer Butterfly Valve DN100

OEM China Suppliers Factory Wafer Butterfly Valve DN100 - Concentric Resilient Seated, PN6/PN10/PN16

View Technical Details

Double Port Air Evacuation Valve Pipeline

Custom Double Port Air Evacuation Valve - Automatic Release Air | China Suppliers & Factory for Pipeline Solutions

View Technical Details

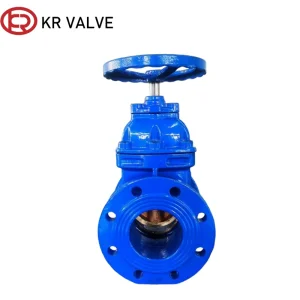

GGG40 Bronze seat hard seal gate valve

Wholesale GGG40 Bronze seat hard seal flange gate valve Supplier, Manufacturer

View Technical Details

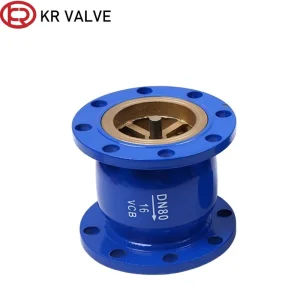

WCB Silent One Way Valve PN25

Wholesale WCB Silent One Way Valve PN25 - High Pressure Carbon Steel Check Valve from China Suppliers

View Technical Details

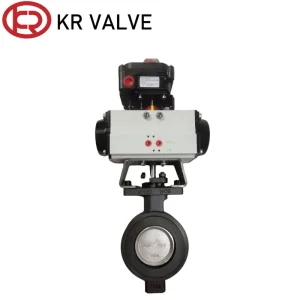

Pneumatic Triple offset butterfly valve with positioner

OEM Pneumatic Triple offset high performance Butterfly Valve With Positioner Manufacturer, Factory

View Technical Details

Double Eccentric Butterfly Valves SS304

Wholesale Double Eccentric Butterfly Valves Surfacing SS304 Sealing Manufacturers, Factories

View Technical Details

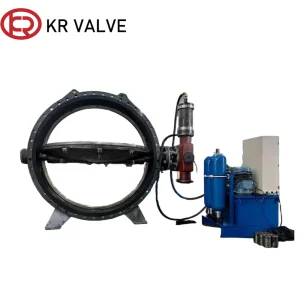

Hydraulic Cylinder Butterfly Valve

Wholesale Adjustable Hydraulic Cylinder Butterfly Valve - Double Eccentric Type DN200-DN3000

View Technical Details

Triple Eccentric Wafer Style Butterfly Valve WCB

OEM Triple Eccentric Wafer Style Butterfly Valve WCB Material 150LB Manufacturer, Factories

View Technical Details
