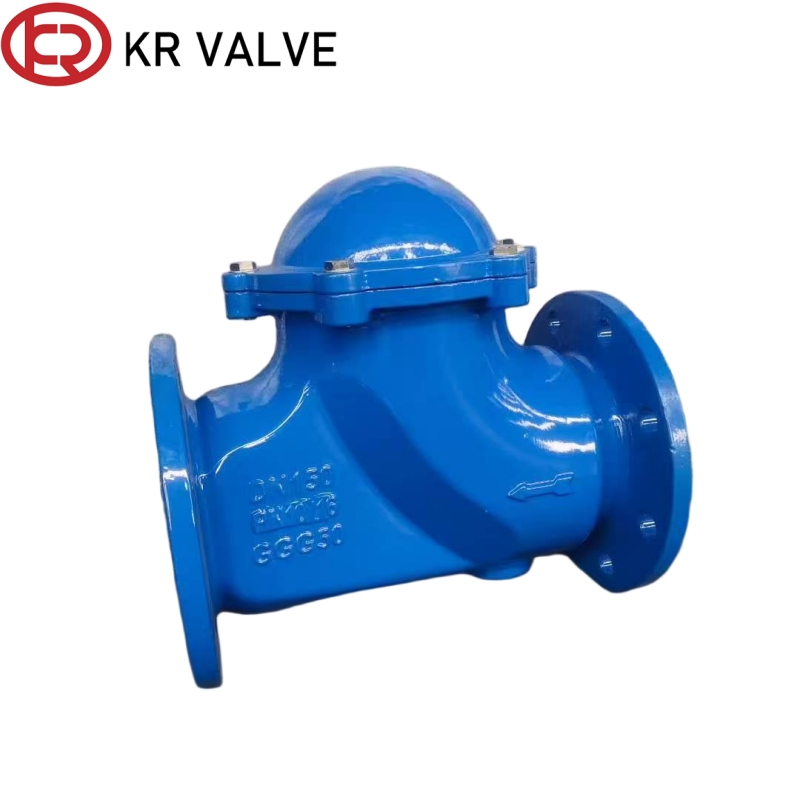

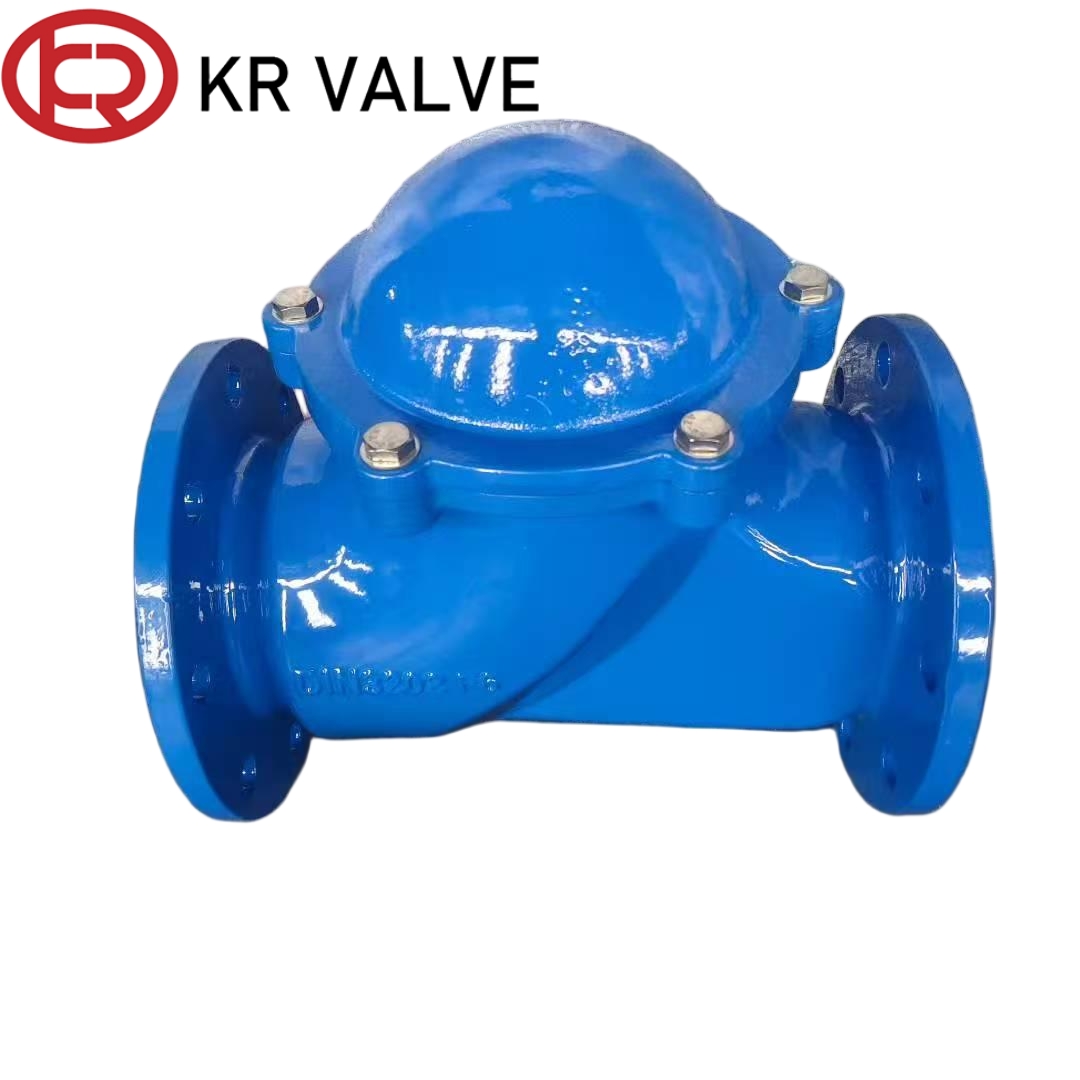

OEM Ball check valve flange connection EPDM ball non return valve Manufacturer, Factories
Product Description
Technical Specifications
| Valve Type: | Ball check valve | Structure: | Ball type |
| Standard: | BS/API/DIN/JIS | Workmanship: | Investment casting |
| Sealing Direction: | Single-directional | Sealing Grade: | Zero leakage |
| Temperature: | 0°C < T < 80°C | Operation: | Automatic |

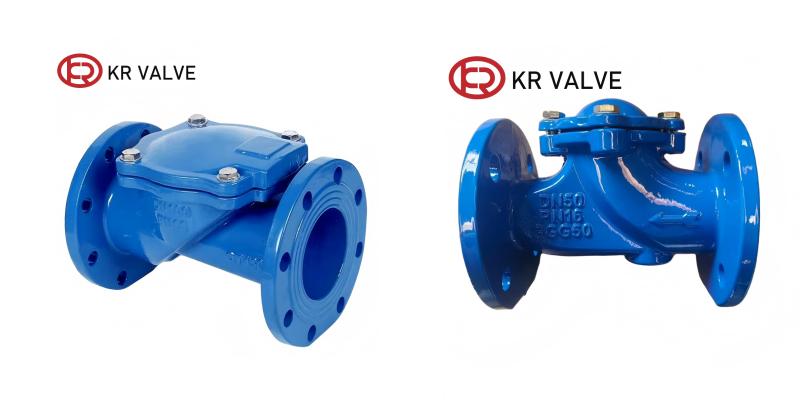

Product Description & Characteristics
The ball check valves have excellent waterproof hammer function, which is mainly composed of a spherical device and a valve body, with a simple structure. The spherical device consists of a ball cover and a rubber ball. The rubber ball is processed from steel plate into a core and lined with a rubber layer to maintain a certain degree of elasticity and sufficient strength.
Key Advantages
Application Scenarios
The ball check valve is widely used in various fields such as water supply and drainage engineering, sewage treatment, and environmental protection, it adapts to different pressures, media, and pipeline conditions. Its core function is to prevent fluid backflow, protect pipeline systems and equipment safety.
Main Part Materials
| Part Name | Body | Stem | Seal | Ball |
|---|---|---|---|---|
| Material | Ductile iron, cast steel, Stainless steel | Stainless steel | EPDM/NBR | Stainless steel |
Main External Connection Dimensions
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|
| L | 180 | 200 | 260 | 300 | 350 | 400 | 500 | 600 |
| H | 185 | 210 | 245 | 280 | 335 | 400 | 495 | 600 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 |
| n-φd | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | 12-28 |
Packaging
Standard export wooden case packaging
Frequently Asked Questions (FAQ)
Our ball check valves are manufactured in full compliance with major international standards including BS, API, DIN, and JIS specifications.
The operational temperature range for this ball check valve is between 0°C and 80°C (0°C < T < 80°C).
The main body is available in Ductile Iron, Cast Steel, or Stainless Steel. Seals are made of durable EPDM or NBR rubber compounds.
It utilizes a spherical device (steel core ball lined with rubber) with a fast shutdown speed, ensuring effective suppression of water hammer while preventing backflow.
They are extensively applied in water supply and drainage engineering, sewage treatment plants, and various environmental protection applications.
All products are safely packaged using standard export wooden cases to prevent damage during long-distance transportation.
