OEM Electric cone valve used for big size water control Suppliers, Manufacturer
Product Description
Product Specifications
| Valve Type: | Conical valve | Structure: | Fixed type |
| Standard: | BS/API/DIN/JIS | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | -20°C<T<120°C | Operation: | Electric |
Characteristics
This electric fixed cone valve adopts electric actuator to drive the sleeve for linear flow regulation. The hollow jet atomization design realizes excellent energy dissipation to eliminate cavitation and water hammer. Double metal & EPDM sealing ensures zero leakage. Compatible with remote 4-20mA signal control, available in ductile iron, WCB and stainless steel. Widely used in reservoir emptying, hydropower bypass and intelligent irrigation water conservancy projects.
Key Advantages
Electric actuator of this hydraulic electric flow regulating cone valve supports remote intelligent control and linkage with other equipment, realizing unattended operation, ideal for digital smart water conservancy renovation projects.
This remote control cone valve can built-in atomization energy dissipation structure omits complex anti-scour civil structures, cutting construction cost and reducing riverbed erosion maintenance workload.
Hydraulically balanced sleeve brings low operating torque; external moving parts avoid silt jamming, ensuring long-term stable operation with low maintenance frequency.
Packaging & Application Scenarios
Packing: Standard export wooden case packaging

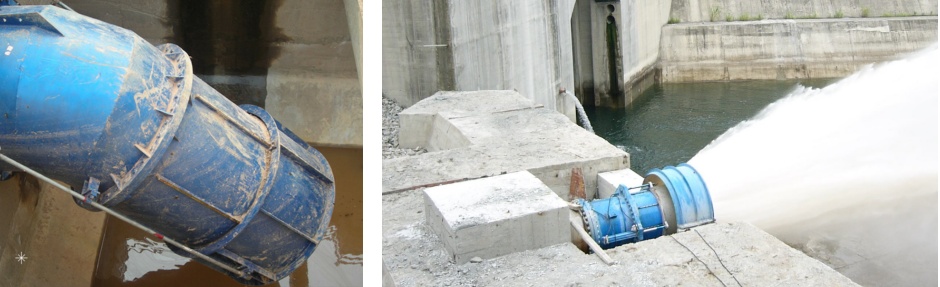

Application Scenarios: This intelligent hydraulic cone valve widely used in electric bottom outlet emptying for large & medium reservoirs, hydropower station electric bypass pressure relief pipelines, intelligent ecological base flow release systems, long-distance water delivery terminal energy dissipation, automatic irrigation zones, flood control hub discharge control and smart water delivery for ship lifts.
Material of Main Parts
| Components Name | Material Name |
|---|---|
| Valve body, valve cover | Cast iron, cast steel, ductile iron |
| Valve disc | Rubber combination components |
| Valve stem | Stainless steel |
Dimensions
Frequently Asked Questions (FAQ)
Q: What is the working mechanism of this conical valve?
It utilizes an electric actuator to drive a linear-moving sleeve for accurate flow regulation. The hollow jet atomization design allows effective energy dissipation to eliminate cavitation and water hammer effects.
Q: What sealing performance and standard does the valve achieve?
The valve employs a double metal & EPDM sealing structure to deliver single-directional zero-leakage sealing performance under standard operating temperatures (-20°C to 120°C).
Q: Is this valve suitable for automated or remote control systems?
Yes, the electric actuator supports standard 4-20mA signal control, enabling intelligent linkage with third-party control systems and unattended remote smart operation.
Q: What materials are used for key valve components?
The valve body and cover are constructed from cast iron, cast steel, or ductile iron. The valve stem is made of durable stainless steel, and the disc consists of rubber combination components.
Q: Where is this hydraulic electric fixed cone valve typically applied?
It is ideal for reservoir bottom outlet emptying, hydropower station bypass pressure relief, ecological base flow release, long-distance water delivery terminals, and smart irrigation projects.
Q: How is the product packaged for international transportation?
All products are packaged in standard export wooden cases to ensure safe protection against damage during overseas transport and handling.
