Wholesale Flanged Swing Type Check Valve CF8 Material Suppliers, Manufacturer

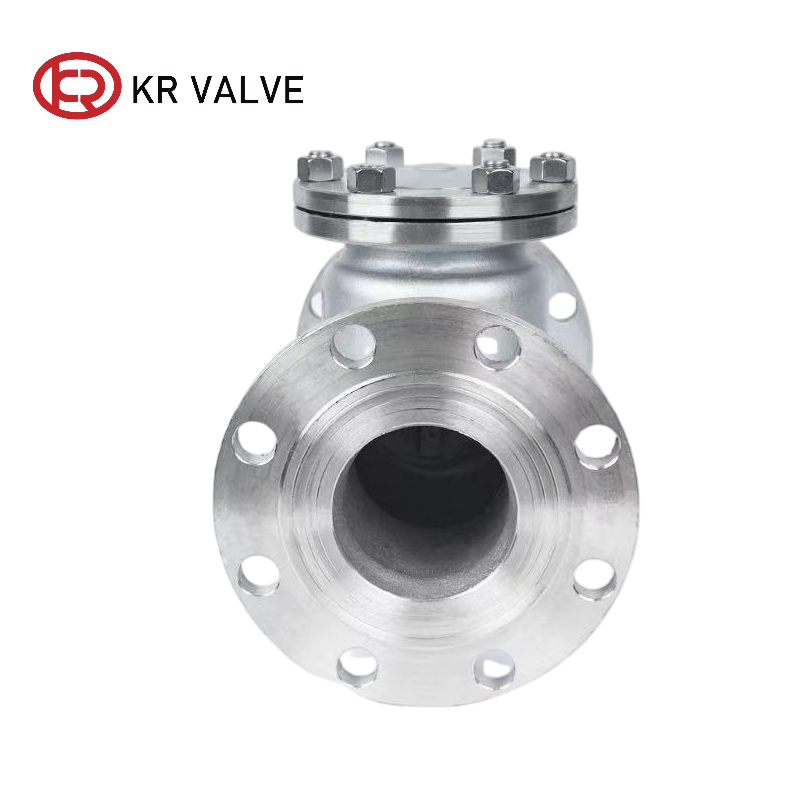

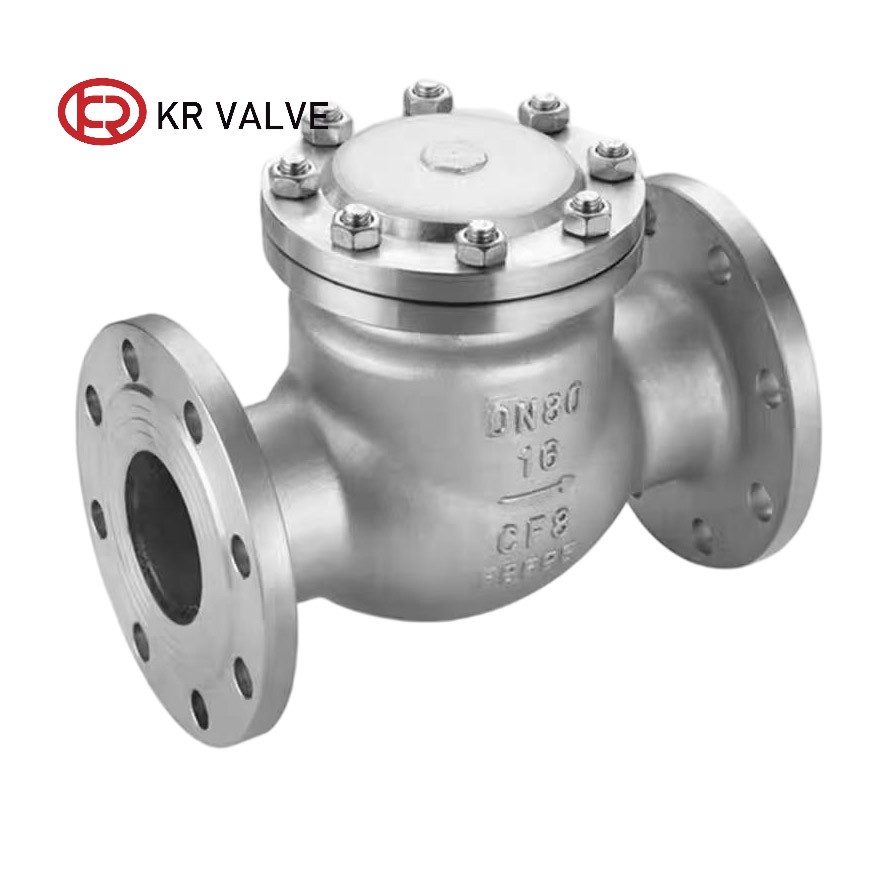

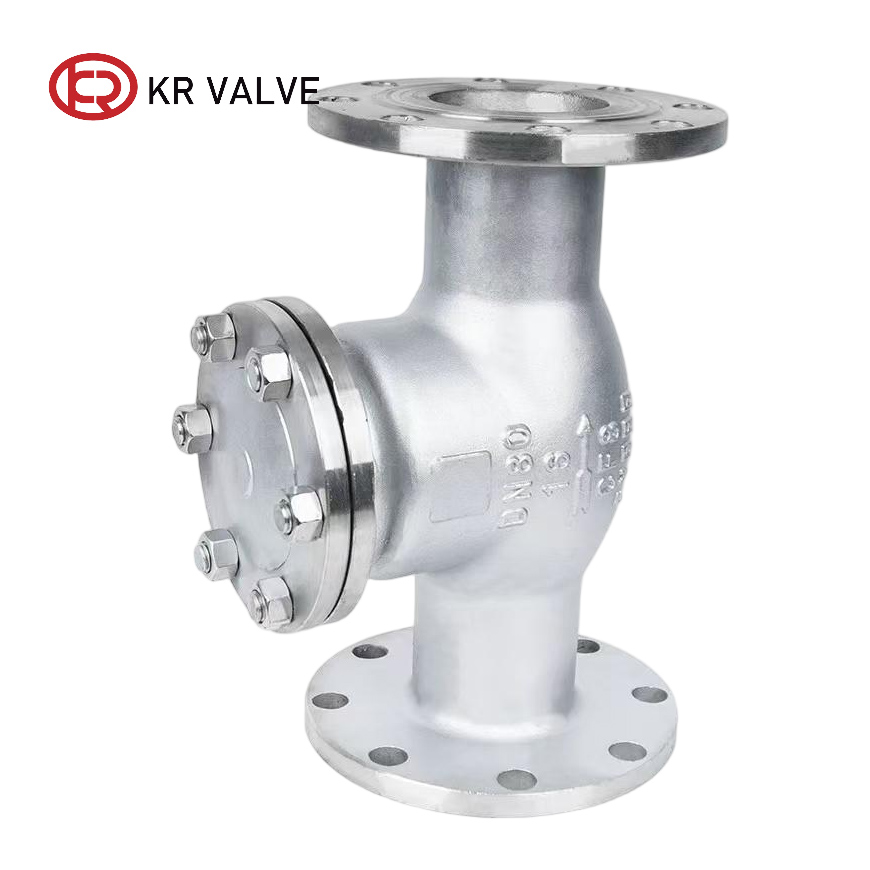

Product Description
Technical Specifications
Characteristics
Core components such as valve body, valve disc, rocker, etc. are preferably made of 304 stainless steel, 316 stainless steel, 316L stainless steel, or duplex stainless steel materials.
Key Advantages
The dense passivation film formed on the surface can resist the erosion of weak acids, weak bases, salt spray, seawater, and organic solvents. Compared with cast iron and cast steel valves, it can effectively avoid problems such as valve body corrosion and medium pollution, and is suitable for complex corrosion conditions.
The tensile strength of stainless steel material is ≥ 520MPa, and its mechanical properties are stable in the temperature range of -40 ℃~600 ℃. It can withstand the impact of high-pressure media and long-term erosion of high-temperature media, and is not easily deformed or cracked.
316L stainless steel and other materials have high surface smoothness, no pores, and do not adsorb impurities, meeting the hygiene standards of industries such as food, pharmaceuticals, and drinking water, and will not cause secondary pollution to the medium.
Application Scenarios
Widely used in pipeline systems in industries such as chemical, petroleum refining, marine engineering, pharmaceuticals, food and beverage, electricity, water treatment, etc., it is particularly suitable for conveying corrosive media, high-temperature and high-pressure media, and clean fluids, such as chemical raw material conveying pipelines, boiler steam pipelines, seawater desalination systems, pharmaceutical process pipelines, etc.
Packaging
Standard export wooden case packaging
Material Specifications
| Product Type | Part name | |||
|---|---|---|---|---|
| Valve body, valve bonnet | Valve disc, valve seat | Gasket | Fastener | |
| H44HY | WCB/25 | H:25+ Chromium stainless steel Y:25+Carbide |
Stainless steel with flexible graphite The steel strip Asbestos-wound gasket Spiral wound gasket |
High quality carbon steel |
| H44Y | Chromium-molybdenum steel | Chrome molybdenum steel + Carbide | Alloy steel | |
| H44W | Chrome-nickel titanium, chromium-nickel-molybdenum and titanium stainless steel | Stainless steel | ||
| H44W | ||||
Dimensions & Parameters

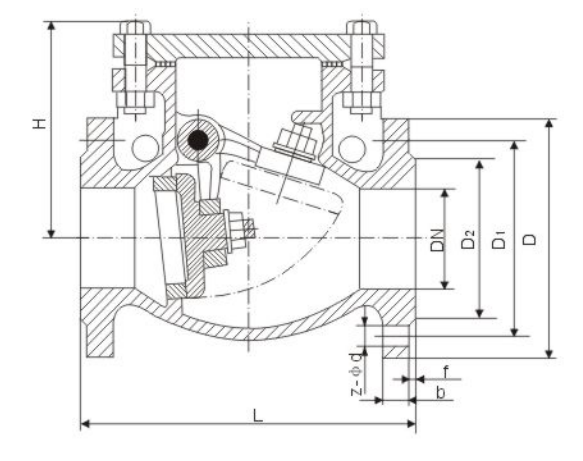

| PN (MPa) | DN (mm) | L | H | D | D1 | D2 | D6 | b | f | f2 | Z- ϕ d |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | 50 | 230 | 135 | 160 | 125 | 100 | – | 16 | 3 | – | 4- Φ18 |
| 65 | 290 | 142 | 180 | 145 | 120 | – | 18 | 3 | – | 4- Φ18 | |
| 80 | 310 | 165 | 195 | 160 | 135 | – | 20 | 3 | – | 8- Φ18 | |
| 100 | 350 | 180 | 215 | 180 | 155 | – | 20 | 3 | – | 8- Φ18 | |
| 125 | 400 | 210 | 245 | 210 | 185 | – | 22 | 3 | – | 8- Φ18 | |
| 150 | 480 | 233 | 280 | 240 | 210 | – | 24 | 3 | – | 8- Φ23 | |
| 200 | 550 | 304 | 335 | 295 | 265 | – | 26 | 3 | – | 12- Φ23 | |
| 250 | 650 | 348 | 405 | 355 | 320 | – | 30 | 3 | – | 12- Φ25 | |
| 300 | 750 | 390 | 460 | 410 | 375 | – | 30 | 4 | – | 12- Φ25 | |
| 350 | 850 | 430 | 520 | 470 | 435 | – | 34 | 4 | – | 16- Φ25 | |
| 400 | 950 | 468 | 580 | 525 | 485 | – | 36 | 4 | – | 16- Φ30 | |
| 450 | 1050 | 490 | 640 | 585 | 545 | – | 40 | 4 | – | 20- Φ30 | |
| 500 | 1150 | 525 | 705 | 650 | 608 | – | 44 | 4 | – | 20- Φ34 | |
| 600 | 1350 | 610 | 840 | 770 | 718 | – | 48 | 4 | – | 20- Φ41 | |
| 700 | 1450 | 670 | 910 | 840 | 788 | – | 50 | 4 | – | 24- Φ41 | |
| 800 | 1650 | 730 | 1020 | 950 | 898 | – | 52 | 4 | – | 24- Φ41 | |
| 900 | 1950 | 795 | 1120 | 1050 | 998 | – | 54 | 4 | – | 28- Φ41 | |
| 2.5 | 50 | 230 | 160 | 160 | 125 | 100 | – | 20 | 3 | – | 4- Φ18 |
| 65 | 290 | 175 | 180 | 145 | 120 | – | 22 | 3 | – | 8- Φ18 | |
| 80 | 310 | 185 | 195 | 160 | 135 | – | 22 | 3 | – | 8- Φ18 | |
| 100 | 350 | 220 | 230 | 190 | 160 | – | 24 | 3 | – | 8- Φ23 | |
| 125 | 400 | 248 | 270 | 220 | 188 | – | 28 | 3 | – | 8- Φ25 | |
| 150 | 480 | 270 | 300 | 250 | 218 | – | 30 | 3 | – | 8- Φ25 | |
| 200 | 550 | 350 | 360 | 310 | 278 | – | 34 | 3 | – | 12- Φ25 | |
| 250 | 650 | 410 | 425 | 370 | 332 | – | 36 | 3 | – | 12- Φ30 | |
| 300 | 750 | 430 | 485 | 430 | 390 | – | 40 | 4 | – | 16- Φ30 | |
| 350 | 850 | 518 | 550 | 490 | 448 | – | 44 | 4 | – | 16- Φ34 | |
| 400 | 950 | 560 | 610 | 550 | 505 | – | 48 | 4 | – | 16- Φ34 | |
| 450 | 1050 | 590 | 660 | 600 | 555 | – | 50 | 4 | – | 20- Φ34 | |
| 500 | 1150 | 618 | 730 | 660 | 610 | – | 52 | 4 | – | 20- Φ41 | |
| 600 | 1350 | 640 | 840 | 770 | 718 | – | 56 | 4 | – | 20- Φ41 | |
| 700 | 1450 | 695 | 955 | 875 | 815 | – | 60 | 4 | – | 24- Φ48 | |
| 800 | 1650 | 760 | 1070 | 990 | 930 | – | 64 | 4 | – | 24- Φ48 | |
| 900 | 1956 | 833 | 1180 | 1090 | 1025 | – | 66 | 4 | – | 28- Φ54 |
Frequently Asked Questions (FAQ)
This swing check valve is manufactured according to the API609 standard, utilizing precision investment casting workmanship for high structural integrity.
The valve is capable of operating in extreme temperature environments ranging from -40°C to 800°C (-40°C < T < 800°C), depending on the specific material configuration.
Core components such as the valve body, disc, and rocker can be customized using 304 stainless steel, 316 stainless steel, 316L stainless steel, or duplex stainless steel materials.
Featuring a single-directional swing sealing structure engineered to achieve a zero leakage sealing grade, preventing backflow effectively under rated working pressures.
Yes, options like 316L stainless steel provide high surface smoothness without pores, preventing impurity adsorption and meeting hygiene requirements for food, pharmaceutical, and drinking water systems.
All valves are safely packaged in standard export wooden cases to protect against damage, moisture, and corrosion during long-distance shipping.
