Wholesale Micro resistance slow closing check valve swing type tilting disc Supplier, Factories
Product Description
Description & Specifications
| Valve Type: | Tilting disc check valve | Structure: | Swing type |
| Standard: | EN/DIN/API | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | -20°C<T<120°C | Operation: | Self-starting |
Characteristics
This tilted swing check valve is an improved swing check valve with short-stroke inclined disc, equipped with external hydraulic buffer for water hammer reduction. Full straight bore prevents silt jamming, suitable for sewage and slurry media. Available in ductile iron, WCB carbon steel and stainless steel with soft/metal sealing. Widely used in wastewater treatment, power plant, heating and metallurgical large-diameter pipeline systems.
Advantages
- Improved tilted swing disc shortens closing stroke to reduce water hammer; full straight bore avoids silt blockage, ideal for sewage and slurry pipelines that tilting disc valves cannot adapt to.
- This stop and check valve with large unobstructed flow passage prevents silt and fiber jamming, stable long-term operation for sewage, mine slurry and impurity-containing circulating water systems.
- Multiple body material options (ductile iron, WCB, stainless steel) cover municipal water, high-temperature steam and anti-corrosion chemical pipeline projects with outstanding cost performance.
Packing
Standard export wooden case packaging
Application Scenarios

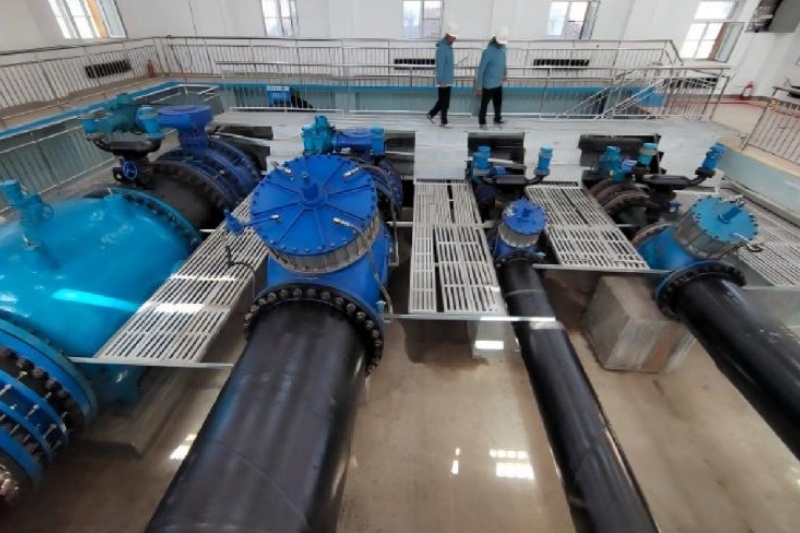

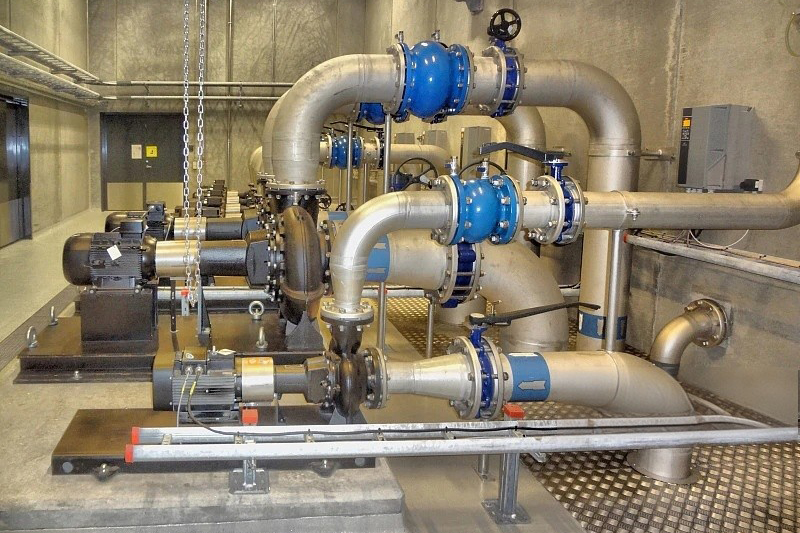

This non return valve for water pump widely used in urban sewage treatment plant pipelines, power plant circulating cooling water, metallurgical slurry delivery lines, municipal large pump stations, thermal steam circulation systems, printing & dyeing wastewater and silt-containing industrial circulating water pipelines.
Material of Main Parts
| Components Name | Material Name |
|---|---|
| Valve body, valve cover | Cast iron, cast steel, ductile iron |
| Valve disc | Rubber Combination components |
| Valve stem | Stainless steel |
Main Dimension
| DN (mm) | L | H | B |
|---|---|---|---|
| 40 | 200 | 300 | 220 |
| 50 | 230 | 300 | 270 |
| 65 | 290 | 320 | 290 |
| 80 | 310 | 354 | 300 |
| 100 | 350 | 350 | 320 |
| 125 | 400 | 380 | 340 |
| 150 | 480 | 500 | 410 |
| 200 | 500 | 580 | 450 |
| 250 | 600 | 670 | 550 |
| 300 | 700 | 730 | 580 |
| 350 | 800 | 820 | 630 |
| 400 | 900 | 920 | 700 |
| 450 | 1000 | 950 | 800 |
| 500 | 1100 | 1100 | 900 |
| 600 | 1300 | 1200 | 990 |
| 700 | 1400 | 1550 | 1120 |
| 800 | 1500 | 1700 | 1300 |
Frequently Asked Questions (FAQ)
A: The valve complies with standard EN, DIN, and API manufacturing and design standards, with investment casting workmanship to ensure high performance and precision.
A: The valve features a short-stroke inclined disc combined with an external hydraulic buffer that cushions the closing action, effectively preventing dangerous water hammer impact on pipelines.
A: Yes. The full straight bore design prevents silt, fiber, and impurity jamming, making it ideal for wastewater treatment, mine slurry, and silt-containing circulating water systems.
A: The body and cover options include Cast Iron, WCB Cast Steel, and Ductile Iron to suit municipal water, high-temperature steam, and anti-corrosion chemical media requirements.
A: The operating temperature ranges from -20°C to 120°C. It offers single-directional sealing with a zero leakage performance grade.
A: The product is packed using standard export wooden cases to protect the valve during long-distance transportation.
