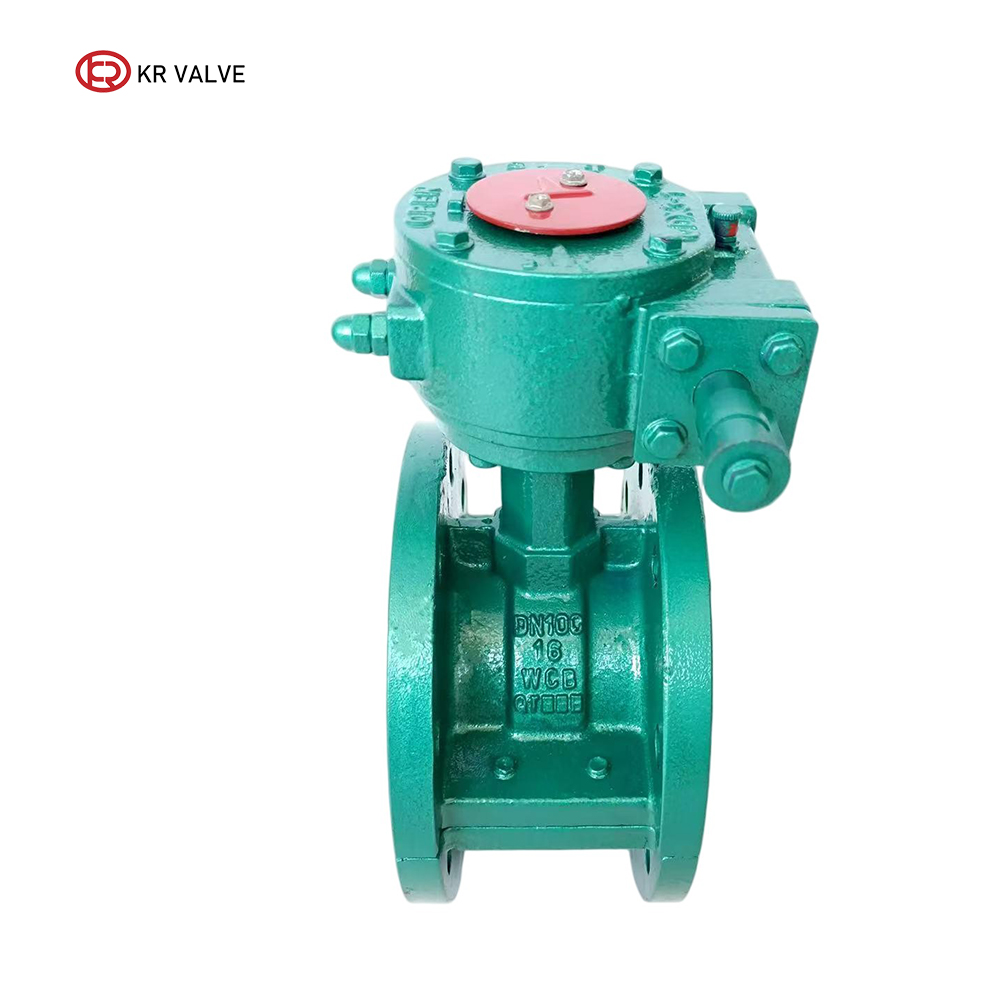

Wholesale WCB split body full PTFE lined concentric butterfly valve Manufacturers, Factories
Product Description
Technical Specifications Overview
- Thick shell, heavy-type construction
- High purity rubber with high wear resistance
- Strict zero leakage standard
- Various dimensions and sizes in stock
Characteristics

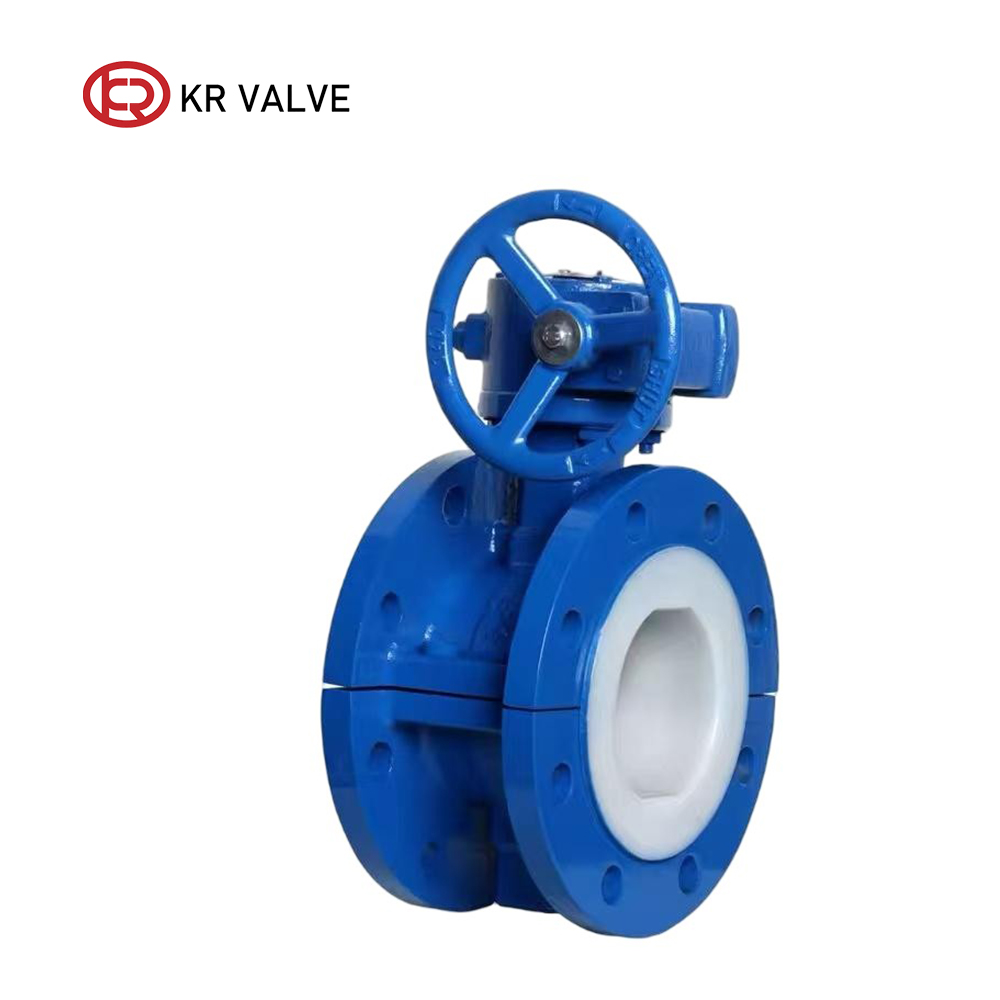

The inner cavity of the valve body, the sealing groove of the disassembly surface, and the flange sealing surface are all coated with PTFE (or reinforced FEP) lining as a whole, with a thickness of 2-3mm. The lining is formed by compression molding and sintering process, and is firmly combined with the metal valve body without bubbles or delamination defects. It can completely isolate corrosive media such as strong acids, strong alkalis, and organic solvents from contact with carbon steel/stainless steel valve bodies, eliminating the risk of corrosion and leakage.
Key Advantages
The valve body material can be selected from carbon steel (WCB) and stainless steel (304/316), and the lining can be made of PTFE, FEP, nitrile rubber and other materials according to the characteristics of the medium. The PTFE lining version can withstand most corrosive media, and the wear-resistant modified lining version can cope with slurry media containing solid particles (such as desulfurization wastewater and slurry).
The valve stem adopts an integrated forging process and is connected to the valve plate without a pin, avoiding the risk of loosening in traditional pin connections. It can withstand more than 100,000 opening and closing cycles without failure. Low opening and closing torque, labor-saving manual operation, fast response speed when paired with pneumatic/electric actuators, pneumatic opening and closing time ≤ 3 seconds, suitable for frequent opening and closing automation control systems.
Material Specifications
| Part Name | Material Name |
|---|---|
| Valve Body | Cast iron, Ductile iron, Stainless steel |
| Valve Disc | Ductile iron, Stainless steel, Aluminium alloy |
| Valve Stem | Carbon steel, Stainless steel |
| Valve Seat | Rubber |
| Seal | O-Type Ring |
Dimensions & Size Data
| DN | L | L1 | D | D1 | H | H1 | b | n-φd | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | PN1.0MPa | PN1.6MPa | PN1.0MPa | PN1.6MPa | ||||||
| 50 | 2" | 108 | 180 | 125 | 125 | 150 | 326 | 83 | 20 | 4-φ18 | 4-φ18 |
| 65 | 2 1/2" | 112 | 180 | 145 | 145 | 165 | 344 | 93 | 20 | 4-φ18 | 4-φ18 |
| 80 | 3" | 114 | 180 | 160 | 160 | 200 | 363 | 100 | 22 | 4-φ18 | 8-φ18 |
| 100 | 4" | 127 | 180 | 180 | 180 | 220 | 396 | 114 | 22 | 8-φ18 | 8-φ18 |
| 125 | 5" | 140 | 180 | 210 | 210 | 250 | 421 | 125 | 24 | 8-φ18 | 8-φ18 |
| 150 | 6" | 140 | 180 | 240 | 240 | 280 | 453 | 143 | 24 | 8-φ23 | 8-φ23 |
| 200 | 8" | 152 | 270 | 295 | 295 | 335 | 578 | 170 | 26 | 8-φ23 | 12-φ23 |
| 250 | 10" | 165 | 270 | 350 | 355 | 405 | 638 | 198 | 26 | 12-φ23 | 12-φ28 |
| 300 | 12" | 178 | 380 | 400 | 410 | 455 | 731 | 223 | 32 | 12-φ23 | 12-φ28 |
| 350 | 14" | 190 | 380 | 460 | 470 | 525 | 783 | 270 | 36 | 16-φ23 | 16-φ28 |
| 400 | 16" | 216 | 450 | 515 | 525 | 580 | 888 | 300 | 38 | 16-φ28 | 16-φ31 |
| 450 | 18" | 222 | 480 | 565 | 585 | 640 | 958 | 340 | 40 | 20-φ28 | 20-φ31 |
| 500 | 20" | 229 | 480 | 620 | 650 | 705 | 1005 | 355 | 42 | 20-φ28 | 20-φ34 |
| 600 | 24" | 267 | 480 | 725 | 770 | 825 | 1128 | 410 | 48 | 20-φ30 | 20-φ36 |
| 700 | 28" | 292 | 640 | 840 | 840 | 920 | 1476 | 478 | 53 | 24-φ30 | 24-φ36 |
| 800 | 32" | 318 | 640 | 950 | 950 | 1020 | 1533 | 525 | 58 | 24-φ33 | 24-φ39 |
| 900 | 36" | 330 | 750 | 1050 | 1050 | 1120 | 1655 | 585 | 65 | 28-φ33 | 28-φ39 |
| 1000 | 40" | 410 | 850 | 1160 | 1170 | 1340 | 1765 | 640 | 76 | 28-φ36 | 28-φ42 |
| 1200 | 48" | 470 | 850 | 1380 | 1390 | 1560 | 1995 | 755 | 85 | 32-φ39 | 32-φ48 |
| 1400 | 56" | 530 | 1000 | 1590 | 1590 | 1760 | 2310 | 910 | 103 | 36-φ42 | 36-φ48 |
| 1600 | 64" | 600 | 1000 | 1820 | 1820 | 1970 | 2595 | 1030 | 123 | 40-φ48 | 40-φ56 |
| 1800 | 72" | 697 | 1100 | 2020 | 2020 | 2180 | 2810 | 1140 | 135 | 44-φ48 | 44-φ56 |
| 2000 | 80" | 760 | 1100 | 2230 | 2230 | 2345 | 3100 | 1250 | 145 | 48-φ48 | 48-φ62 |
Packing Information
Standard export wooden case packaging
Application Scenarios
Widely used in the power industry for boiler steam pipelines and circulating water systems in thermal power plants, withstanding high temperature and high pressure conditions, as well as transportation pipelines for crude oil and refined oil in petrochemicals, and non-corrosive medium reaction devices in refineries.
