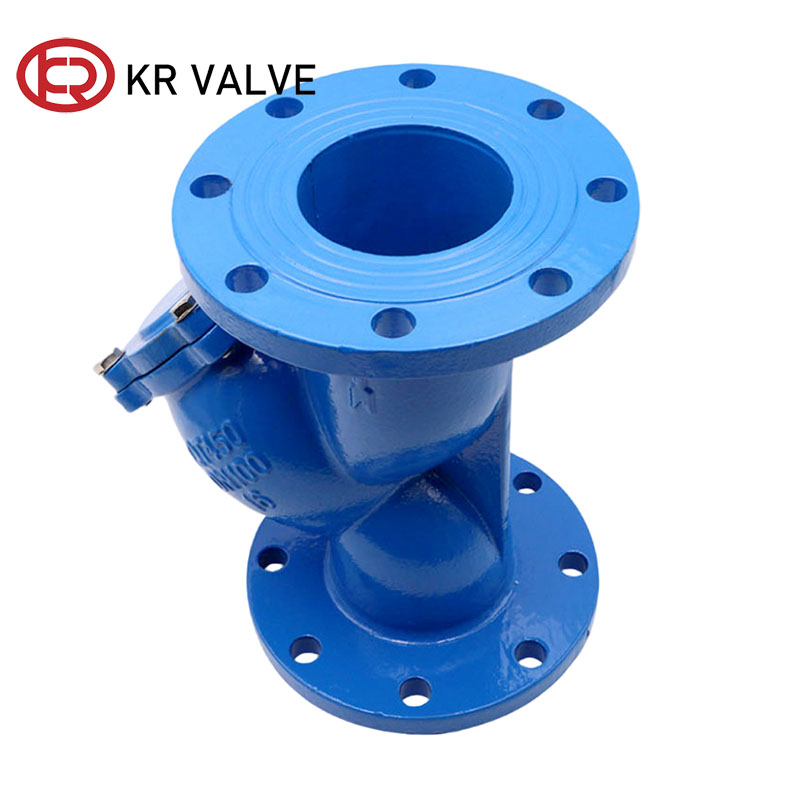

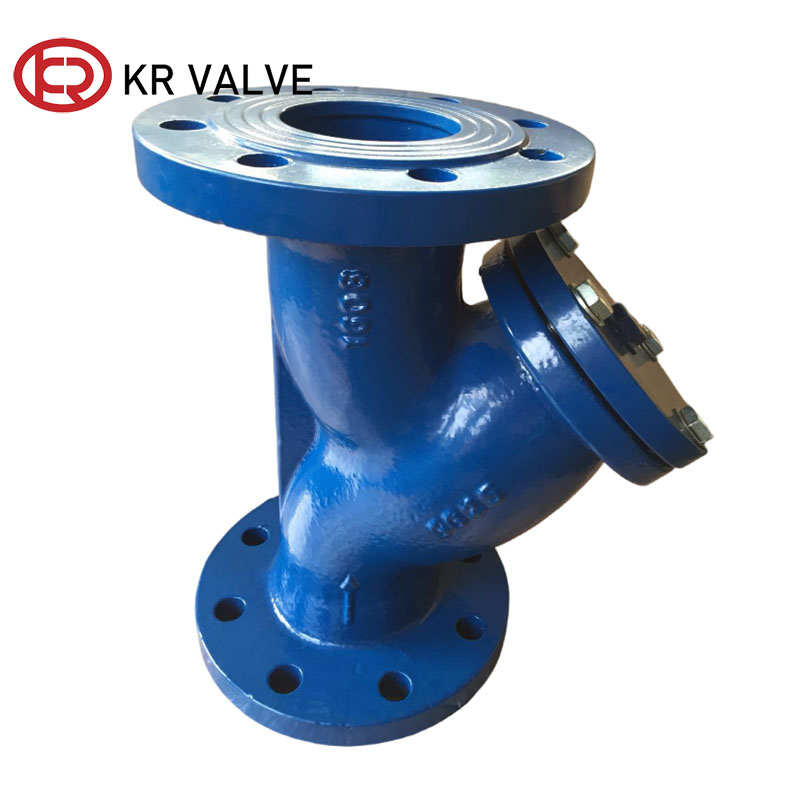

Custom Cast iron GG25 strainer type y flanged connection Suppliers, Manufacturer

Type: Flange type

Series: GL41H-10/16

Size: DN50-DN300/2”-8”

Pressure rating: PN16/PN25

Design standard: BS5155

Service: OEM&ODM

The Y-shaped filter, also known as basket filter or steam filter.

Send Inquiry

Product Description

Product Specifications

Valve Type: Flange Y type strainer

Structure: Removable

Standard: BS5155

Workmanship: Investment casting

Sealing direction: Single-directional

Sealing grade: Zero leakage

Temperature: -20°C < T < 120°C

Operation: Automatic

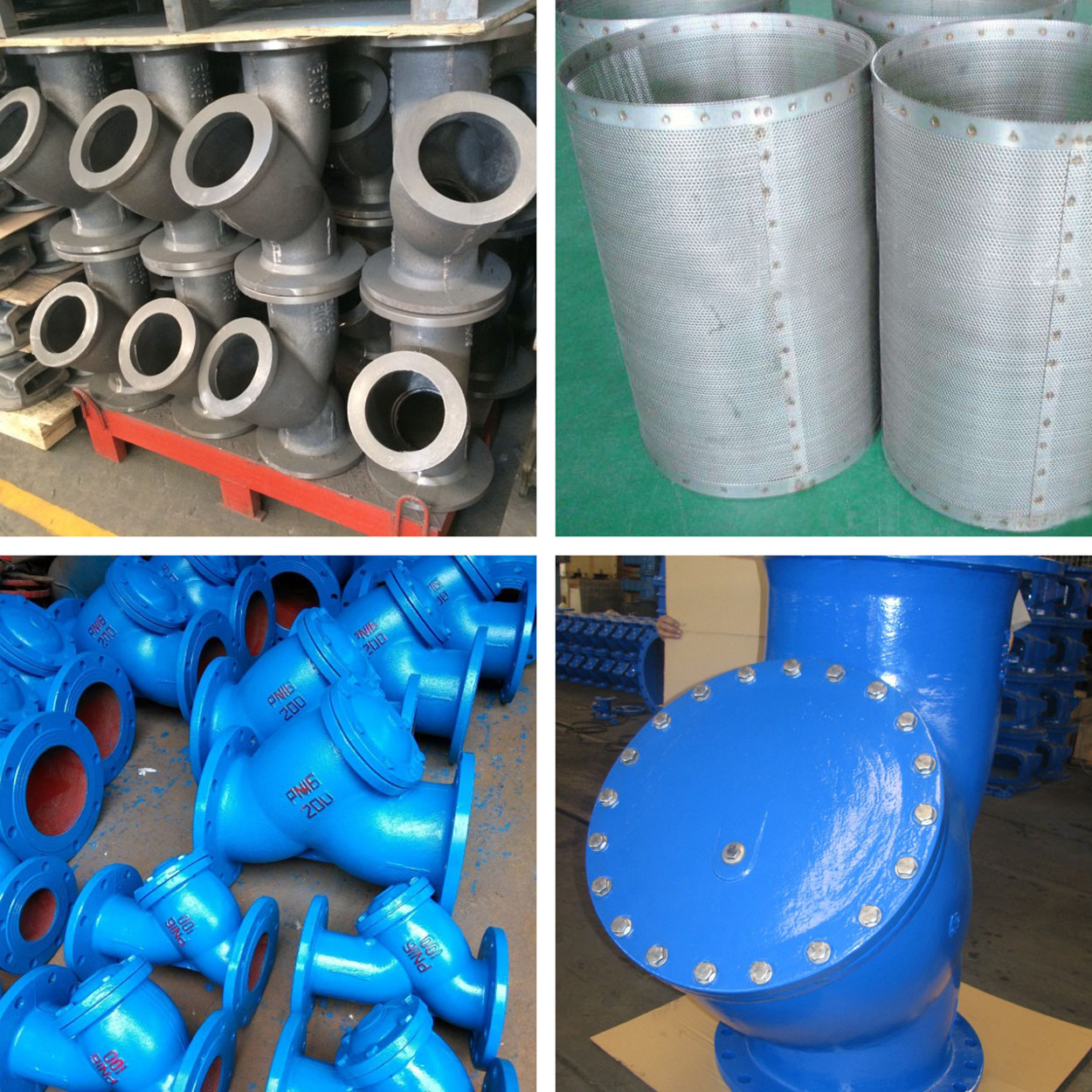

Characteristics

The fluid enters from the inlet end of the filter and flows through the flanged y strainer. Here, the fluid must pass through a filter to flow out from the outlet end. Solid impurities in fluids, such as rust, sediment, pipeline debris, scale, etc., are intercepted on the inner wall or bottom of the filter due to their particle size being larger than the filter aperture. The clean fluid flows out through the filter and enters downstream equipment.

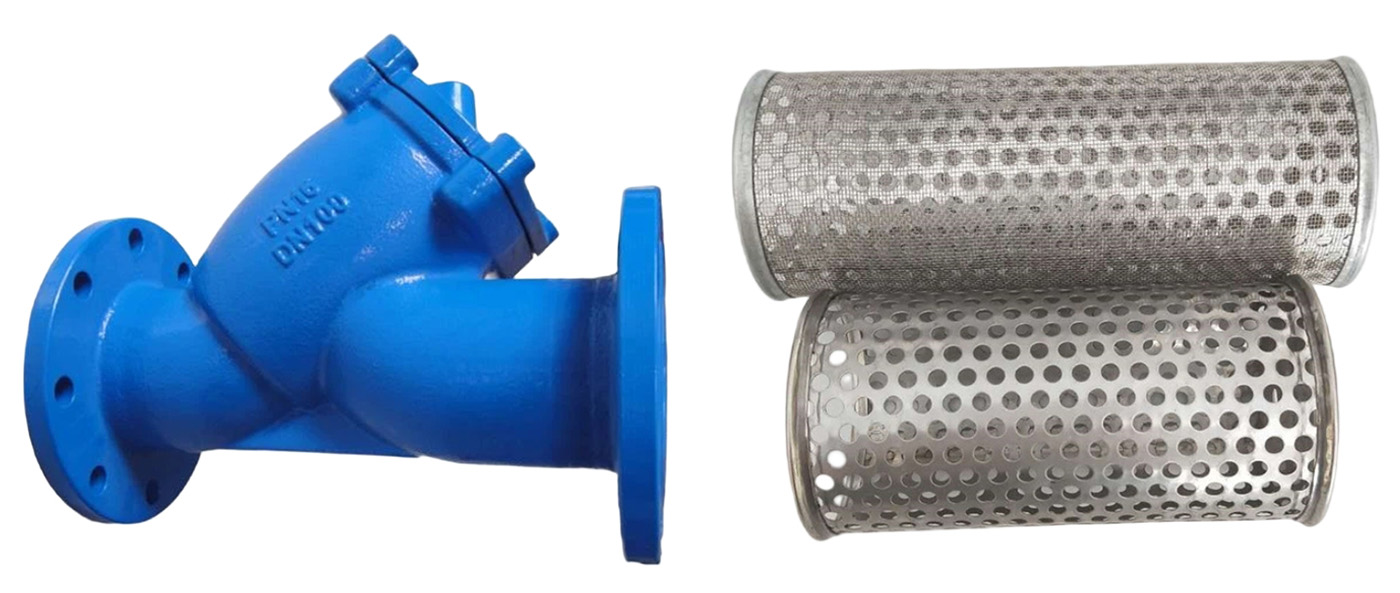

Ductile iron GGG40 Y type strainer with SS304 filter

Advantages

1. Compact structure

Small space occupation. The Y-shaped design allows it to adapt well to straight pipe sections, especially suitable for installation positions with limited space.

2. Low pressure drop

Strong flow capacity. In a clean state, the flow channel is smooth and has little impact on system pressure loss.

3. Easy maintenance

Easy and fast maintenance. Most designs allow online maintenance. Simply close inlet/outlet valves, open cover, remove filter screen to clean or replace.

Material Specifications

Part name	Pipe body	Screen	O Ring
Material	Cast iron, Ductile iron, Cast steel	Stainless steel	NBR

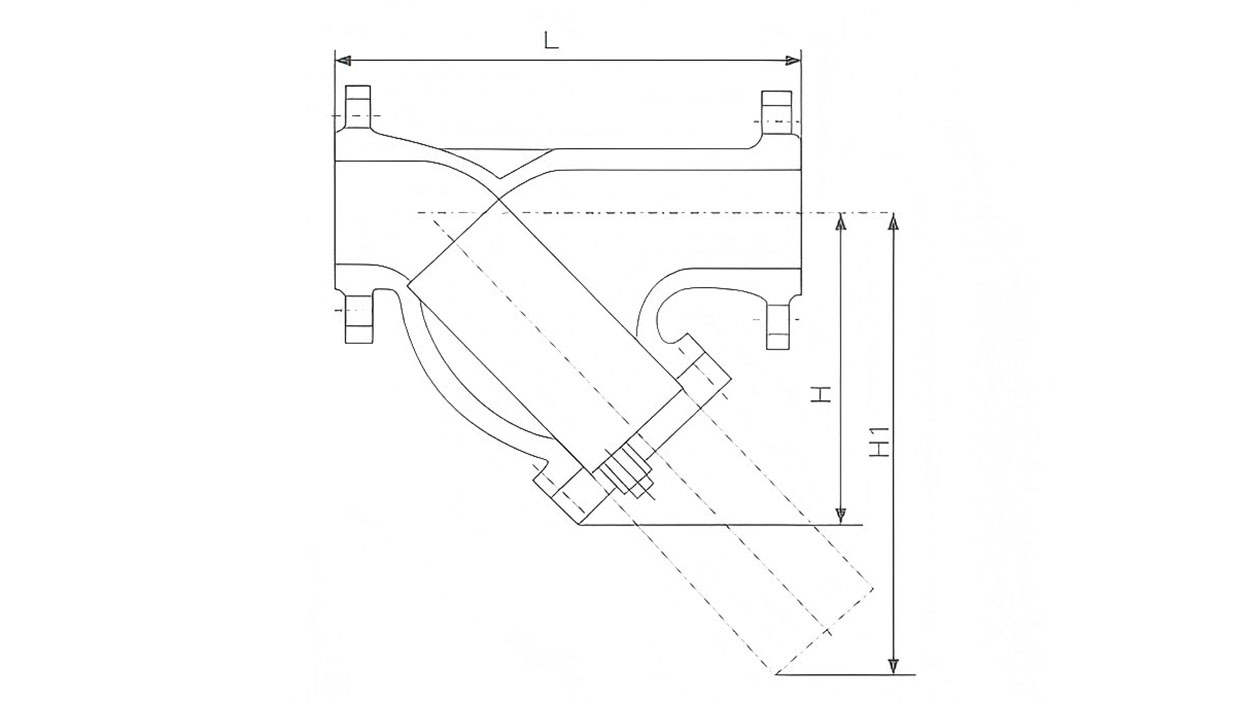

Dimensions

DN		50	65	80	100	125	150	200	250	300	350	400	450	500
L	GB	205	215	250	295	315	345	420	530	610	630	720	735	870
L	DIN	230	290	310	350	400	480	600	730	850	980	1100	1200	1250
H		155	198	210	250	305	358	450	503	578	598	618	693	765
H1		195	270	295	344	422	485	602	710	815	844	872	978	1080

Packing

Standard export wooden case packaging

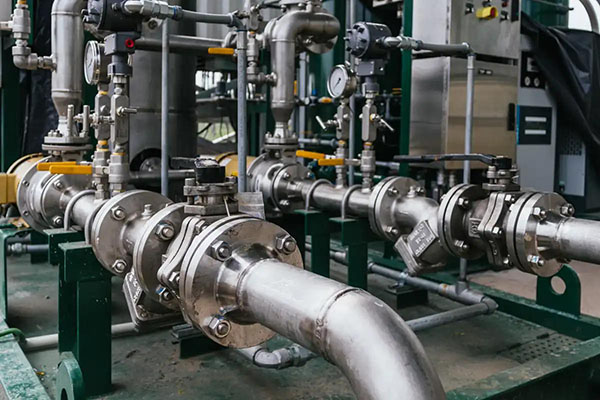

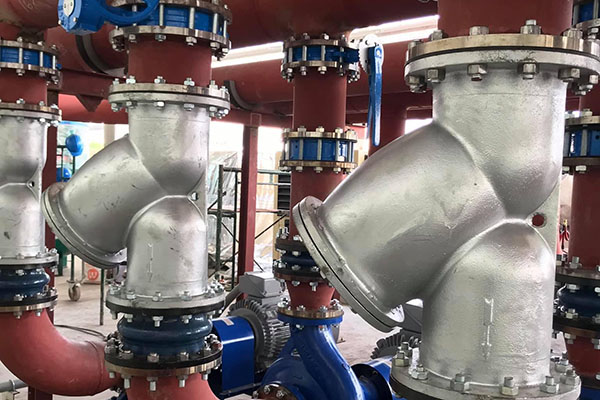

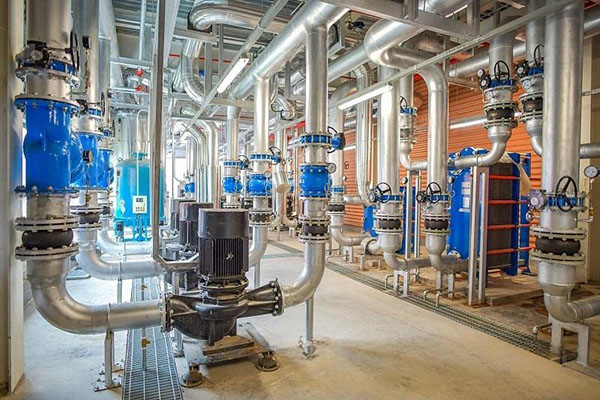

Application Scenarios

The cast iron strainer widely used in municipal water supply, installed in front of the building's inlet main pipeline and irrigation system, filters sediment.

Frequently Asked Questions (FAQ)

What is the main function of a Flanged Y-Type Strainer?

It mechanically removes solid impurities such as rust, sediment, and pipeline debris from flowing fluids, protecting downstream equipment (pumps, meters, valves) from damage and blockage.

What design standard does this strainer comply with?

This Flange Y type strainer is manufactured according to the BS5155 standard, utilizing investment casting for precise structural integrity and zero leakage sealing performance.

What operating temperature range can this valve handle?

The strainer operates reliably within a working temperature range of -20°C < T < 120°C, making it suitable for municipal water supply and standard industrial fluid systems.

How do you clean and maintain the strainer screen?

Maintenance is simple and fast. Close the isolation valves, open the removable cover, remove the stainless steel screen for flushing or replacement, and re-install without disassembling the main pipe body.

Where is this Y-type strainer typically installed?

It is widely installed at the main inlet pipelines of buildings, municipal water supply networks, and agricultural irrigation systems in front of key pressure control or measuring equipment.
