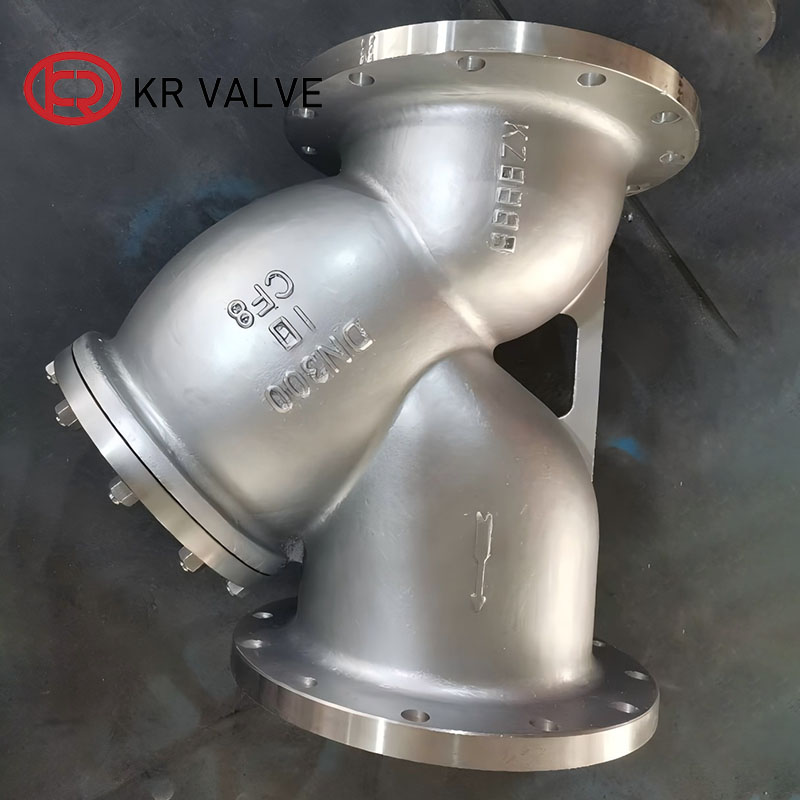

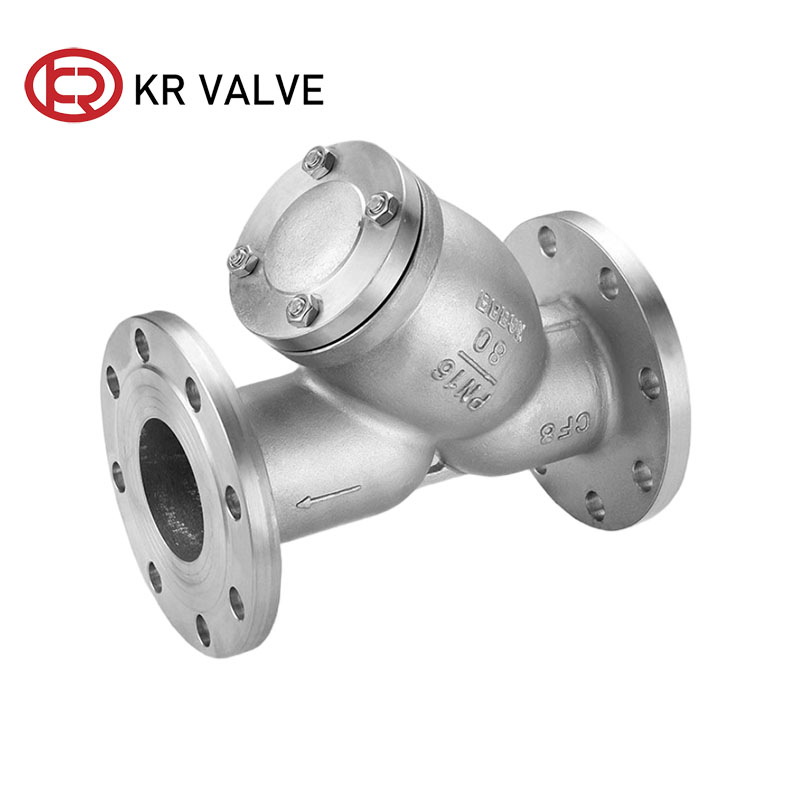

Wholesale CF8 Stainless steel ANSI standard flanged y type strainer Suppliers, Manufacturers
Product Description
| Valve Type: | Flange Y type strainer | Structure: | Removable |
| Standard: | BS5155 | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | -20°C < T < 120°C | Operation: | Automatic |

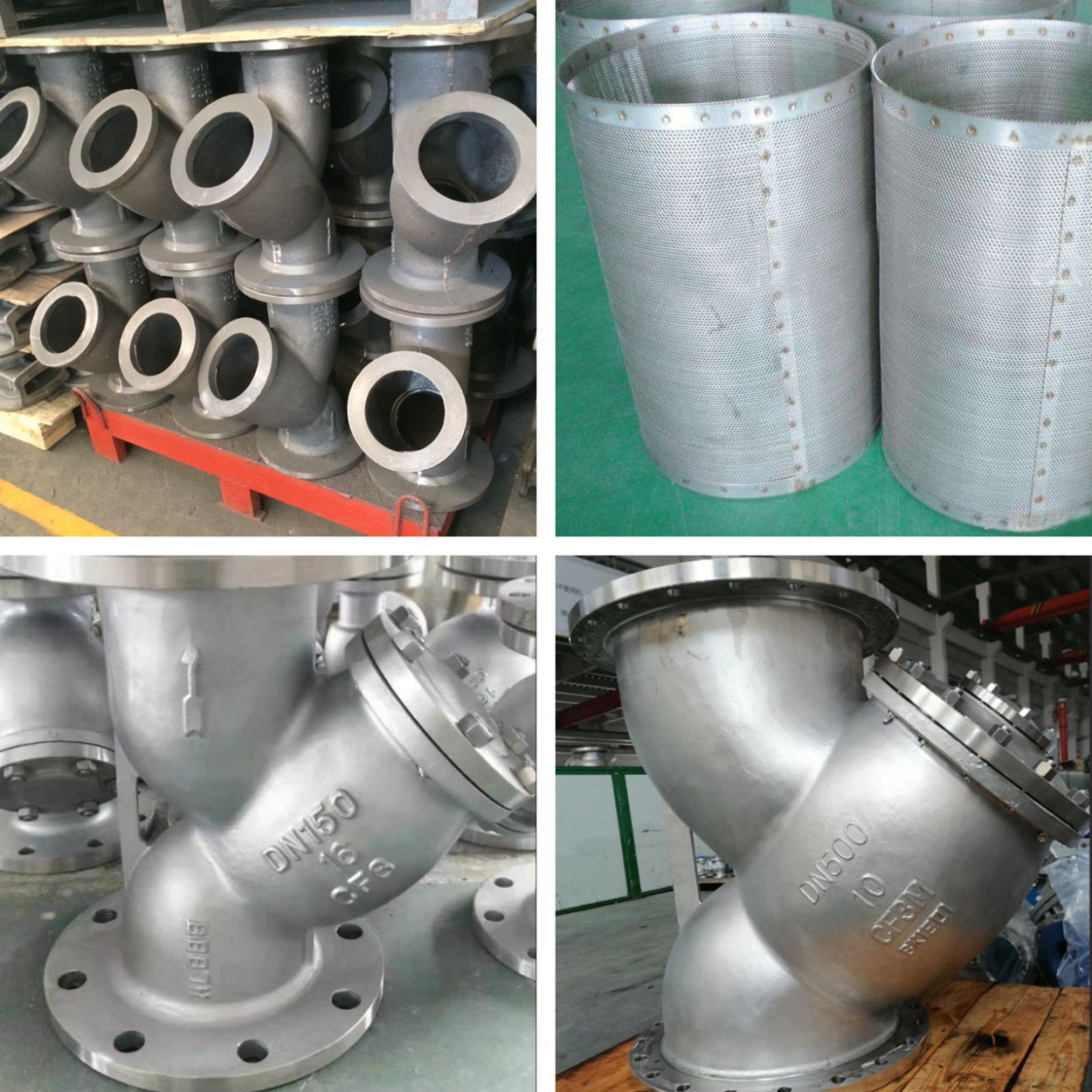

The main pressure bearing and overcurrent components such as the valve body, filter screen, gland, and bolts of the CF8 stainless steel Y type filter are all made of stainless steel material.
The CF8 Y filter can effectively resist corrosion from the atmosphere, fresh water, steam, most food media, and weak acid and alkali solutions. Suitable for most non-extreme corrosive environments.
The SS Y type strainer is easy to cast, forge, and weld, making it convenient to manufacture valve bodies with complex structures, and the corrosion resistance of the welded parts decreases less.
The types of strainer maintaining good mechanical properties over a wide temperature range from low temperatures to approximately 800℃.

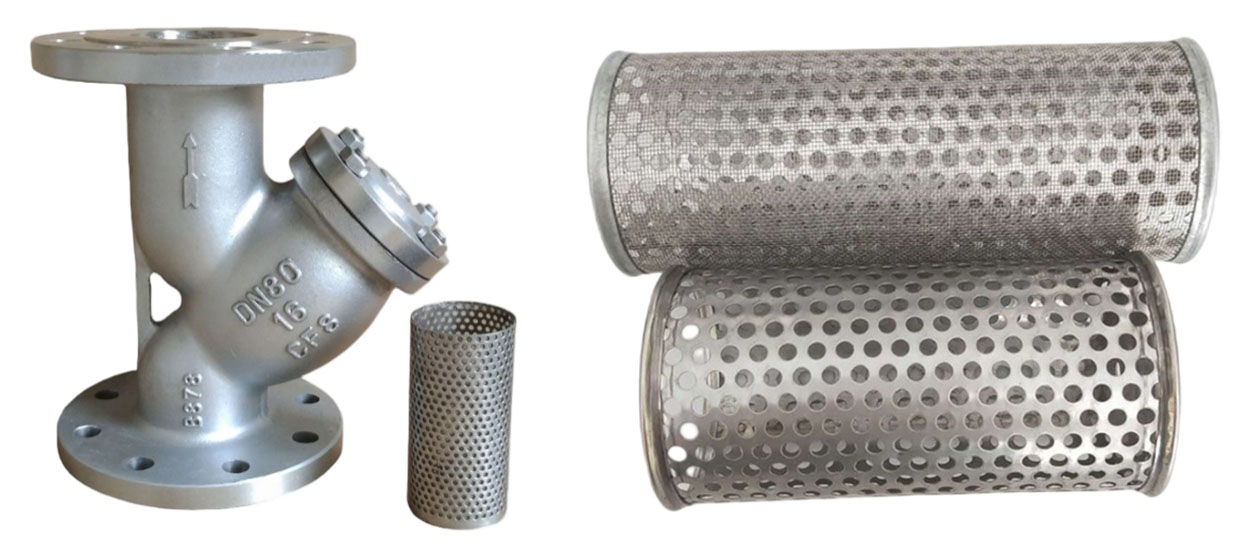

| Part Name | Pipe Body | Screen | O Ring |
| Material | Cast iron, Ductile iron, Cast steel | Stainless steel | NBR |
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| L | GB | 205 | 215 | 250 | 295 | 315 | 345 | 420 | 530 | 610 | 630 | 720 | 735 | 870 |
| DIN | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | |
| H | 155 | 198 | 210 | 250 | 305 | 358 | 450 | 503 | 578 | 598 | 618 | 693 | 765 | |
| H1 | 195 | 270 | 295 | 344 | 422 | 485 | 602 | 710 | 815 | 844 | 872 | 978 | 1080 | |
Standard export wooden case packaging
The CF8 Y type strainer is used for chilled water and cooling water systems with high water quality requirements, especially for high-end commercial buildings or systems with strict rust prevention requirements.
The main components, including the valve body, filter screen, gland, and bolts, are made of high-grade CF8 stainless steel, ensuring durability and corrosion resistance.
The standard operating temperature ranges from -20°C to 120°C, while maintaining solid mechanical stability up to 800°C.
This Y type strainer complies with the BS5155 manufacturing standard and is crafted using precise investment casting techniques.
It is ideal for chilled water and cooling water systems demanding high water quality, particularly in commercial buildings requiring strict rust prevention.
The valve operates with single-directional sealing and provides a zero-leakage sealing grade under recommended working conditions.
All strainers are packed in standard export wooden cases to protect the equipment during long-distance international transit.
