Custom Gear Box Operation Lug Butterfly Valve EPDM Seal Supplier, Factory
Product Description
Technical Specifications
Key Components & Features
Handle
Various materials available. Enables quick and precise opening and closing switches.
Seal
EPDM seal featuring corrosion resistance, superior sealing performance, good resilience, and aging resistance.
Shell
Thickened valve body provides enhanced impact resistance and significantly extended service life.
Disc
Pinless disc design helps eliminate leakage pathways and ensures maximum operational durability.
Characteristics
The lug butterfly valve balances the compactness of the clamp valve with the stability of the single-sided flange connection. One end of it has an integral flange (lug), and the other end is a clamp type. During installation, only one side needs to be connected to the pipeline flange, and the other side needs to be fixed with a nut. This design eliminates the need for relying on flange alignment at both ends like clamp valves, making installation more convenient and reliable. It is particularly suitable for pipeline ends or situations that require frequent disassembly and maintenance, while avoiding stress issues that may arise from long bolt penetration. It is a preferred solution that balances space and stability requirements.
Key Advantages
Material Specifications
| Body | Plate | Rotating Shaft | Bushing | Seat | Operating Temp. (℃) |
|---|---|---|---|---|---|
| Ductile Iron | Electroplated Nodular Cast Iron | Stainless Steel | PTFE | EPDM Rubber | -45～+135 (Short -50～+150) |
| Ductile Iron | Ductile Iron | Carbon Steel | PTFE | Hypalon | -18～+135 (Short -18～+149) |
| Aluminum Bronze | Titanium Steel | - | - | EPDM Rubber | -45～+135 (Short -50～+150) |
| Stainless Steel | CF8M Stainless Steel | - | - | Neoprene Rubber | -7～+93 (Short -7～+107) |
| CF8M Stainless Steel | Carbon Steel | - | - | NBR Rubber | -12～82 (Short -12～+93) |
| Carbon Steel | CF8M Stainless Steel | - | - | Abrasion-Resistant Rubber | -10～+50 |
| - | - | - | - | Fluororubber | -23～+150 |
| - | - | - | - | Heat-Resistant EPDM | -20～+150 |
| - | - | - | - | PTFE | +10～+150 |

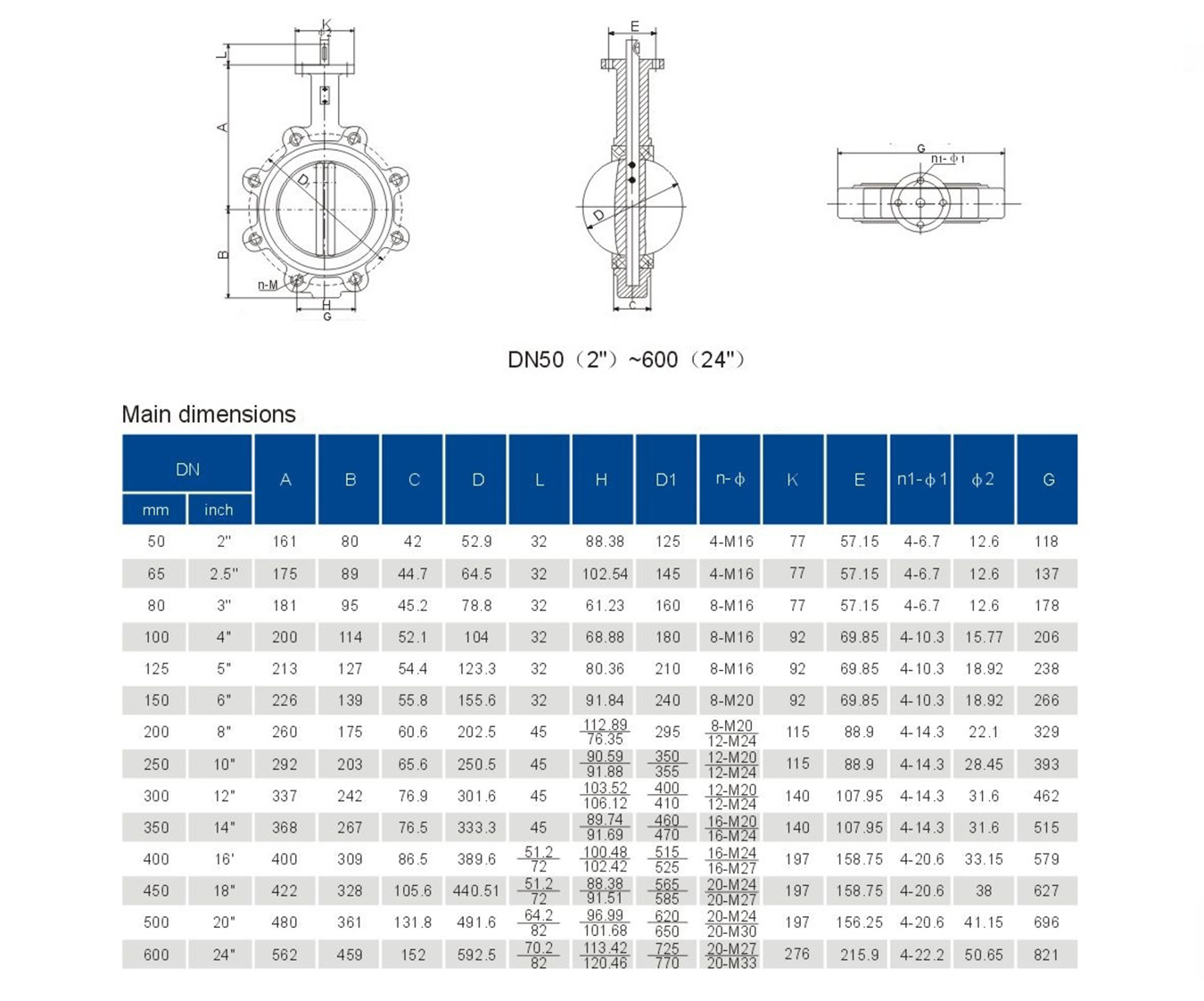

Dimensions
Application Scenarios
The lug butterfly valves are widely utilized across industrial, municipal, and specialized systems, leveraging their robust lug connection, balanced compactness and reliability, bidirectional sealing capability, and compatibility with medium-low to medium-high pressure conditions. Their unique design makes them ideal for scenarios requiring frequent maintenance, stable sealing, or adaptability to diverse media.
Packing
Standard export wooden case packaging
