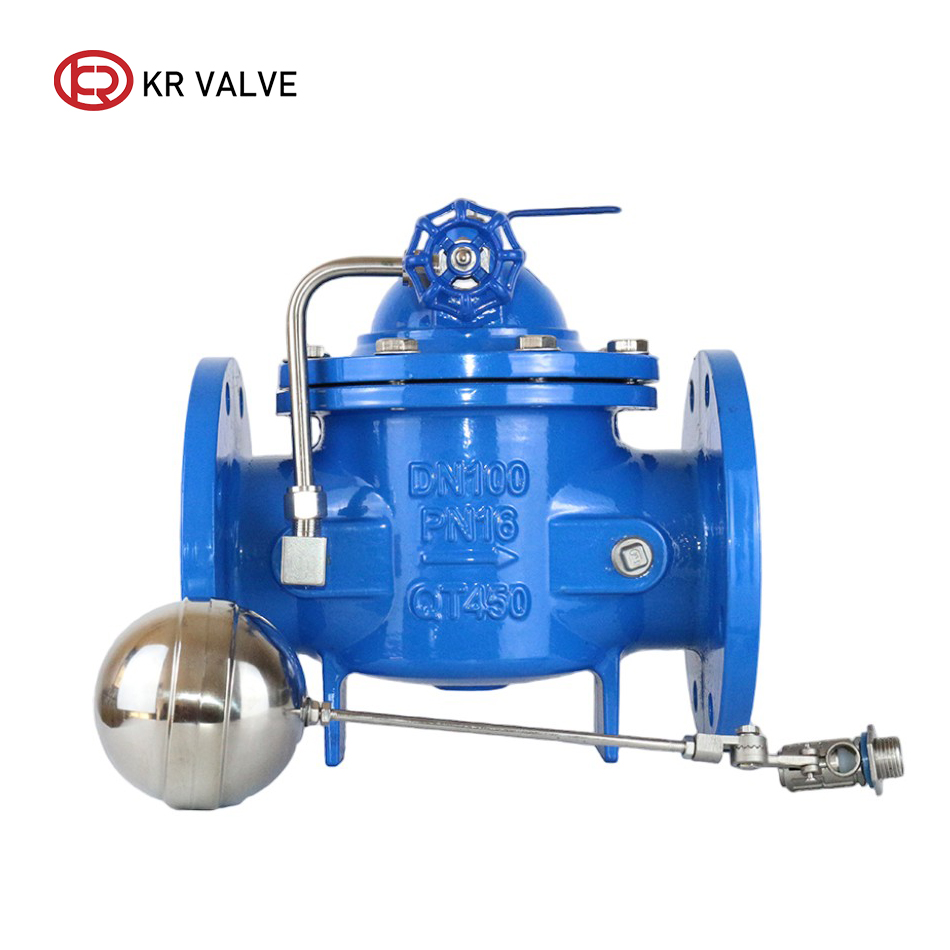

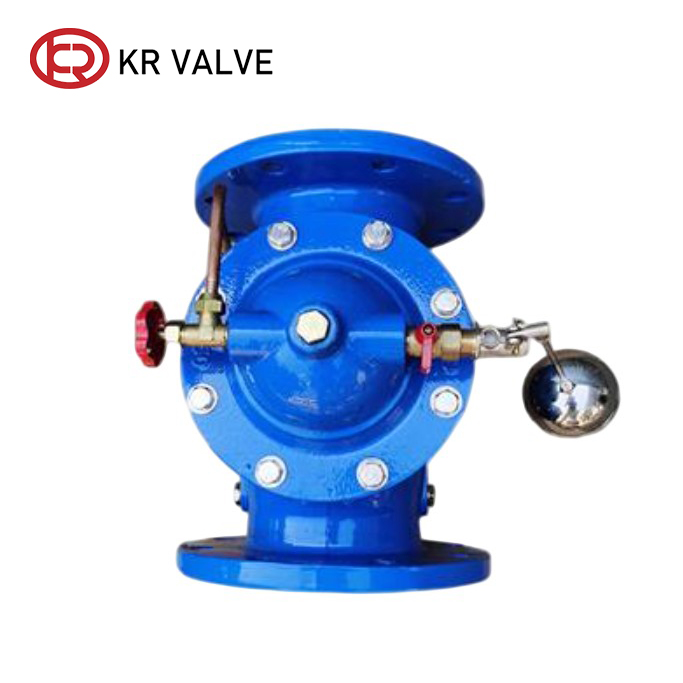

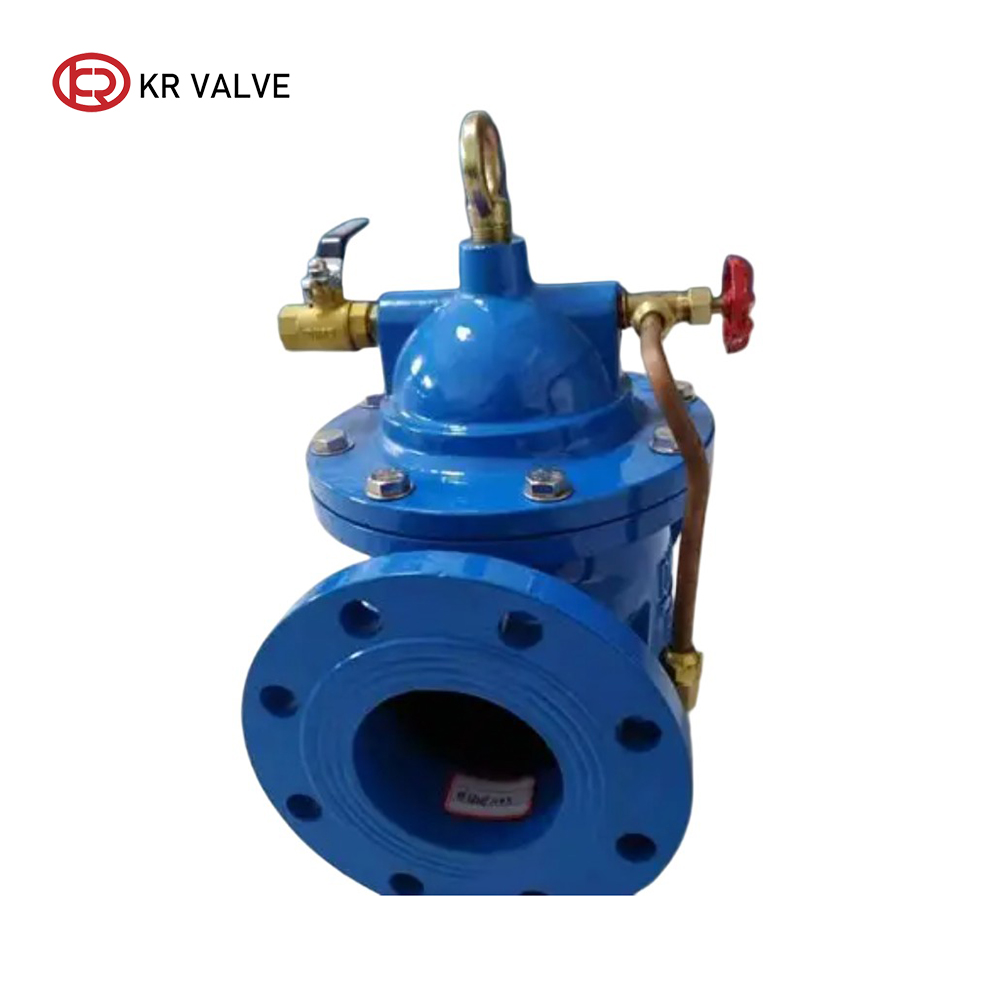

Custom Ggg50 Hydraulic Control Diaphragm Remote Float Valve Ball 100X Manufacturers, Factories
Product Description
Product Specifications

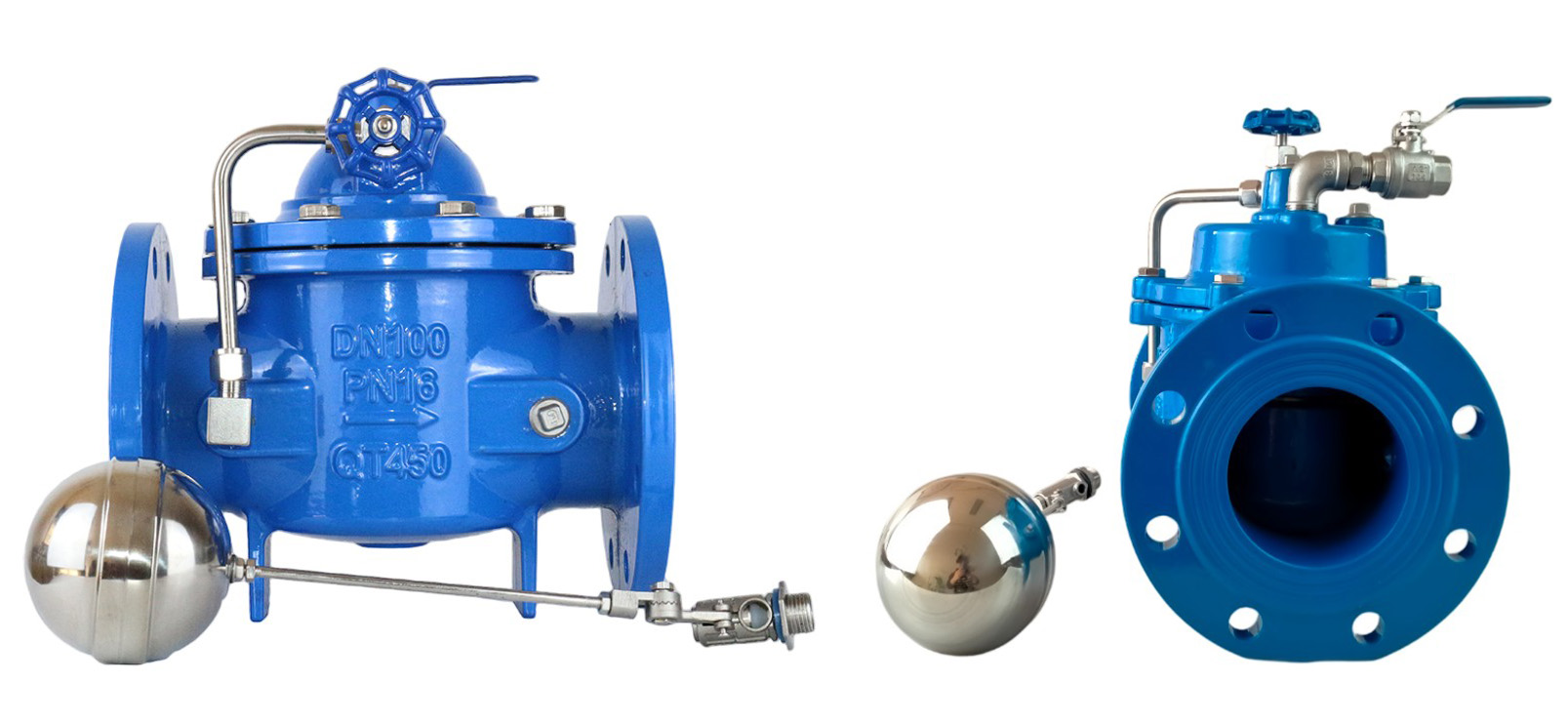

Characteristics
The main valve of remote control floating valve is installed in the inlet pipe, the float ball pilot valve is fixed in the pool according to the set liquid level, and the connecting conduit is equipped with filter, needle valve, ball valve and pressure gauge.

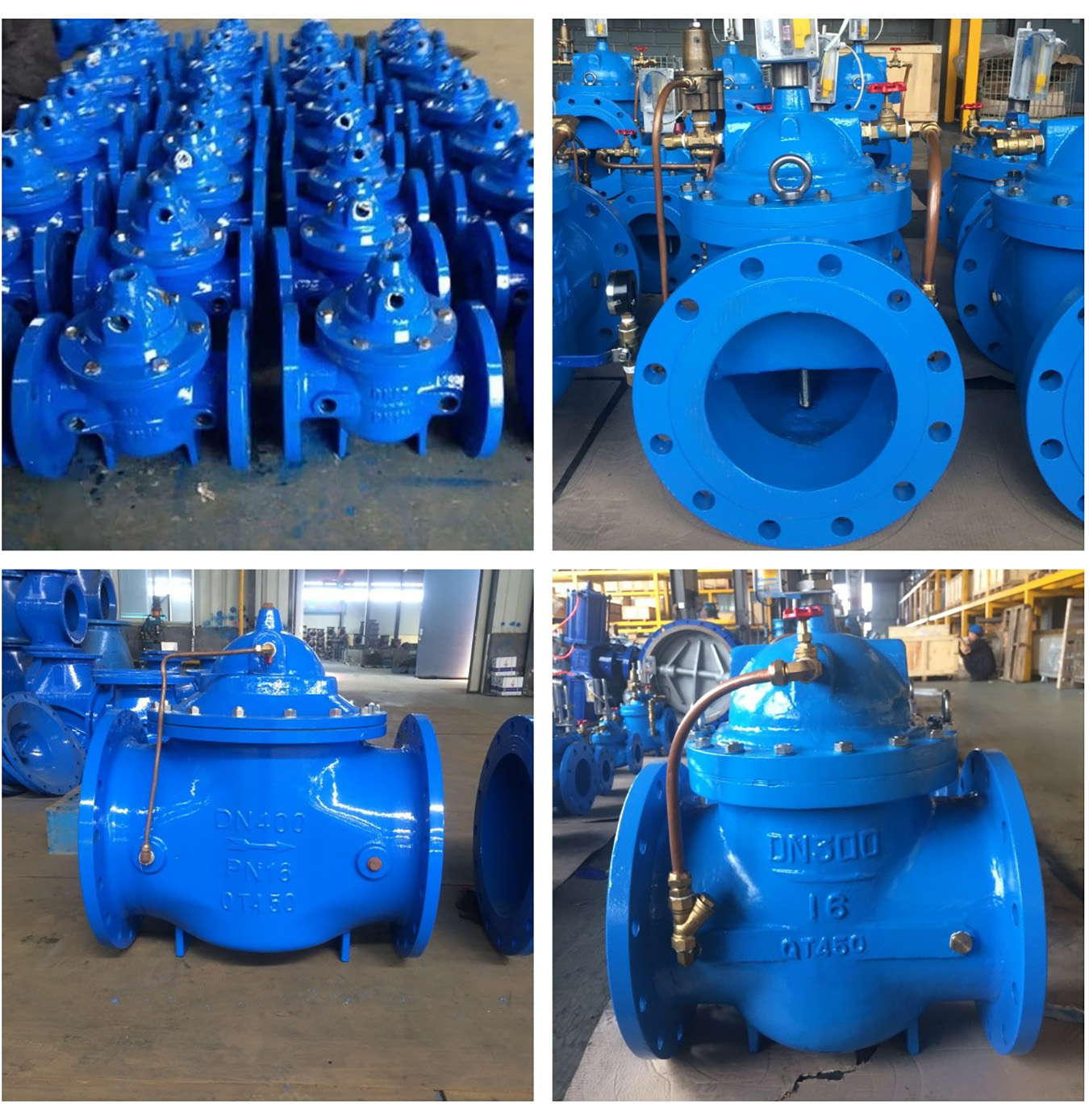

Key Advantages
The hydraulic valves body is made of cast iron, cast steel or stainless steel, which is resistant to corrosion and abrasion; The core sealing component adopts special elastic diaphragm, with excellent sealing performance and no leakage; No complex transmission parts in the internal structure, low failure probability and long maintenance period.
The opening and closing process of the Flow control valve is stable, no violent water hammer effect will be generated, and the pipe network and equipment can be effectively protected from impact damage; The matched filter can be installed to prevent impurities from entering the control pipeline and avoid valve blockage.
Routine maintenance only requires regular cleaning of the filter and inspection of the integrity of the float and diaphragm; During commissioning, the liquid level control accuracy can be fine-tuned by adjusting the needle valve, which is simple and requires no professional technicians.
Packing
Standard export wooden case packaging
Application Scenarios
The 100X hydraulic float valve is applied to the automatic water inlet control of various living/fire water pools and elevated water towers.
Material Specifications
| Part Name | Body | Stem | Seal | Ball |
|---|---|---|---|---|
| Material | Ductile iron, cast steel, Stainless steel | Stainless steel | EPDM / NBR | Stainless steel |

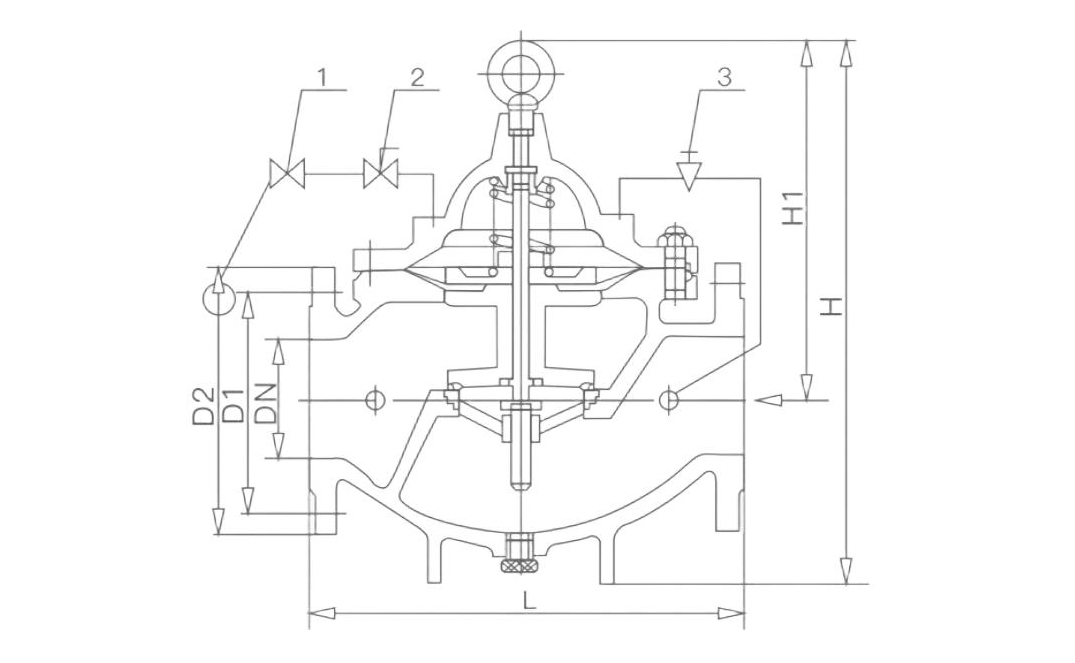

Dimensions & Performance Parameters
| DN Nominal Diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | PN1.0MPa | 241 | 234 | 280 | 360 | 430 | 455 | 585 | 790 | 900 | 900 | 962 | 962 | 1076 | 1232 | 1437 | 1750 |
| PN1.6MPa | 241 | 234 | 280 | 360 | 430 | 455 | 587 | 794 | 900 | 900 | 962 | 962 | 1076 | 1232 | 1437 | 1750 | |
| H1 | 152 | 145 | 167 | 232 | 288 | 342 | 413 | 502 | 600 | 600 | 685 | 685 | 880 | 1050 | 1225 | 1400 | |
| H | 250 | 250 | 271 | 375 | 455 | 502 | 636 | 781 | 913 | 913 | 1035 | 1035 | 1300 | 1535 | 1793 | 2022 | |
Frequently Asked Questions (FAQ)
The 100X hydraulic float valve is specially engineered for automatic liquid level regulation in water towers, elevated tanks, civil living water pools, and industrial fire protection reservoirs.
Its diaphragm-operated design enables a controlled, smooth opening and closing cycle. This prevents sudden pressure spikes, eliminating dangerous water hammer effects and safeguarding pipeline infrastructure.
No, the valve operates automatically using hydraulic line pressure generated by the medium itself, eliminating the need for electrical connection or motorized actuators.
The main body is available in Ductile Iron, Cast Steel, or Stainless Steel, depending on your project requirements for corrosion resistance and medium compatibility.
Routine servicing involves regularly cleaning the conduit filter to prevent clogging, alongside periodic visual checks of the float pilot valve and elastic diaphragm.
The standard working temperature range for the valve is suitable for water media operating between 0°C and 80°C.
