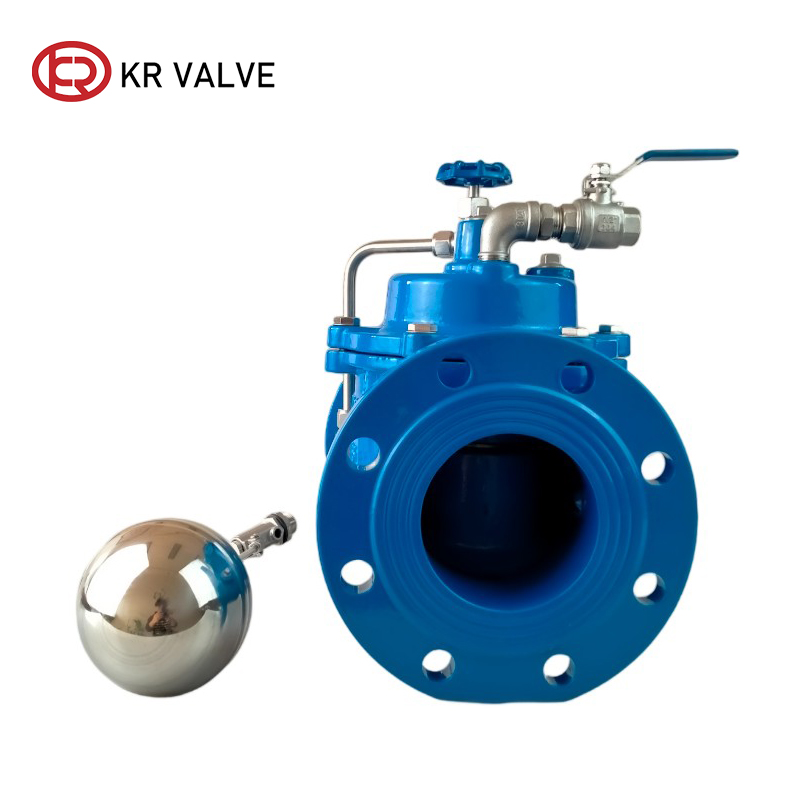

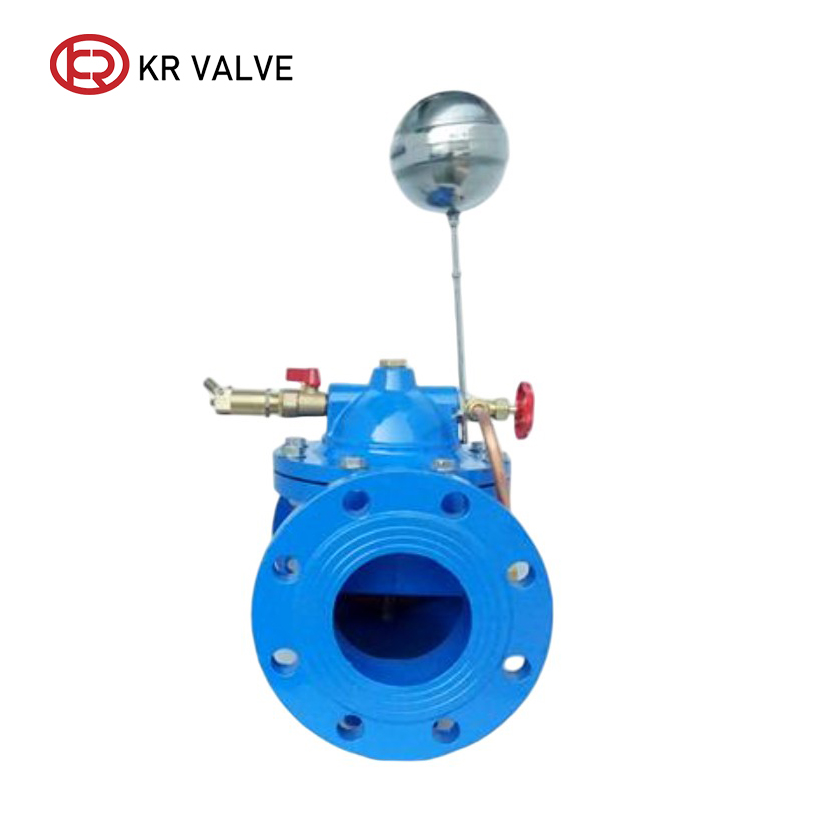

OEM Ductile iron hydraulic ball remote float valve Supplier, Suppliers
Product Description
Product Specifications
Characteristics
The main valve 100X hydraulic floating valve is equipped with a conduit control system, which can automatically control the liquid level of the water tower or pool through hydraulic operation. It is simple in maintenance, flexible and durable, with high accuracy of liquid level control, and the water level is not disturbed by the water pressure and closed tightly without leakage.
Key Advantages
It is only driven by the water pressure of the pipeline, which is energy-saving and suitable for the electricity-free scene.
The liquid level is not affected by the water pressure fluctuation, and the switch action is stable and reliable.
It can be randomly arranged according to the height and space of the pool, and it is convenient for maintenance and commissioning.
Good sealing performance of diaphragm/piston structure, ensuring long service life.
Packaging
Standard export wooden case packaging
Application Scenarios
The 100X hydraulic control valve is applied to liquid level maintenance of clean water tank and regulating tank of sewage treatment plant and water plant.
Material Specifications
| Part Name | Body | Stem | Seal | Ball |
|---|---|---|---|---|
| Material | Ductile iron, Cast steel, Stainless steel | Stainless steel | EPDM / NBR | Stainless steel |
Dimensions
| DN Nominal Diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | PN1.0MPa | 241 | 234 | 280 | 360 | 430 | 455 | 585 | 790 | 900 | 900 | 962 | 962 | 1076 | 1232 | 1437 | 1750 |
| PN1.6MPa | 241 | 234 | 280 | 360 | 430 | 455 | 587 | 794 | 900 | 900 | 962 | 962 | 1076 | 1232 | 1437 | 1750 | |
| H1 | 152 | 145 | 167 | 232 | 288 | 342 | 413 | 502 | 600 | 600 | 685 | 685 | 880 | 1050 | 1225 | 1400 | |
| H | 250 | 250 | 271 | 375 | 455 | 502 | 636 | 781 | 913 | 913 | 1035 | 1035 | 1300 | 1535 | 1793 | 2022 | |
Frequently Asked Questions
Q What is the function of the 100X Float Valve?
The 100X float valve automatically controls the liquid level in water towers or storage tanks using hydraulic pipeline pressure without requiring external power.
Q Does this valve require an electrical power supply to operate?
No, it operates entirely via pipeline water pressure, making it energy-efficient and ideal for locations without electricity.
Q What materials are available for the 100X Float Valve body?
The valve body can be constructed from Ductile Iron, Cast Steel, or Stainless Steel to suit different fluid environments.
Q What temperature range can the valve operate in?
The valve performs reliably within a working temperature range of 0°C < T < 80°C.
Q Does fluctuations in water pressure affect the liquid level control accuracy?
No, the liquid level control remains highly accurate and undisturbed by water pressure variations, maintaining zero leakage when closed.
Q Where is the 100X hydraulic control valve typically applied?
It is primarily used for maintaining water levels in clean water tanks and regulating tanks within water plants and sewage treatment facilities.
