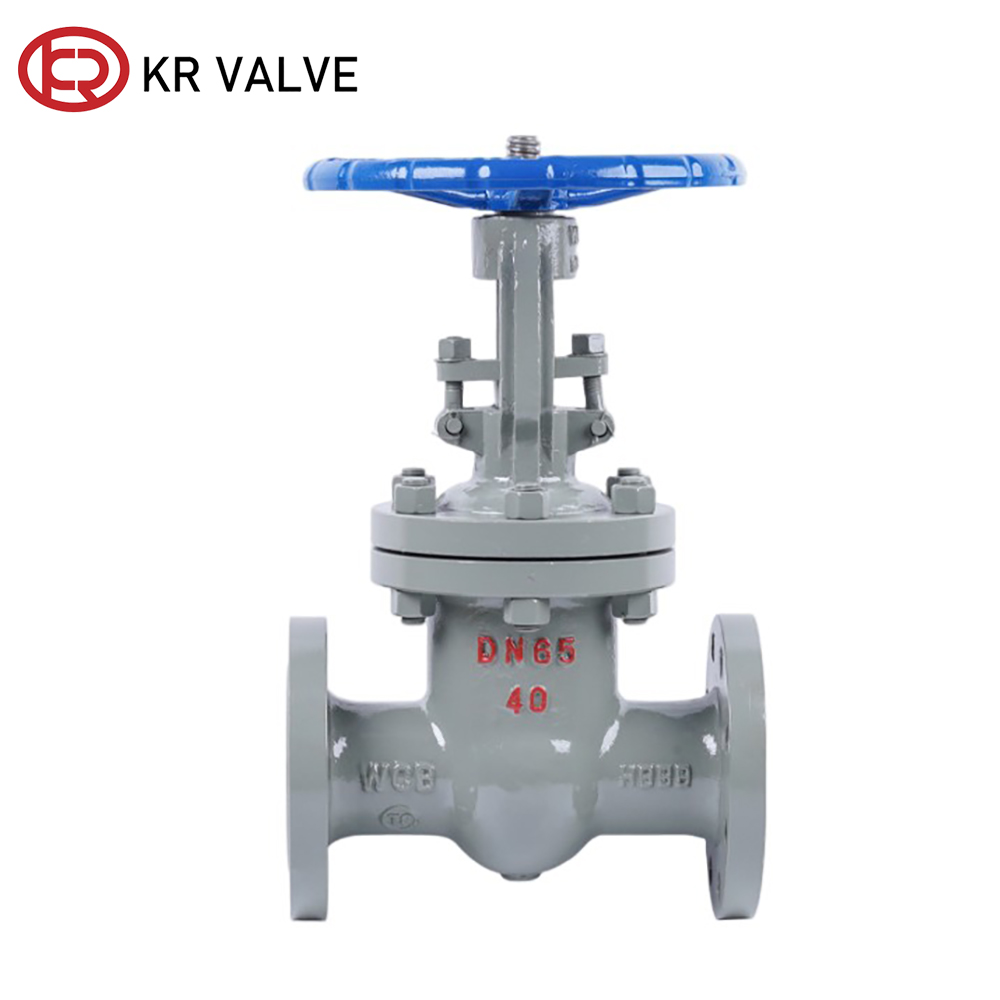

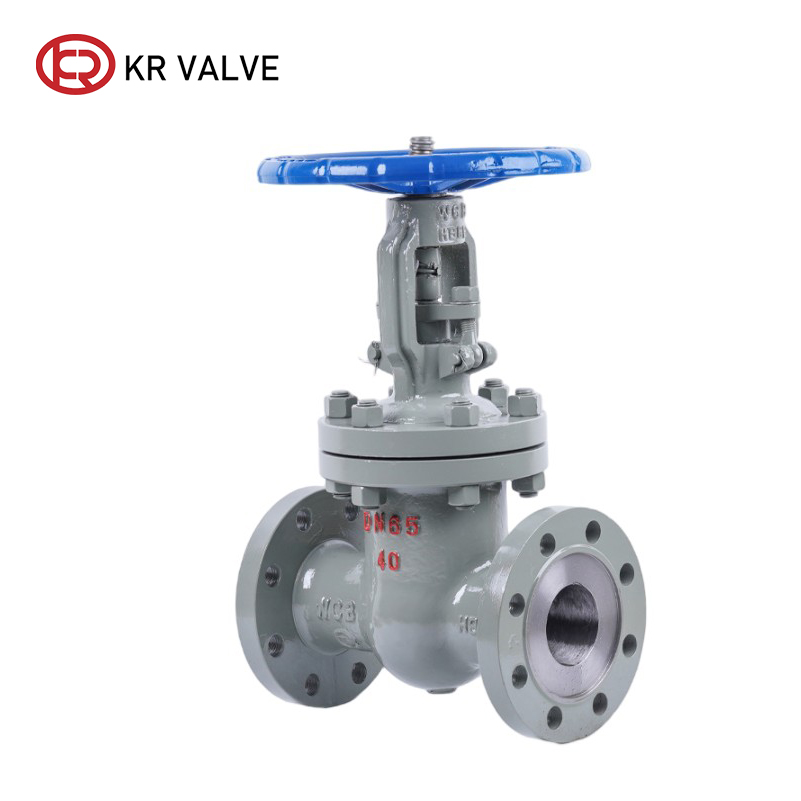

OEM WCB sluice valve ANSI150LB high temperature industrial valve Supplier, Factory

1 / 2

OEM WCB sluice valve ANSI150LB high temperature industrial valve Supplier, Factory

Type: Metal to metal seated

Series: Z45H-150LB/300LB

Size: DN50-DN1000/2”-40”

Pressure rating: PN16/PN25/150LB/300LB/600LB

Design standard: BS/API/DIN

Service: OEM&ODM

The WCB gate valve has good mechanical strength and wear resistance, suitable for working conditions of medium and low pressure, room temperature to medium temperature.

Send Inquiry

Product Description

Valve Type

Metal seat gate valve

Structure

Non-rising type

Standard

EN/API/DIN/GOST

Workmanship

Investment casting

Sealing Direction

Bidirectional

Sealing Grade

Zero leakage

Temperature

-30°C < T < 425°C

Operation

Handwheel

Characteristics

The gate valve body is made of WCB carbon steel castings, which have excellent welding performance and mechanical processing performance. The tensile strength is 485~655MPa, and it can withstand a temperature range of -29 ℃~427 ℃. It is suitable for non corrosive media such as water, steam, oil, natural gas, etc., and its cost-effectiveness is better than that of alloy valves.

Advantages

1. Excellent material mechanical properties and strong adaptability to working conditions

The tensile strength is 485-655MPa, the yield strength is ≥ 250MPa, and the elongation is ≥ 22%. It has both rigidity and toughness, and can withstand opening and closing impacts and pressure fluctuations. It is not easy to deform or fracture after long-term operation.

2. High temperature resistance, wide range of applications

Applicable temperature -29 ℃ to 427 ℃, suitable for conventional media such as water, steam, oil, natural gas, etc., with a conventional design pressure of ≤ 10MPa, suitable for most working conditions of PN16-PN420 (Class150-Class2500).

3. Corrosion resistance and long service life

Corrosion resistance is better than ordinary carbon steel in non oxidizing environments, and the sealing surface can be welded with hard alloy (such as STL) to further enhance wear resistance and corrosion resistance.

Packing

Standard export wooden case packaging

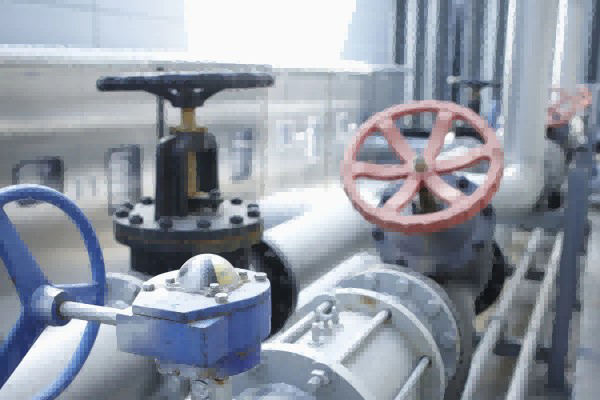

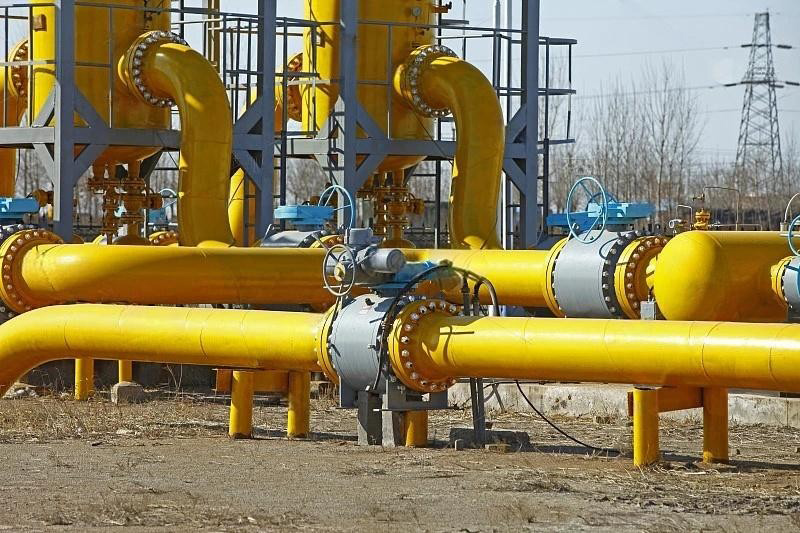

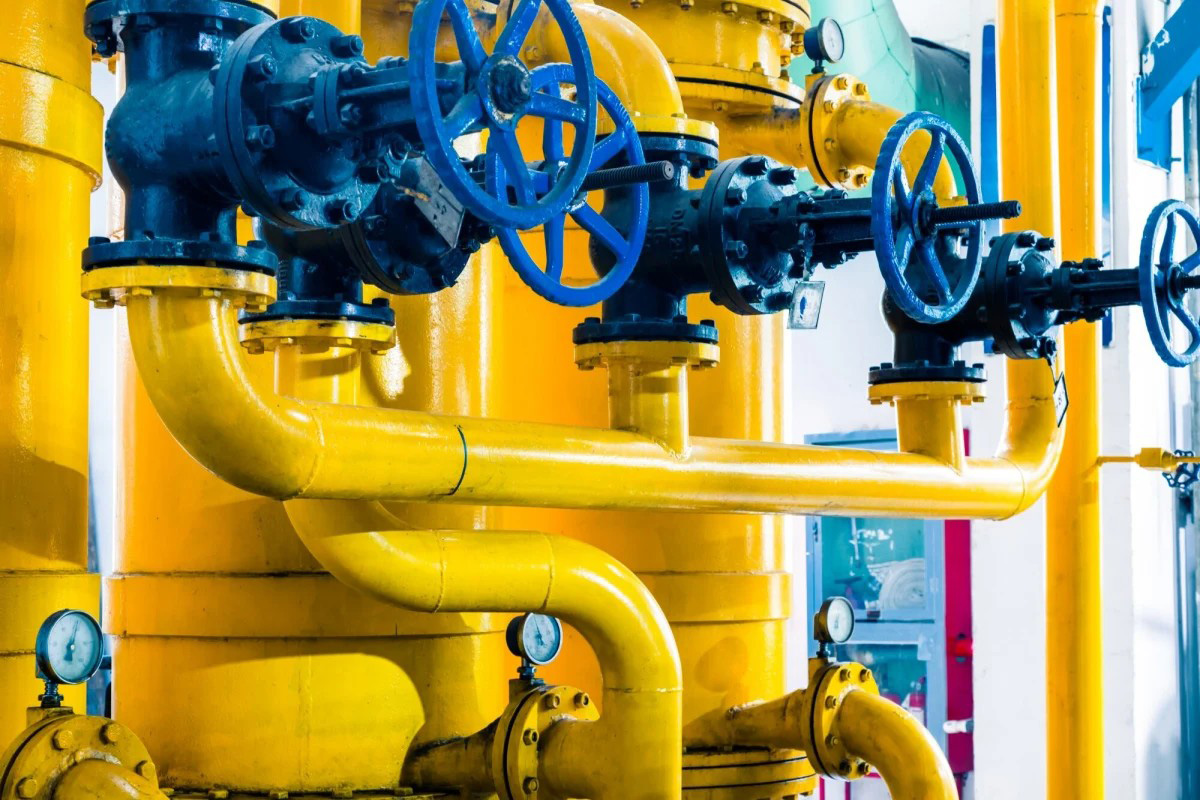

Application Scenarios

Widely applicable as an opening and closing device for connecting or cutting off the medium in oil and steam pipelines such as petrochemicals, metallurgy, water treatment, and thermal power plants.

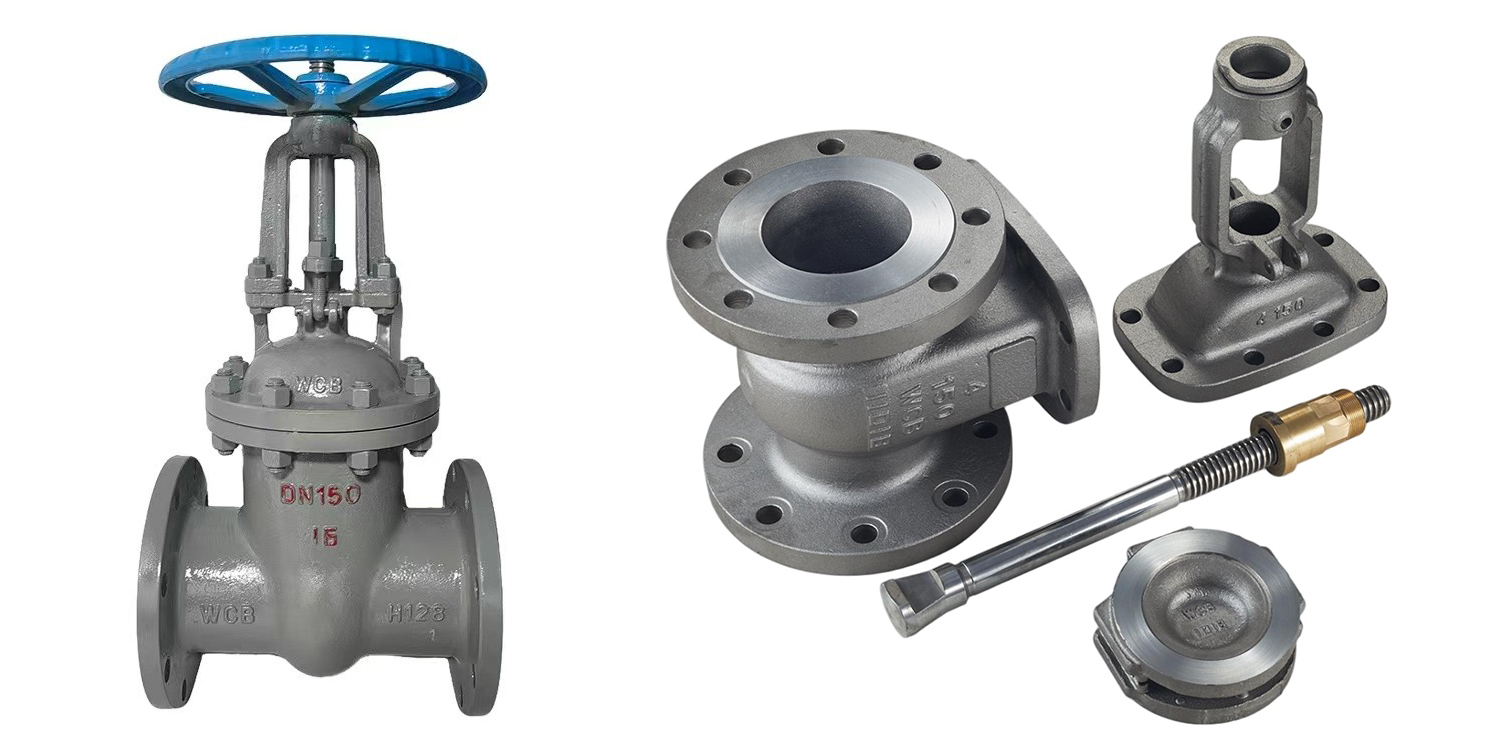

Material Specifications

Valve body / valve cover	Gate board / seat	Stem	Stem nut	Padding	Handwheel
Carbon steel	Quality carbon steel + carbide alloy or stainless steel	Chrome stainless steel	Aluminum bronze	Graphite asbestos packing	Malleable iron ductile Iron
Ti-Cr-Ni steel	Stainless steel, stainless steel or carbide alloy	Ti-Cr-Ni stainless steel	Aluminum bronze	Baptist PTFE	Malleable iron ductile Iron
Ti-Cr-Ni-Mo steel	Stainless steel, stainless steel or carbide alloy	Ti-Cr-Ni stainless steel	Aluminum bronze	Asbestos packing	Malleable iron ductile Iron
Cr-Mo steel	Alloy Steel + carbide alloy	Al-Cr-Mo steel 318 (anti-S series)	Aluminum bronze	Flexible Graphite Filled PTFE (anti-S series)	Malleable iron ductile Iron

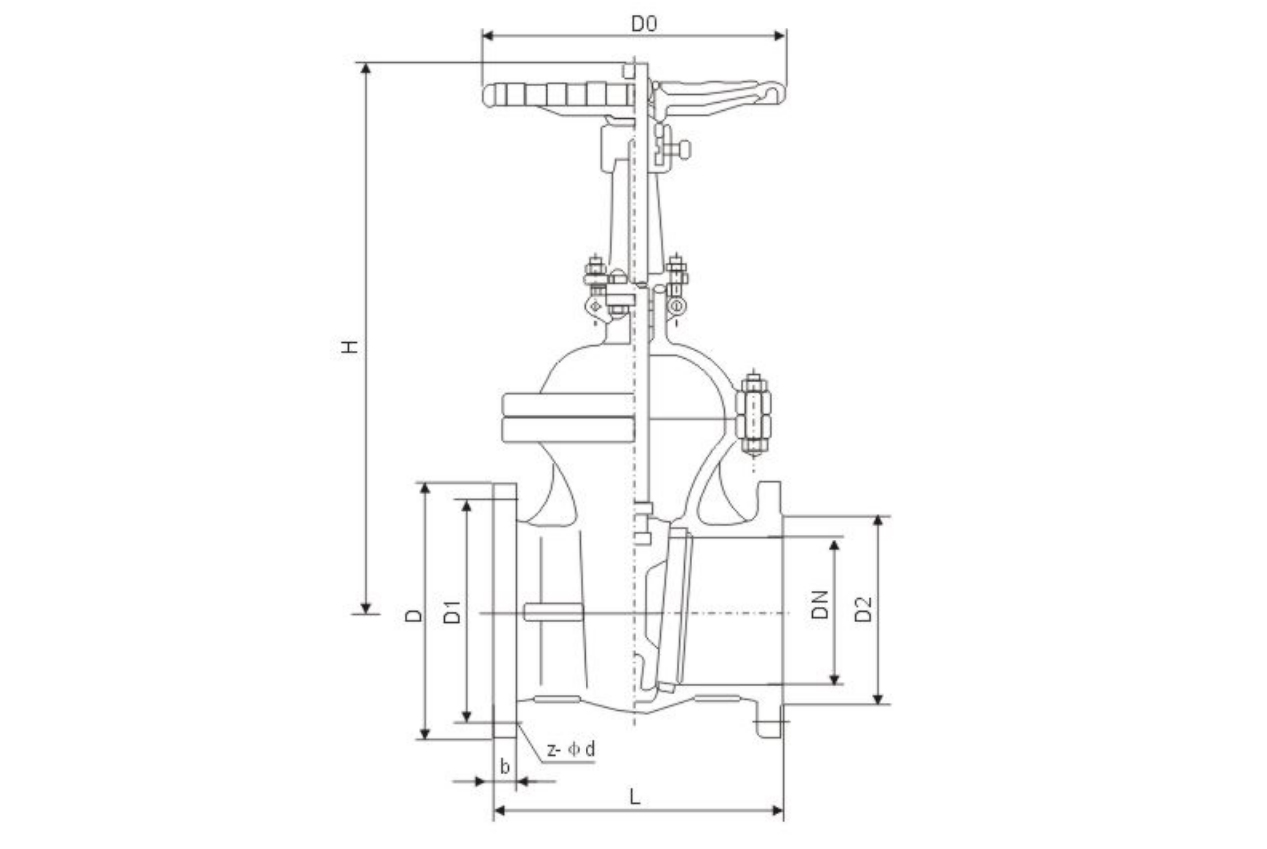

Dimensions

PN (MPa)	DN (mm)	L	D	D1	D2	D6	b	f	f2	N-φd	H	H1	D0
1.6	15	130	95	65	45	-	14	2	-	4-φ14	220	240	120
	20	150	105	75	55	-	14	2	-	4-φ14	255	284	140
	25	160	115	85	65	-	14	2	-	4-φ14	275	303	160
	32	180	135	100	78	-	16	2	-	4-φ18	280	321	180
	40	200	145	110	85	-	16	3	-	4-φ18	300	352	200
	50	250	160	125	100	-	16	3	-	4-φ18	358	438	240
	65	265	180	145	120	-	18	3	-	4-φ18	375	450	240
	80	280	195	160	135	-	20	3	-	8-φ18	433	528	280
	100	300	215	180	155	-	20	3	-	8-φ18	502	620	320
	125	325	245	210	185	-	22	3	-	8-φ18	612	753	360
	150	350	280	240	210	-	24	3	-	8-φ23	676	847	360
	200	400	335	295	265	-	26	3	-	12-φ23	820	1039	400
	250	450	405	355	320	-	40	3	-	12-φ25	969	1245	450
	300	500	460	410	375	-	40	3	-	12-φ25	1142	1472	560
	350	550	520	470	435	-	34	4	-	16-φ25	1280	1450	640
	400	600	580	525	485	-	36	4	-	16-φ30	1452	1887	640
	450	650	640	585	545	-	40	4	-	20-φ30	1541	2011	720
	500	700	705	650	608	-	44	4	-	20-φ30	1676	2181	720
	600	800	840	770	718	-	48	5	-	20-φ41	1874	2346	800
2.5	15	130	95	65	45	-	16	2	-	4-φ14	220	240	120
	20	150	105	75	55	-	16	2	-	4-φ14	255	284	140
	25	160	115	85	65	-	16	2	-	4-φ14	275	303	160
	32	180	135	100	78	-	18	2	-	4-φ18	280	321	180
	40	200	145	110	85	-	18	3	-	4-φ18	300	352	200
	50	250	160	125	100	-	20	3	-	4-φ18	358	438	240
	65	265	180	145	120	-	22	3	-	8-φ18	375	450	240
	80	280	195	160	135	-	22	3	-	8-φ18	433	528	280
	100	300	230	190	160	-	24	3	-	8-φ23	502	620	320
	125	325	270	220	188	-	28	3	-	8-φ25	612	753	360
	150	350	300	250	218	-	30	3	-	8-φ25	676	847	360
	200	400	360	310	278	-	34	3	-	12-φ25	820	1039	400
	250	450	425	370	332	-	36	3	-	12-φ30	969	1245	450
	300	600	485	430	390	-	40	4	-	16-φ30	1142	1472	560
	350	550	550	490	448	-	44	4	-	16-φ34	1280	1450	640
	400	600	610	550	505	-	48	4	-	16-φ34	1452	1887	640
	450	650	660	600	555	-	50	4	-	20-φ34	1541	2011	720
	500	700	730	660	610	-	52	4	-	20-φ41	1676	2181	720
	600	800	840	770	718	-	56	5	-	20-φ41	1874	2346	800
4.0	20	150	105	75	55	51	16	2	4	4-φ14	256	285	140
	25	160	115	85	65	58	16	2	4	4-φ14	275	305	160
	32	180	135	100	78	66	18	2	4	4-φ18	287	322	180
	40	200	145	110	85	76	18	3	4	4-φ18	323	369	200
	50	250	160	125	100	88	20	3	4	4-φ18	372	440	280
	65	280	180	145	120	110	22	3	4	8-φ18	395	473	280
	80	310	195	160	135	121	22	3	4	8-φ18	457	552	320
	100	350	230	190	160	150	24	3	4.5	8-φ23	552	671	360
	125	400	270	220	188	176	28	3	4.5	8-φ25	634	726	400
	150	450	300	250	218	204	30	3	4.5	8-φ25	708	883	400
	200	550	375	320	282	260	38	3	4.5	8-φ30	858	1086	450
	250	650	445	385	345	313	42	3	4.5	12-φ34	1015	1298	560
	300	750	510	450	408	364	46	4	4.5	12-φ34	1203	1535	640
	350	850	570	510	465	422	52	4	5	16-φ34	1341	1678	640
	400	950	655	585	535	474	58	4	5	16-φ41	1492	1903	720

Frequently Asked Questions (FAQ)

What temperature range can this gate valve handle?

The valve operates efficiently across a broad temperature range of -30°C to 425°C, with carbon steel casting variants suitable for conditions from -29°C to 427°C.

What types of media are compatible with this metal seat gate valve?

It is ideal for non-corrosive media, including water, steam, oil, natural gas, and related fluid pipelines in industrial systems.

Which international manufacturing standards are met?

Our gate valves are designed and tested in full compliance with EN, API, DIN, and GOST global engineering standards.

What makes WCB carbon steel better than standard alloy valves?

WCB carbon steel provides superior cost-effectiveness while retaining tensile strength between 485-655MPa, excellent weldability, and strong resistance against pressure fluctuations.

What sealing performance grade does this valve offer?

This valve features bidirectional sealing capability with a zero-leakage sealing grade, ensured by optional hard alloy (STL) surface welding.

How is the product packaged for international delivery?

All valves are packed using standard export-grade wooden cases to safeguard components against impact and moisture during transit.
