Product Description
Product Specifications Overview
Characteristics

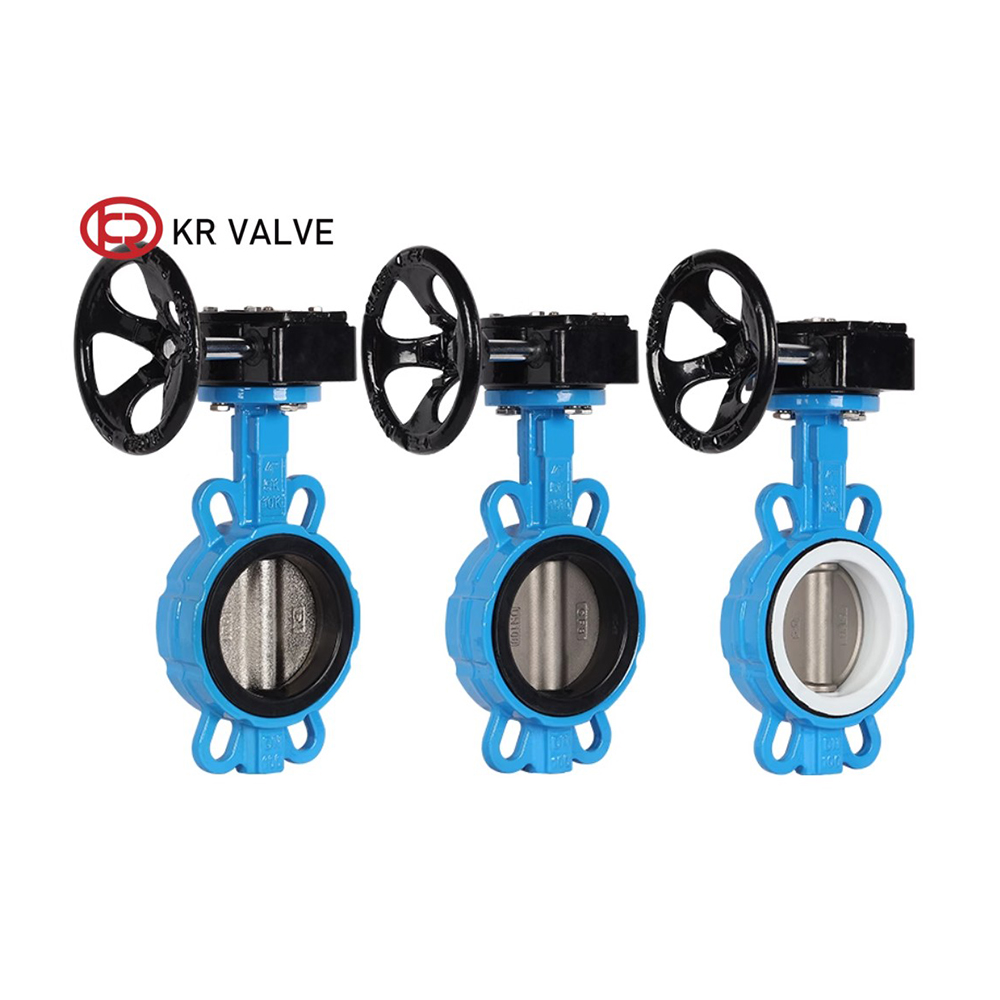

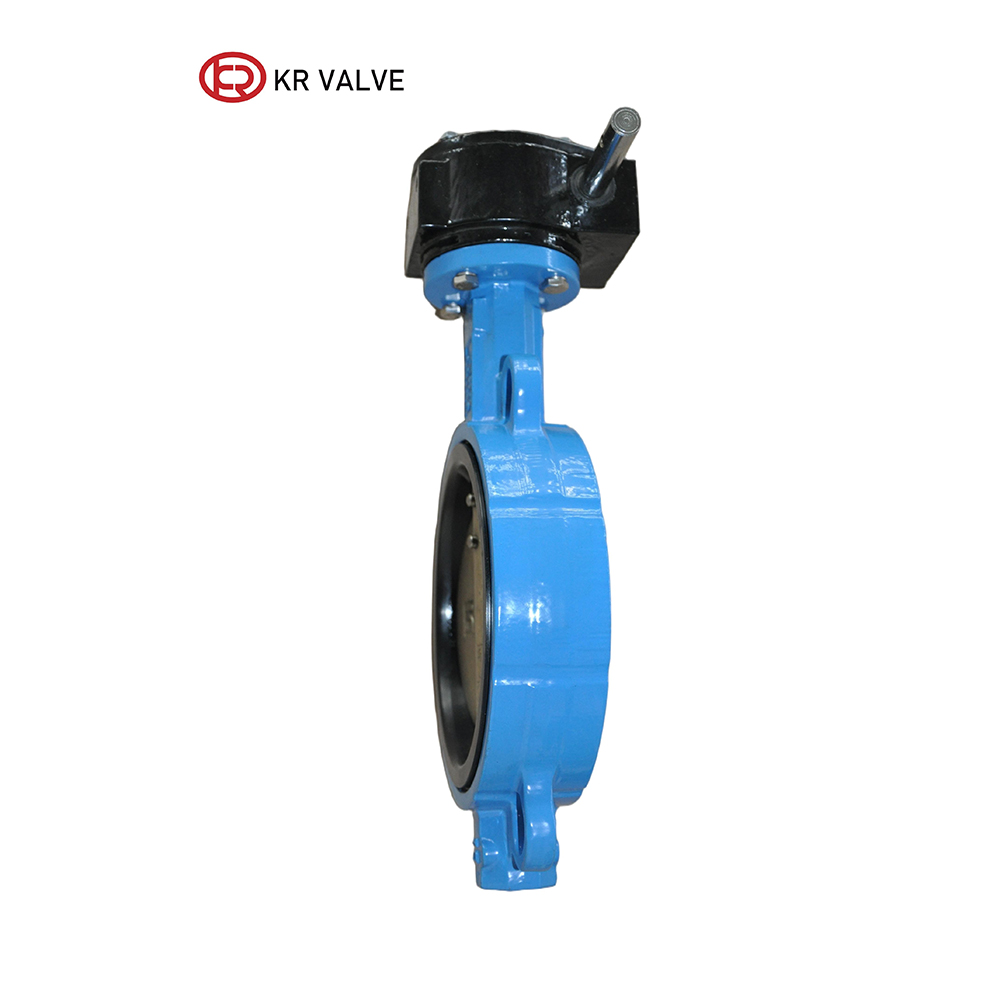

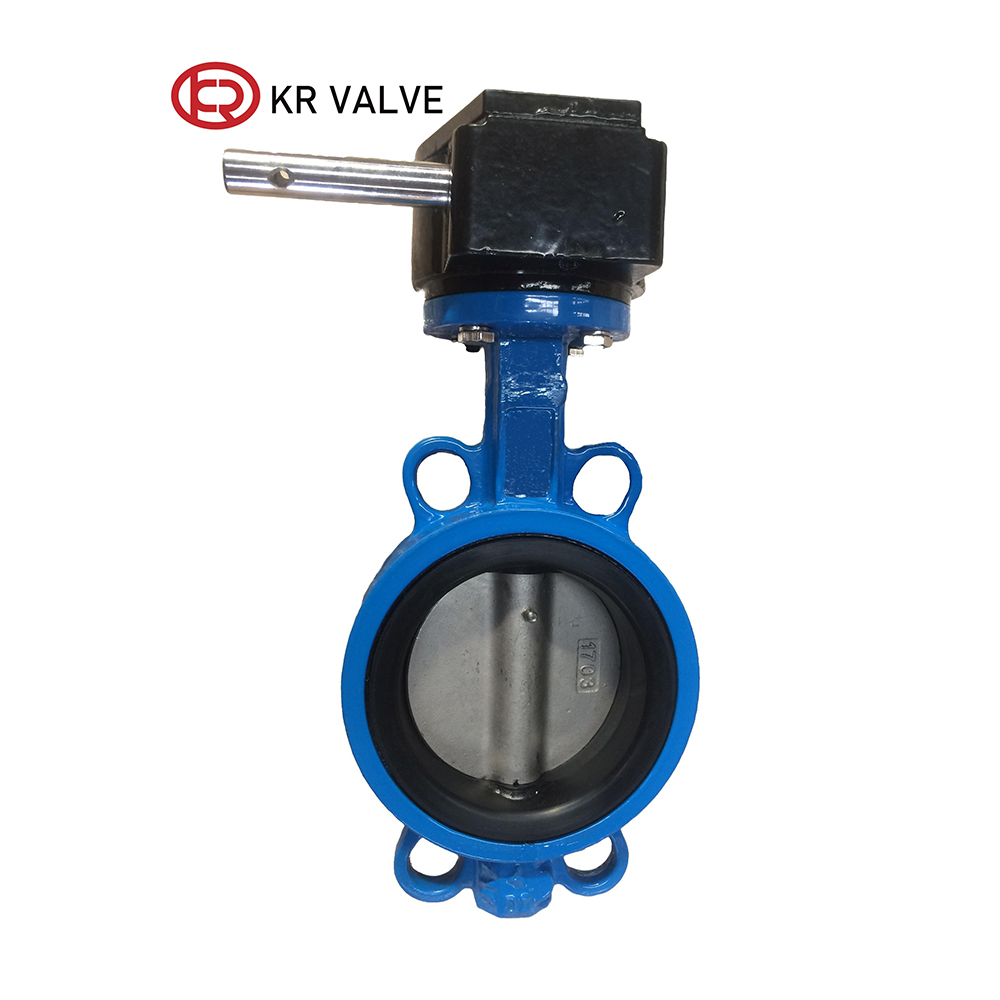

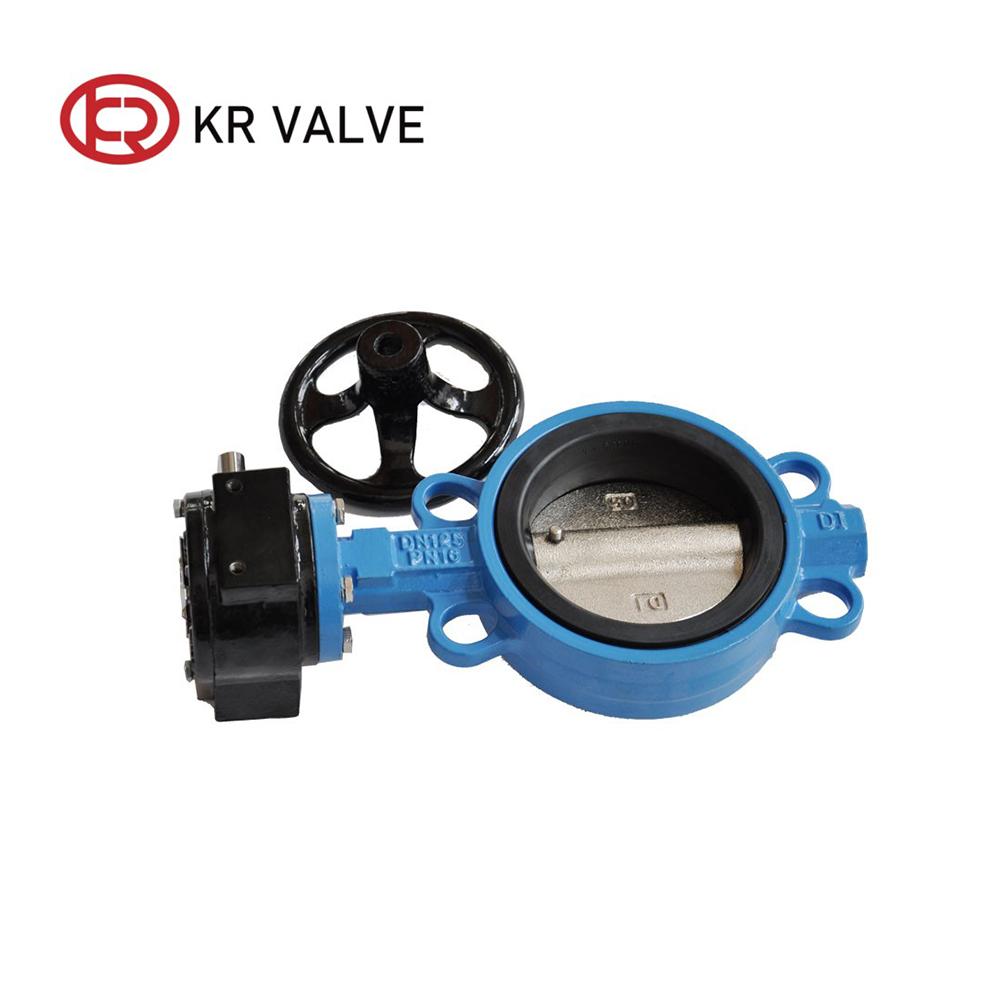

This gear box operated butterfly valve employs a wafer connection method, being fastened between two pipeline flanges with double-headed bolts. Its structure is compact, with a small footprint and lightweight design.

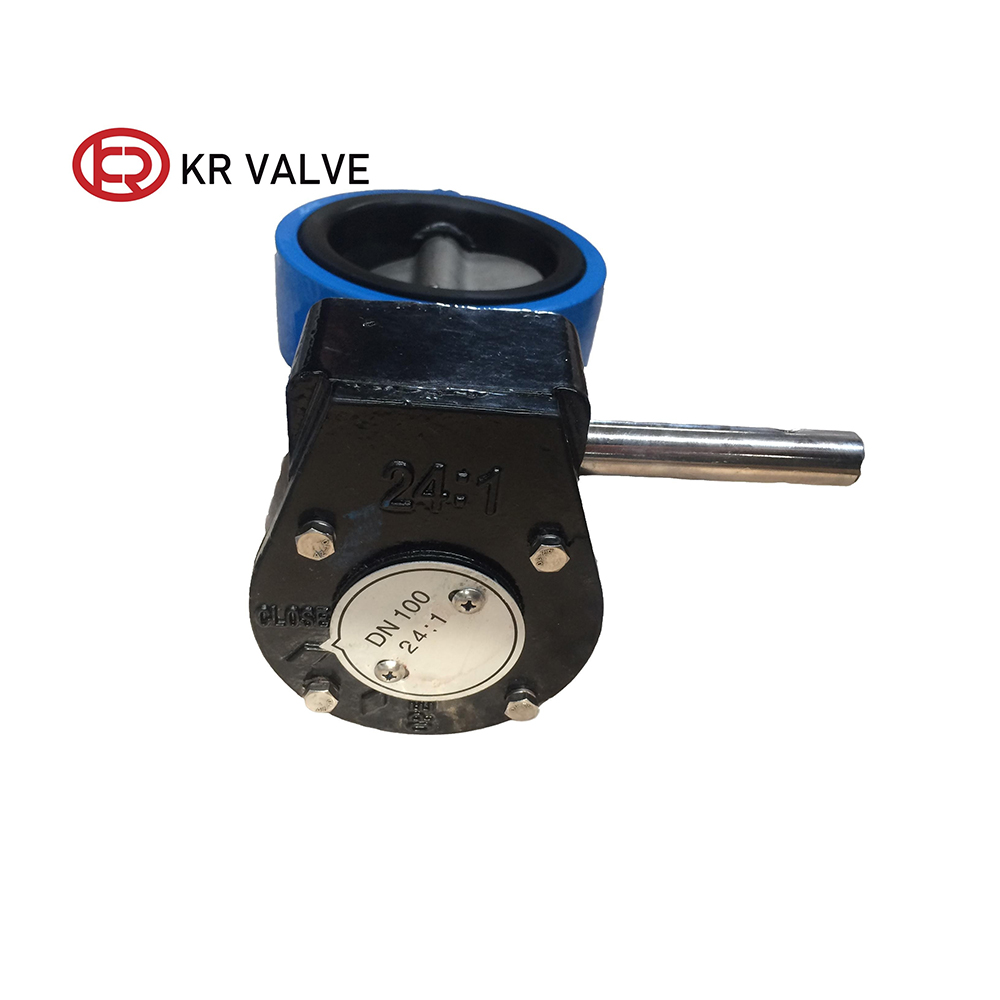

The worm gear transmission mechanism is mounted at the valve’s top as standard to ensures reliable operation. Additionally, the valve is engineered with a concentric layout, where the valve stem, butterfly plate, and valve body share a common central axis.
Advantages
90° Quick Operation
The opening and closing mechanism (butterfly plate) only needs to rotate 90 degrees to change from fully open to fully closed, with fast and sensitive action.
Low Torque Operation
Due to its simple structure and low resistance, the required operating torque is small. Easily equipped with manual, pneumatic, or electric actuators for automation control.
Flow Regulation
By partially opening the butterfly plate, flow regulation can be easily performed, offering excellent linear adjustment characteristics.
Easy Maintenance
Features a bidirectional sealing design and replaceable valve seat. Maintenance or core replacement requires no removal of the whole valve body from the pipeline.
Material Specifications
| Body | Plate | Rotating Shaft | Bushing | Seat | Operating Temperature (℃) |
|---|---|---|---|---|---|
| Ductile Iron | Electroplated Nodular Cast Iron | Stainless Steel | PTFE | EPDM Rubber | -45～+135 (Short-time -50～+150) |
| Ductile Iron | Ductile Iron | Carbon Steel | PTFE | Hypalon | -18～+135 (Short-time -18～+149) |
| Aluminum Bronze | Stainless Steel | - | - | EPDM Rubber | -45～+135 (Short-time -50～+150) |
| Stainless Steel | Titanium Steel | - | - | Neoprene Rubber | -7～+93 (Short-time -7～+107) |
| CF8M Stainless Steel | CF8M Stainless Steel | - | - | NBR Rubber | -12～82 (Short-time -12～+93) |
| Carbon Steel | Carbon Steel | - | - | Abrasion-Resistant Rubber | -10～+50 |
| - | CF8M Stainless Steel | - | - | Fluororubber | -23～+150 |
| - | - | - | - | Heat-Resistant EPDM Rubber | -20～+150 |
| - | - | - | - | PTFE | +10～+150 |
Dimensions
| DN | A | B | C | D | L | H | D1 | n- φ | K | E | n1- φ 1 | φ 2 | G | n2-M | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | ||||||||||||||
| 50 | 2” | 161 | 80 | 42 | 52.9 | 32 | 84.84 | 120 | 4- φ 23 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 118 | - |
| 65 | 2.5" | 175 | 89 | 44.7 | 64.5 | 32 | 96.2 | 136.2 | 4- φ 26.5 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 137 | - |
| 80 | 3” | 181 | 95 | 45.2 | 78.8 | 32 | 61.23 | 160 | 8- φ 18 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 143 | - |
| 100 | 4” | 200 | 114 | 52.1 | 104 | 32 | 70.80 | 185 | 4- φ 24.5 | 92 | 69.85 | 4- φ 10.3 | 15.77 | 156 | - |
| 125 | 5" | 213 | 127 | 54.4 | 123.3 | 32 | 82.28 | 215 | 4- φ 23 | 92 | 69.85 | 4- φ 10.3 | 18.92 | 190 | - |
| 150 | 6" | 226 | 139 | 55.8 | 155.6 | 32 | 91.08 | 238 | 4- φ 25 | 92 | 69.85 | 4- φ 10.3 | 18.92 | 212 | - |
| 200 | 8" | 260 | 175 | 60.6 | 202.5 | 45 | 112.89 76.35 | 295 | 4- φ 25 4- φ 23 | 115 | 88.9 | 4- φ 14.3 | 22.1 | 268 | - |
| 250 | 10" | 292 | 203 | 65.6 | 250.5 | 45 | 92.40 | 357 | 4- φ 29 | 115 | 88.9 | 4- φ 14.3 | 28.45 | 325 | - |
| 300 | 12" | 337 | 242 | 76.9 | 301.6 | 45 | 105.34 | 407 | 4- φ 29 | 140 | 107.95 | 4- φ 14.3 | 31.6 | 403 | - |
| 350 | 14" | 368 | 267 | 76.5 | 333.3 | 45 | 91.11 | 467 | 4- φ 30 | 140 | 107.95 | 4- φ 14.3 | 31.6 | 436 | - |
| 400 | 16’ | 400 | 309 | 86.5 | 389.6 | 51.2 72 | 100.47 102.42 | 515 525 | 4- φ 26 4- φ 30 | 197 | 158.75 | 4- φ 20.6 | 33.15 | 488 | - |
| 450 | 18" | 422 | 328 | 105.6 | 440.51 | 51.2 72 | 88.39 91.51 | 565 585 | 4- φ 26 4- φ 30 | 197 | 158.75 | 4- φ 20.6 | 38 | 539 | - |
| 500 | 20" | 480 | 361 | 131.8 | 491.6 | 64.2 82 | 95.99 101.68 | 620 650 | 4- φ 26 4- φ 33 | 197 | 158.75 | 4- φ 20.6 | 41.15 | 593 | - |
| 600 | 24" | 562 | 459 | 152 | 592.5 | 70.2 82 | 113.42 120.46 | 725 770 | 20- φ 30 20- φ 36 | 276 | 215.9 | 4- φ 22.2 | 50.65 | 816 | - |
| 700 | 28" | 624 | 520 | 163 | 695 | 66 82 | 109.65 840 | 840 | 24- φ 30 20- φ 36 | 300 | 254 | 8- φ 18 | 55 63.35 | 895 | 4-M33 |
| 800 | 32" | 672 | 591 | 188 | 794.7 | 66 82 | 124 950 | 950 | 24- φ 33 24- φ 39 | 300 | 254 | 8- φ 18 | 55 63.35 | 1015 | - |
| 900 | 36" | 720 | 656 | 203 | 864.7 | 118 | 117.57 | 1050 | 24- φ 33 | 300 | 254 | 8- φ 18 | 75 | 1115 | 4-M30 |
| 1000 | 40" | 800 | 721 | 216 | 965 | 142 | 129.89 | 1160 | 24- φ 36 | 300 | 254 | 8- φ 18 | 85 | 1230 | 4-M33 |
Packing
Standard export wooden case packaging.
Application Scenarios
This valve finds broad application in general industries such as petroleum, gas, chemical, and water treatment, as well as in thermal power plant cooling water systems. Furthermore, it is applicable to pipeline systems in metallurgy, municipal engineering, and related sectors, serving to cut off or regulate the flow of media including air, water, steam, and oils.
