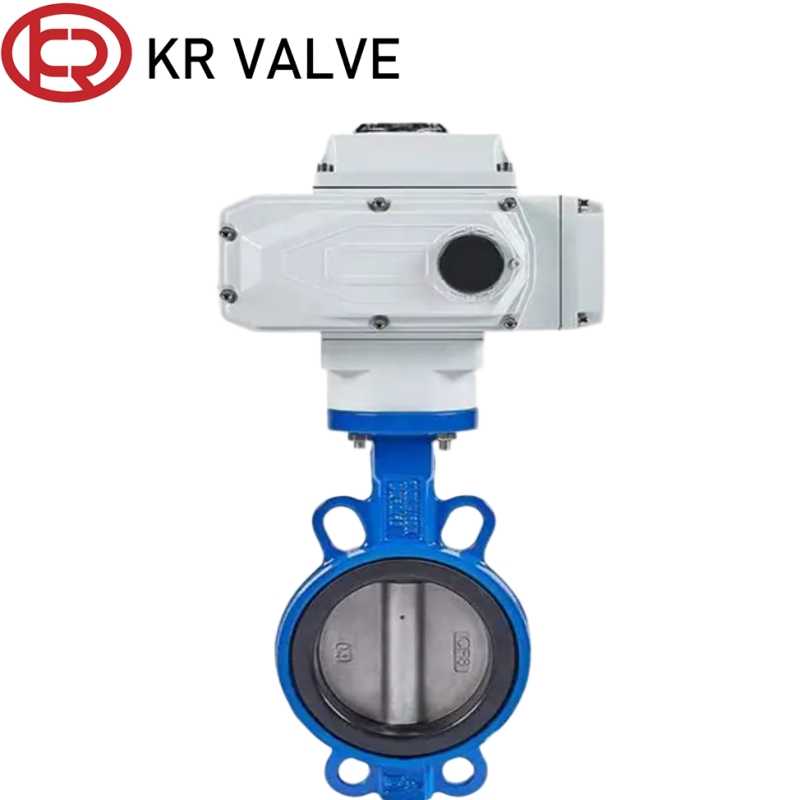

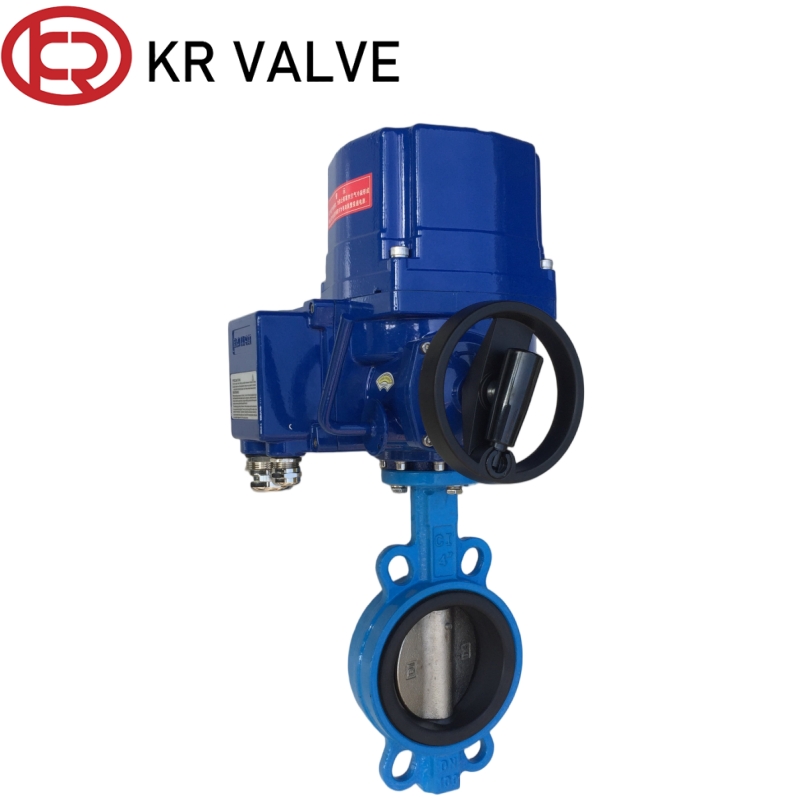

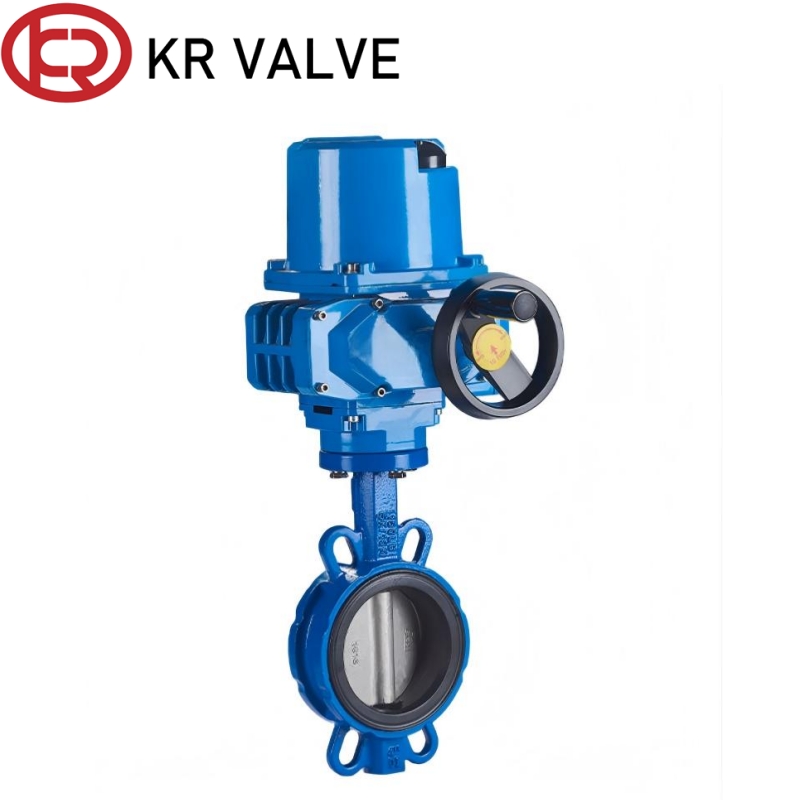

Product Description
Technical Specifications
Characteristics

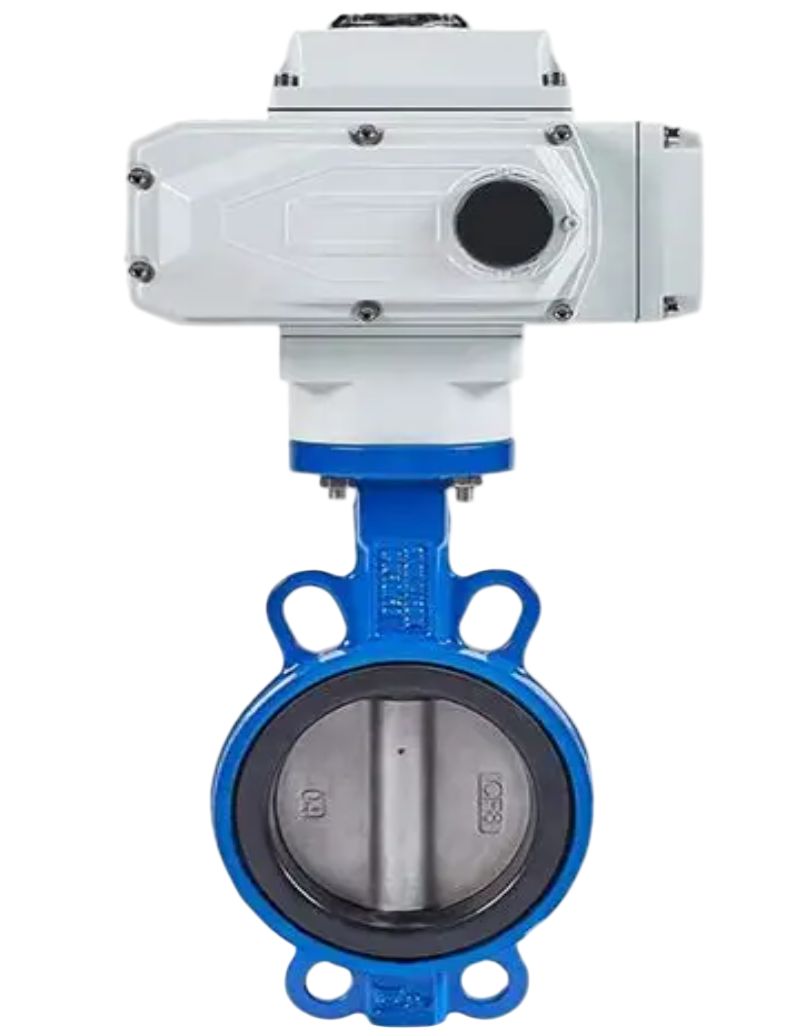

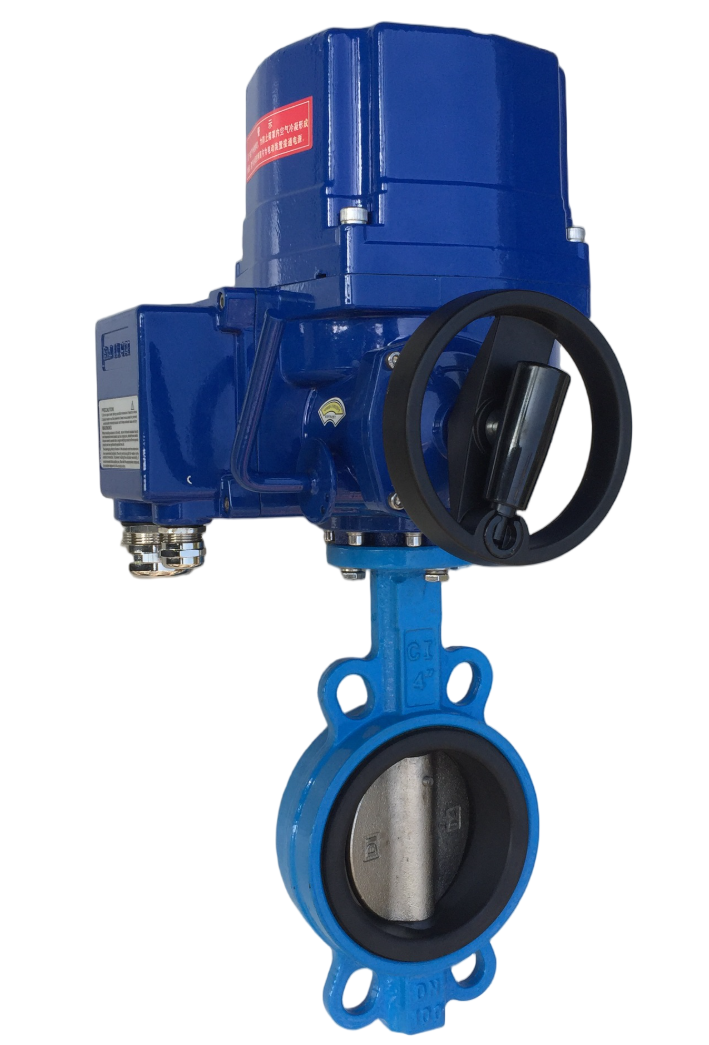

This motorized wafer soft seal butterfly valve adopts high quality rubber soft sealing structure to achieve bidirectional zero leakage with flexible and reliable fitting. The ultra-thin lightweight wafer design saves installation space and reduces construction costs. Equipped with a stable electric actuator, it supports precise on/off and modulating control for automatic pipeline operation. It is widely used in water supply, drainage, HVAC and general industrial fluid systems.
Advantages
Premium soft seal provides flexible fitting and excellent tightness. It adapts to pipeline deviation and pressure fluctuation to achieve reliable bidirectional zero leakage.
Ultra-light wafer structure saves installation space, reduces pipeline load and construction cost with easy disassembly and maintenance.
Stable electric operation supports local and remote automatic control and proportional regulation, suitable for various general water supply and ventilation pipeline systems.
Packing
Standard export wooden case packaging
Application Scenarios

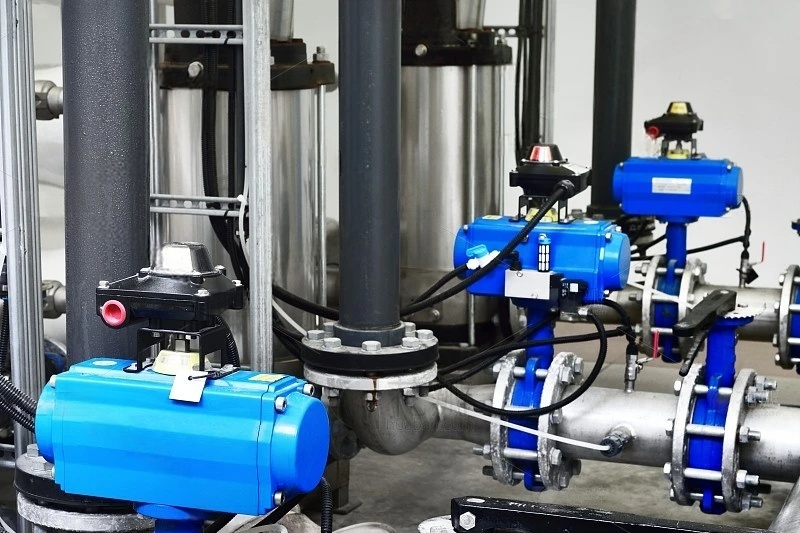

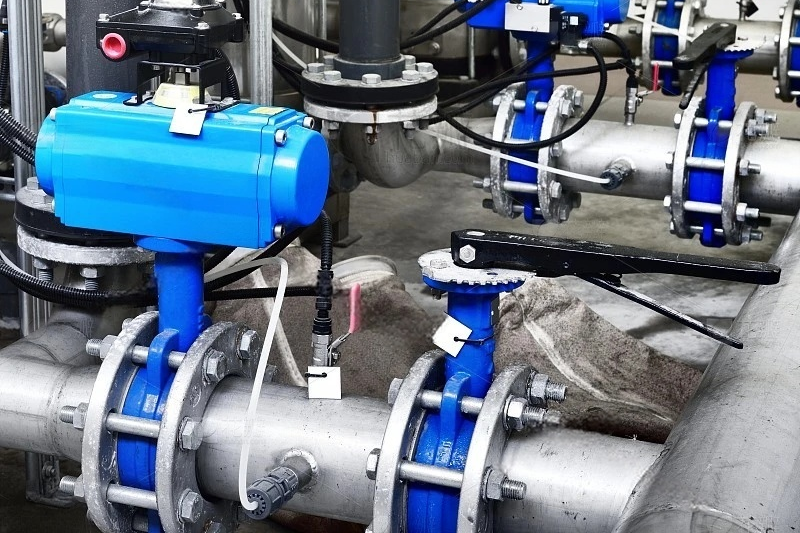

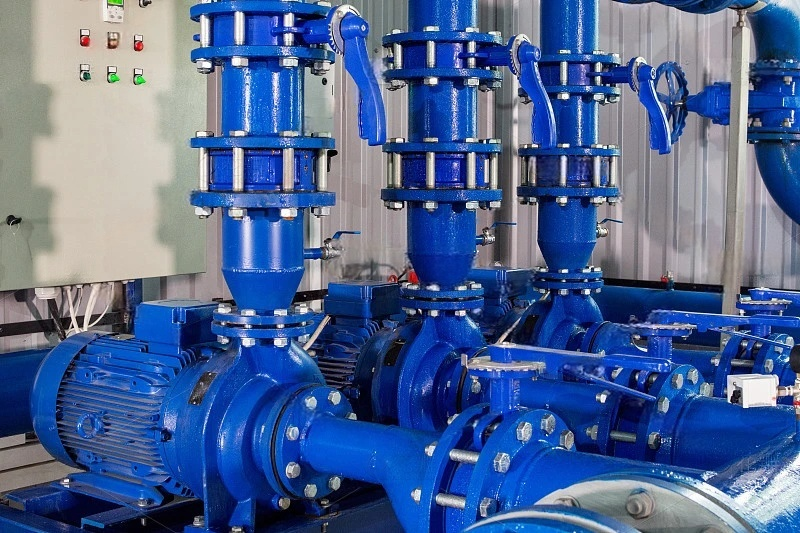

The electric wafer butterfly valve widely used in municipal water supply and drainage, central air conditioning HVAC systems, fire water supply, sewage treatment, pure water process, ventilation and industrial circulating water pipelines.

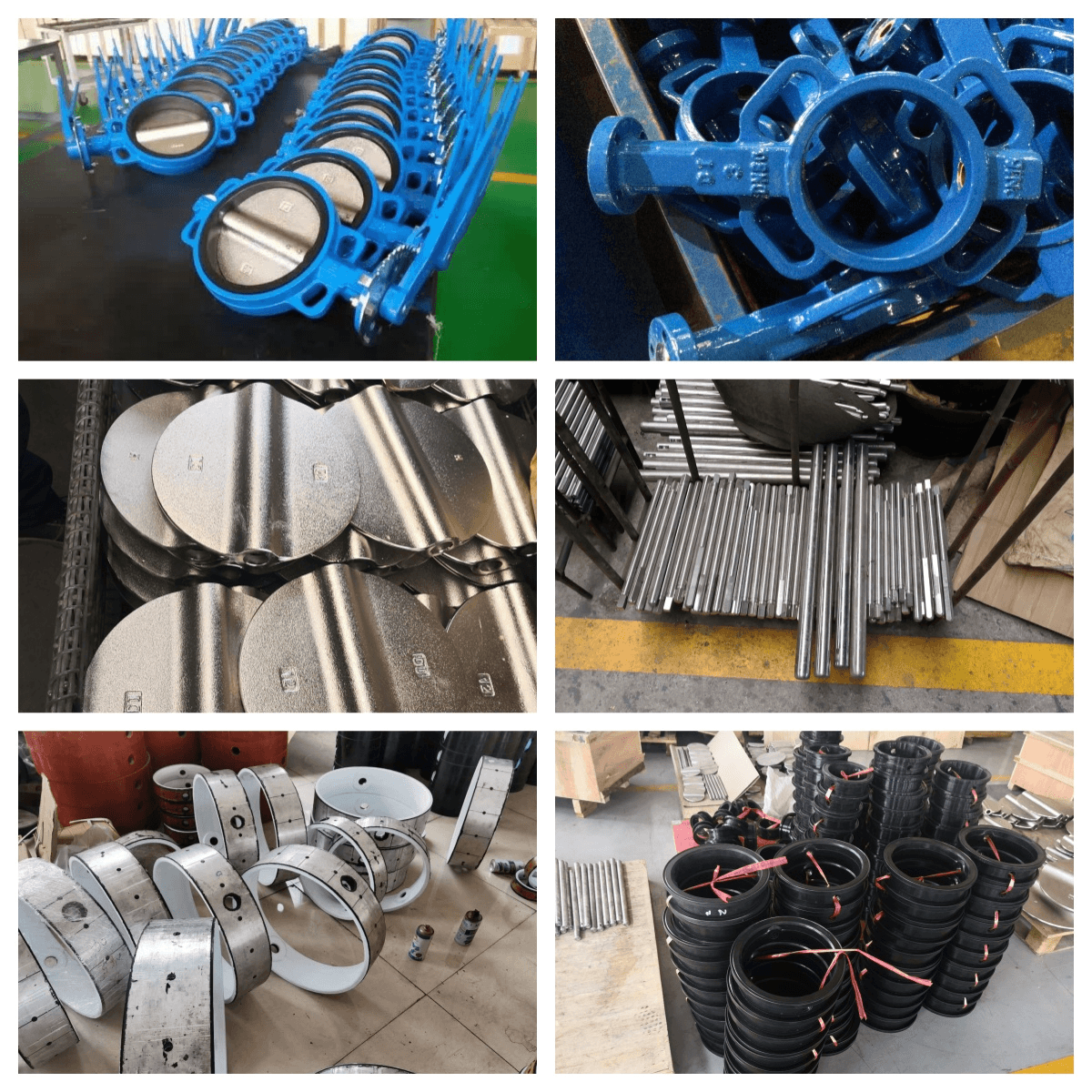

Material Specifications
| Body | Disc | Stem | Bushing | Seat | |||||
| Name | Code | Name | Code | Name | Name | Name | Code | ℃ Working temp | |
| Cast iron | Z | Plated ductile iron | B1 | Stainless steel | Lubrized bronze | NR | X1 | -20~+85℃ | |
| Ductile iron | Q | Aluminum bronze | B2 | Hypalon | X2 | -23~+121℃ | |||
| Aluminum bronze | T | ZG1Cr18Ni9Ti Stainless steel | B3 | EPDM | X3 | -23~+121℃ | |||
| ZG1Cr13Ni9Ti Stainless steel | P | Titanium steel | B4 | Neoprene | X4 | -7~+93℃ | |||
| CF8M Stainless steel | R | CF8M Stainless steel | B5 | NBR | X5 | -23~+100℃ | |||
| Carbon steel | C | Carbon steel | B6 | Wear-resistant rubber | X6 | -10~+100℃ | |||
| CF8 Stainless steel | CF8 Stainless steel | B7 | VITON | X7 | -23~+200℃ | ||||
| Hear-resistant rubber | X9 | -23~+135℃ | |||||||
| PTFE | F4 | +10~+150℃ | |||||||

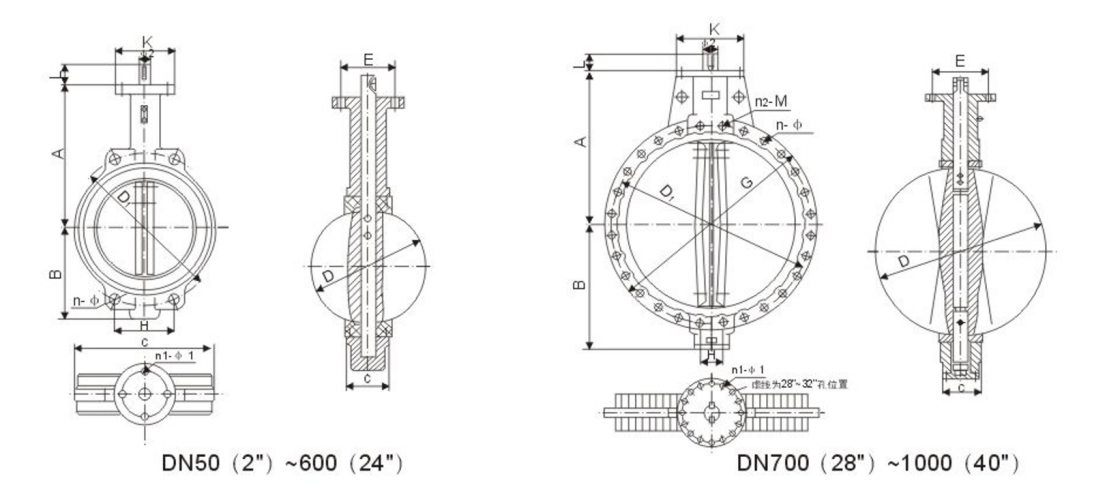

Dimensions
| DN | A | B | C | D | L | H | D1 | n- φ | K | E | n1- φ 1 | φ 2 | G | n2-M | |
| mm | inch | ||||||||||||||
| 50 | 2” | 161 | 80 | 42 | 52.9 | 32 | 84.84 | 120 | 4- φ 23 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 118 | - |
| 65 | 2.5" | 175 | 89 | 44.7 | 64.5 | 32 | 96.2 | 136.2 | 4- φ 26.5 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 137 | - |
| 80 | 3” | 181 | 95 | 45.2 | 78.8 | 32 | 61.23 | 160 | 8- φ 18 | 77 | 57.15 | 4- φ 6.7 | 12.6 | 143 | - |
| 100 | 4” | 200 | 114 | 52.1 | 104 | 32 | 70.80 | 185 | 4- φ 24.5 | 92 | 69.85 | 4- φ 10.3 | 15.77 | 156 | - |
| 125 | 5" | 213 | 127 | 54.4 | 123.3 | 32 | 82.28 | 215 | 4- φ 23 | 92 | 69.85 | 4- φ 10.3 | 18.92 | 190 | - |
| 150 | 6" | 226 | 139 | 55.8 | 155.6 | 32 | 91.08 | 238 | 4- φ 25 | 92 | 69.85 | 4- φ 10.3 | 18.92 | 212 | - |
| 200 | 8" | 260 | 175 | 60.6 | 202.5 | 45 | 112.89 76.35 | 295 | 4- φ 25 4- φ 23 | 115 | 88.9 | 4- φ 14.3 | 22.1 | 268 | - |
| 250 | 10" | 292 | 203 | 65.6 | 250.5 | 45 | 92.40 | 357 | 4- φ 29 | 115 | 88.9 | 4- φ 14.3 | 28.45 | 325 | - |
| 300 | 12" | 337 | 242 | 76.9 | 301.6 | 45 | 105.34 | 407 | 4- φ 29 | 140 | 107.95 | 4- φ 14.3 | 31.6 | 403 | - |
| 350 | 14" | 368 | 267 | 76.5 | 333.3 | 45 | 91.11 | 467 | 4- φ 30 | 140 | 107.95 | 4- φ 14.3 | 31.6 | 436 | - |
| 400 | 16’ | 400 | 309 | 86.5 | 389.6 | 51.2 72 | 100.47 102.42 | 515 525 | 4- φ 26 4- φ 30 | 197 | 158.75 | 4- φ 20.6 | 33.15 | 488 | - |
| 450 | 18" | 422 | 328 | 105.6 | 440.51 | 51.2 72 | 88.39 91.51 | 565 585 | 4- φ 26 4- φ 30 | 197 | 158.75 | 4- φ 20.6 | 38 | 539 | - |
| 500 | 20" | 480 | 361 | 131.8 | 491.6 | 64.2 82 | 95.99 101.68 | 620 650 | 4- φ 26 4- φ 33 | 197 | 158.75 | 4- φ 20.6 | 41.15 | 593 | - |
| 600 | 24" | 562 | 459 | 152 | 592.5 | 70.2 82 | 113.42 120.46 | 725 770 | 20- φ 30 20- φ 36 | 276 | 215.9 | 4- φ 22.2 | 50.65 | 816 | - |
| 700 | 28" | 624 | 520 | 163 | 695 | 66 82 | 109.65 840 | 840 | 24- φ 30 20- φ 36 | 300 | 254 | 8- φ 18 | 55 63.35 | 895 | 4-M33 |
| 800 | 32" | 672 | 591 | 188 | 794.7 | 66 82 | 124 950 | 950 | 24- φ 33 24- φ 39 | 300 | 254 | 8- φ 18 | 55 63.35 | 1015 | - |
| 900 | 36" | 720 | 656 | 203 | 864.7 | 118 | 117.57 | 1050 | 24- φ 33 | 300 | 254 | 8- φ 18 | 75 | 1115 | 4-M30 |
| 1000 | 40" | 800 | 721 | 216 | 965 | 142 | 129.89 | 1160 | 24- φ 36 | 300 | 254 | 8- φ 18 | 85 | 1230 | 4-M33 |
Frequently Asked Questions (FAQ)
This motorized wafer butterfly valve is manufactured in strict compliance with the EN593 international standard for industrial valves.
The standard temperature range is -20°C < T < 120°C. Specific working temperature limits depend on the selected seat material (e.g., EPDM, NBR, VITON, or PTFE).
The valve uses a high-quality, flexible soft-sealing elastomer structure that adapts to minor pipeline deviations and pressure fluctuations, guaranteeing reliable bidirectional zero leakage.
The ultra-thin wafer structure reduces total valve weight and size, saving installation space, lowering pipeline loading, and significantly reducing construction and shipping costs.
Yes, the installed electric actuator supports both local operation and automated remote control, including precise on/off switching and proportional modulating control.
