What types of valves does KR Valve manufacture?

KR Valve manufactures more than 500 valve products, including wafer, lug, concentric and double eccentric butterfly valves, resilient seat, metal seat and knife gate valves, dual disc, swing, lift and ball type check valves, ball valves, hydraulic water control valves such as 200X pressure reducing valves and 100X remote float valves, and Y type strainers.

Which international standards do KR valves follow?

Our range covers common international standards such as DIN F5 face-to-face gate valves, BS5163 resilient seat gate valves, BS5153 dual disc check valves, ANSI flanged strainers and PN16 pressure rated water control valves. Non-standard designs can be engineered to your drawings.

Do you offer OEM valve manufacturing?

Yes. In addition to our own KR brand, we provide OEM services, including customer branding, specified body and seat materials, actuation options and project-specific packaging.

Should I choose a wafer or a lug butterfly valve?

Wafer butterfly valves are lighter and more economical and are clamped between two flanges, making them ideal for standard water and HVAC lines. Lug butterfly valves have threaded lugs that allow dead-end service and removal of downstream piping without draining the whole line, which suits maintenance-critical systems.

How is valve quality controlled before shipment?

Every process is inspected from raw material to finished product, and 100% of finished valves are inspected before dispatch. Production plans and lead times are defined upfront through full-chain supply control.

Custom Butterfly Valve Ss Factories & Factory

High-Precision Stainless Steel Flow Control Solutions: Engineering Whitepaper, Chinese Industrial Supply Chain Metrics & Enterprise Procurement Standards

Featured Engineering Components

Industrial Valves & Custom Flow Solutions

Direct from premier manufacturing hubs — certified for high pressure, severe media, and sanitary applications.

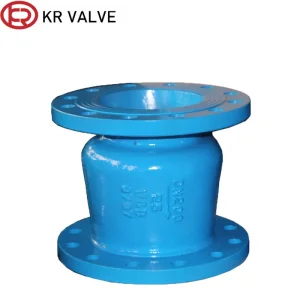

OEM Ductile iron GGG40 silent check valve soft seal Suppliers, Manufacturer

Request Technical Quote

Custom Cast iron bronze metal seat hard seal gate valve Suppliers, Manufacturers

Request Technical Quote

OEM China PTFE Seat Butterfly Valve Suppliers - D71X Series DN40-DN600 Factory Direct

Request Technical Quote

OEM Ductile iron hydraulic ball remote float valve Supplier, Suppliers

Request Technical Quote

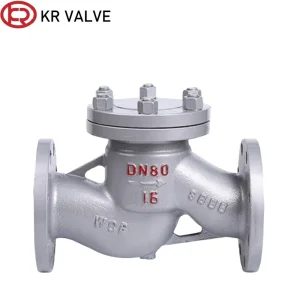

Wholesale WCB one way valve lift type 3 4 shut off valve Manufacturers

Request Technical Quote

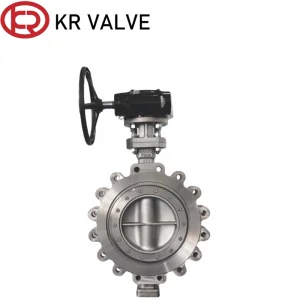

OEM Three eccentric butterfly valve metal to metal lug type Suppliers

Request Technical Quote

Wholesale China Suppliers Factory Non Rising Stem EPDM Soft Seal Gate Valve DIN F5 Standard, DN40-DN600, PN6-PN25 Suppliers, Manufacturer

Wholesale Non Rising Stem EPDM Soft Seal Gate Valve DIN F5 Standard

Request Technical Quote

Wholesale Ductile Iron Wafer Butterfly Valve with Gear Box

Request Technical Quote

Engineering Whitepaper

Custom Stainless Steel (SS) Butterfly Valves: Technical Blueprint

A comprehensive analysis of material science, structural kinematics, and manufacturing excellence in specialized fluid control systems.

In modern process industries—spanning chemical processing, offshore oil & gas, municipal desalination, and pharmaceutical bioprocessing—the selection of high-performance quarterly-turn valves is a critical operational decision. Modern Custom Stainless Steel (SS) Butterfly Valves represent a technological quantum leap over conventional cast iron and carbon steel alternatives. Engineered with specialized alloys such as Austenitic Stainless Steel (CF8/SS304, CF8M/SS316), Duplex (2205), and Super Duplex (2507), these valve assemblies deliver exceptional strength-to-weight ratios, extreme chemical immunity, and extended operational lifespans under severe thermodynamic stress.

Information Gain Insights: Unlike generic valve manufacturing, specialized Chinese custom SS butterfly valve factories utilize advanced investment casting (silica sol process) combined with 5-axis CNC machining centers. This delivers geometric tolerances within ±0.01mm, eliminating micro-cavitation and drastically lowering operating torque requirements across high-differential-pressure cycles.

Metallurgical Breakdown & Alloy Grade Selection

Specifying the correct stainless steel grade is paramount to avoiding localized pitting, crevice corrosion, and stress corrosion cracking (SCC). Custom factories evaluate media chemistry, chloride concentrations, operating temperatures, and pressure thresholds according to ASME B16.34 and API 609 standards.

Material Grade	UNS / EN Standard	Chemical Composition Highlights	Corrosion Resistance & Ideal Applications
CF8 (SS304)	UNS J92600 / 1.4308	18% Cr, 8% Ni	Standard industrial water, HVAC systems, food & beverage processing, mild chemical lines. Cost-effective base grade.
CF8M (SS316)	UNS J92900 / 1.4408	16-18% Cr, 10-14% Ni, 2-3% Mo	Added Molybdenum provides superior protection against chlorides, marine environments, acids, and pharmaceutical media.
CF3M (SS316L)	UNS J92800 / 1.4404	Low Carbon (<0.03%), 16-18% Cr, 10-14% Ni	Prevents carbide precipitation during welding. Essential for high-purity sanitary applications and welded piping networks.
Duplex 2205	UNS S31803 / 1.4462	22% Cr, 5% Ni, 3% Mo, 0.16% N	Dual-phase austenitic-ferritic microstructure. Double the yield strength of SS316; highly resistant to chloride stress cracking in seawater desalination.
Super Duplex 2507	UNS S32750 / 1.4410	25% Cr, 7% Ni, 4% Mo, 0.27% N	PREN > 42. Engineered for extreme offshore oil platforms, hot concentrated acids, and aggressive chemical processing plants.

Supply Chain Leadership

Why China Is the Global Hub for Custom SS Butterfly Valve Manufacturing

Examining the structural, metallurgical, and technological advantages that empower Chinese valve factories to supply global Tier-1 EPC projects.

Full-Chain Metallurgical Integration

Chinese valve manufacturing hubs (such as Wenzhou, Tianjin, and Jiangsu) house fully integrated ecosystems—from raw foundry sand and silica-sol investment casting to precision CNC tooling and automated testing labs. This vertical integration drastically reduces lead times and logistics costs.

Advanced Precision & Automation

By deploying high-precision multi-axis CNC machining, automated robotic welding for Stellite/SS hard-facing, and optical coordinate measuring machines (CMM), top Chinese factories achieve strict zero-leakage tolerances conforming to API 598 and ISO 5208 Rate A standards.

Agile OEM/ODM Customization

China's engineering talent excels at bespoke modifications. Whether modifying face-to-face dimensions (ISO 5752, API 609, DIN 3202), engineering custom shaft extensions for cryogenic services, or tailoring ISO 5211 direct-actuator mounting pads, Chinese suppliers deliver fast turnaround times.

Custom Engineering & Kinematics

Structural Configurations of Stainless Steel Butterfly Valves

Matching offset geometry, seating mechanics, and connection styles to your application's exact thermodynamic profile.

Concentric (Zero Offset) SS Valves

The stem passes through the centerline of the disc and seat bore. Featuring resilient rubber (EPDM, NBR, FKM) or virgin PTFE/RPTFE liners encapsulated within an SS304/SS316 body. Best suited for low-pressure chemical, water treatment, and food-grade lines where economic bubble-tight shut-off is required.

Double Offset (High Performance)

The stem is offset from the center of the valve seat and body. This creates a camming action during actuation, lifting the disc off the seat immediately upon opening. Reduces seat friction, extends seal life, and supports operating temperatures up to 260°C with PTFE/RPTFE seats.

Triple Offset (TOV) Metal-to-Metal

Incorporates a third angular offset in the sealing cone geometry. Eliminates all friction throughout the 90° stroke. Equipped with laminated stainless steel and graphite seal rings or solid Stellite hard-faced seats, TOVs deliver bi-directional zero-leakage under extreme temperatures (-196°C to +600°C) and pressure ratings up to ANSI Class 600.

Macro Industry Applications

Engineered Solutions for Severe Service Environments

How custom stainless steel butterfly valves safeguard modern industrial processes across world-scale infrastructure.

Chemical & Petrochemical Processing

Handling aggressive acids, organic solvents, and toxic vapors requires CF8M/CF3M bodies equipped with virgin PTFE seats or metal-to-metal seals. Custom factories supply fire-safe certified designs (API 607 / ISO 10497) with anti-static stem grounding and fugitive emission packing (ISO 15848-1) to ensure zero environmental discharge.

Seawater Desalination (SWRO)

High chloride content in seawater reverse osmosis plants rapidly degrades low-grade metals. Custom Duplex 2205 and Super Duplex 2507 butterfly valves withstand extreme pitting and high pressures (up to 80 bar) on high-pressure pump discharge lines, offering total resistance to bio-fouling and erosion.

Sanitary Hygienic & Biopharma

For food processing, dairy, and biotechnology, custom factories manufacture polished SS316L tri-clamp butterfly valves with internal surface roughness Ra < 0.4µm. Paired with FDA-compliant EPDM/Silicone seats, these valves eliminate bacterial traps and support automated CIP (Clean-In-Place) and SIP (Sterilize-In-Place) operations.

100%

Pressure Testing (API 598)

Ra < 0.4µm

Sanitary Polishing

Class VI

Bubble-Tight Sealing

ANSI 600

Max Pressure Rating

Procurement Framework & Industry Trends

Global Buyers' Technical Evaluation Criteria

How enterprise procurement teams assess custom stainless steel valve factories to mitigate risk and guarantee project delivery.

Procuring custom stainless steel butterfly valves for major EPC projects requires rigorous vendor audit protocols. Enterprise buyers from Europe, North America, and the Middle East look beyond price per unit, evaluating comprehensive quality assurance mechanisms, metallurgical traceability, and technological adaptability.

1. Quality Management & Material Traceability

Leading Chinese factories provide EN 10204 3.1 Material Test Certificates (MTC) for all heat numbers of pressure-retaining parts (body, disc, stem). Positive Material Identification (PMI) testing using handheld XRF analyzers is conducted on-site to verify exact Nickel, Chromium, and Molybdenum content before machining begins.

2. Industry 4.0 & Smart Actuation Integration

Modern plant automation demands seamless integration between physical valves and digital control systems. Custom SS butterfly valve factories equip products with standardized ISO 5211 mounting pads and high-precision shaft splines, enabling direct connection of smart electric or pneumatic actuators with HART, Modbus, or PROFIBUS protocols for real-time diagnostic monitoring.

3. Future Market Trends: Decarbonization & Zero Emissions

As international environmental regulations tighten (such as the EU Green Deal and EPA guidelines), valve manufacturers are forced to minimize fugitive VOC and greenhouse gas emissions. Premium Chinese factories are upgrading stem sealing systems to dynamic live-loaded PTFE packing sets and flexible graphite seals certified to ISO 15848-1 Class AH, guaranteeing leak-free operation over tens of thousands of cycles.

Technical Q&A

Frequently Asked Questions by Global Valve Buyers

In-depth answers to critical engineering, manufacturing, and logistics questions.

What is the difference between CF8 and SS304 when specifying custom butterfly valves?

CF8 is the ASTM cast equivalent of wrought 304 stainless steel. While SS304 refers to forged or rolled bar stock/plate materials, CF8 designates investment or sand cast body and disc components. Metallurgically, CF8 contains a small percentage of ferrite (typically 5% to 15%) within its austenitic matrix to prevent hot cracking during casting and improve yield strength, while maintaining equivalent corrosion resistance in general industrial applications.

When should I choose a Triple Offset SS Butterfly Valve over a Double Offset design?

You should select a Triple Offset Valve (TOV) when operating under severe service conditions involving temperatures above 260°C (where soft PTFE/RPTFE seats fail), pressure ratings exceeding PN40 / ANSI Class 300, or when handling abrasive slurry and thermal cycling media. TOVs feature all-metal friction-free seating that achieves bi-directional zero-leakage (ANSI Class VI) without organic soft components.

How do Chinese custom valve factories ensure quality control for international projects?

Top Chinese factories implement a total quality management system certified to ISO 9001, API 6D, and CE/PED 2014/68/EU standards. Quality control steps include 100% PMI material verification, non-destructive testing (NDT) such as Radiographic Testing (RT) and Dye Penetrant Inspection (PT) on castings, 100% hydrostatic and pneumatic shell/seat pressure testing per API 598, and full EN 10204 3.1 documentation for every order.

What custom options are available for specialized process industries?

Customization options include tailored body designs (Wafer, Lug, Double Flanged, Butt-weld), special alloy body/disc materials (Monel, Hastelloy, Titanium, Duplex), customized extended bonnets for cryogenic service (-196°C) or high-temperature insulation, polished internal surfaces (Ra < 0.4µm) for pharmaceutical lines, and custom face-to-face dimensions to replace obsolete legacy valves.

What are the lead times for custom stainless steel butterfly valves manufactured in China?

Standard OEM/ODM orders using available patterns typically require 3 to 4 weeks for casting, machining, assembly, and testing. For fully custom engineered-to-order (ETO) valves requiring new casting patterns, finite element analysis (FEA), and specialized alloy sourcing, typical lead times range from 6 to 8 weeks, supported by expedited air or sea freight options.
