Product Description
| Valve Type: | Lifting check valve | Structure: | Lift type |
| Standard: | EN/API | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | -20°C < T < 120°C | Operation: | Self-starting |

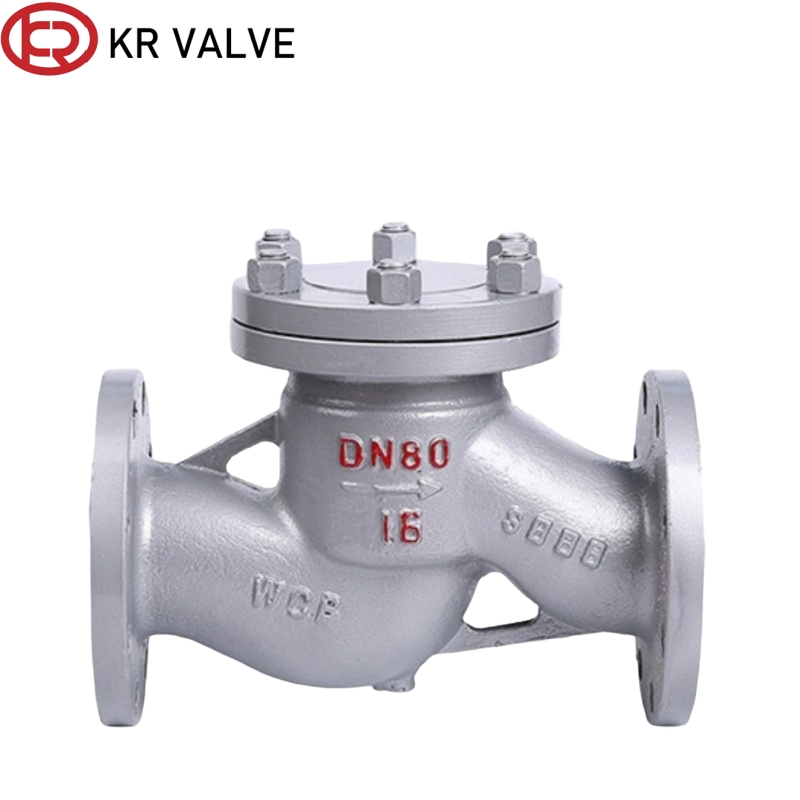

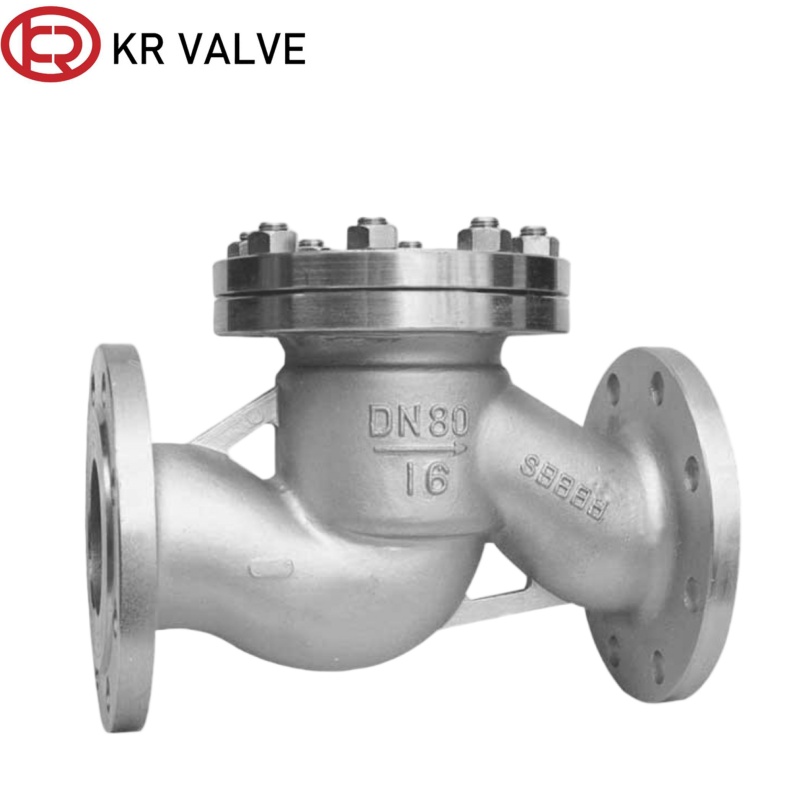

This WCB lift check valve is integrally cast from ASTM A216 carbon steel for high temperature and pressure resistance up to 425℃. Vertical guided disc realizes automatic backflow prevention with metal or PTFE sealing options. Flanged connection offers stable tight shutoff under medium-high pressure. Cost-effective for steam, oil, hot water and gas pipelines, widely used in power plant, heating and petrochemical industrial systems.
1. High-Temperature Steel Body: ASTM A216 WCB cast carbon steel of this NRV valve can withstand high temperature up to 425℃, superior to ductile iron, perfectly for steam, boiler feed water and thermal pipeline systems.
2. Fast & Tight Shutoff: Vertically guided disc realizes fast and tight shutoff, avoiding pump reversal and pipeline pressure loss, greatly protecting pumps and heat exchangers from backflow damage.
3. Cost-Effective Performance: Integral casting covers full size range with competitive cost, stable long-term performance for mass industrial heating and petrochemical projects.
Standard export wooden case packaging
This backflow preventer valve lifting type is widely used in power plant boiler feed water pipelines, thermal steam circulation systems, petrochemical oil delivery lines, heat transfer oil stations, high-temperature HVAC circulating water, compressed air pipelines and industrial hot water pump rooms.
| Body, bonnet, disc, rocker, guide sleeve | Pin | Gasket | Sealing surface | Working temperature (°C) | Applicable medium |
|---|---|---|---|---|---|
| WCB | 20Cr13 |
1Cr13/PTFE Enhanced Flexible graphite 1Cr13/Flexible Graphite S.S/Acid-proof asbestos Tooth profile gasket |
13Cr STL PTFE With body material Nylon |
≤425 | Water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea, etc. |
| WC1 | ≤450 | ||||
| WC6 | ≤540 | ||||
| WC9 | ≤570 | ||||
| C5 C12 | ≤550 | ||||
| CF8 | 304 | ≤600 | |||
| CF3 | 304L | ||||
| CF8M | 316 | ||||
| CF3M | 316L |
| DN (mm) | L | D | D1 | D2 | b-f | Z-φd | H |
|---|---|---|---|---|---|---|---|
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-φ14 | 77 |
| 20 | 150 | 105 | 75 | 58 | 18-2 | 4-φ14 | 77 |
| 25 | 160 | 115 | 85 | 68 | 18-2 | 4-φ14 | 80 |
| 32 | 180 | 140 | 100 | 78 | 18-2 | 4-φ18 | 85 |
| 40 | 200 | 150 | 110 | 88 | 18-3 | 4-φ18 | 95 |
| 50 | 230 | 165 | 125 | 102 | 18-3 | 4-φ18 | 105 |
| 65 | 290 | 185 | 145 | 122 | 18-3 | 8-φ18 | 120 |
| 80 | 310 | 200 | 160 | 138 | 20-3 | 8-φ18 | 130 |
| 100 | 350 | 220 | 180 | 158 | 20-3 | 8-φ18 | 140 |
| 125 | 400 | 250 | 210 | 188 | 22-3 | 8-φ18 | 155 |
| 150 | 480 | 285 | 240 | 212 | 22-3 | 8-φ22 | 180 |
| 200 | 600 | 340 | 295 | 268 | 24-3 | 12-φ22 | 215 |
| 250 | 730 | 405 | 355 | 320 | 26-3 | 12-φ26 | 260 |
| 300 | 850 | 460 | 410 | 378 | 28-4 | 12-φ26 | 315 |
It automatically prevents media backflow in pipelines under high temperature and pressure. The vertical guided disc opens under forward pressure and closes tightly when flow stops or reverses.
The WCB cast carbon steel body can safely operate at working temperatures up to 425°C, making it suitable for steam, boiler feed water, and thermal oil systems.
Lift check valves are ideally installed in horizontal pipelines. For vertical installation, the flow direction must be upwards so gravity assists in closing the disc correctly.
Our lift check valves comply with international EN and API standards, utilizing precise investment casting to achieve zero-leakage performance.
We offer metal-to-metal seating (such as 13Cr or STL) for high temperatures and PTFE or Nylon soft sealing options for lower temperature tight-shutoff applications.
